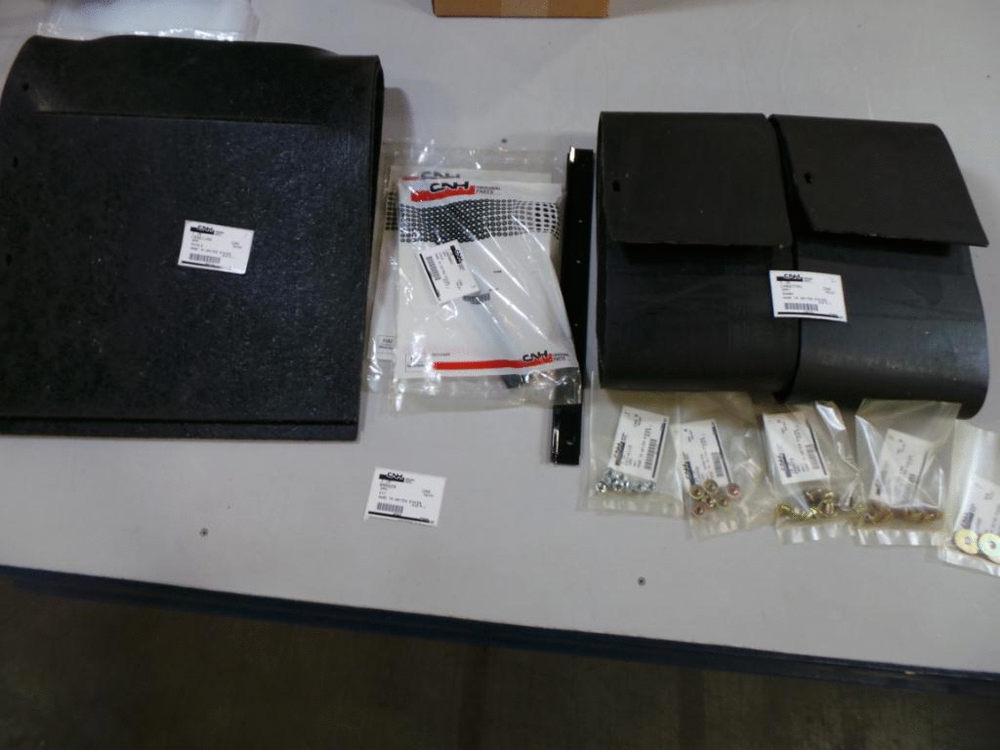

Запчасти Case IH 2388 (09F-07[03]) - KIT SHIELD CHAFF (19) - STRAW SPREADER & CHOPPER

1

B95629

KIT

Incl 2 - 10

1шт.

2

103211A2

SHIELD

Spreader Side

2шт.

3

140277A1

GUARD

Spreader Vertical

2шт.

4

140286A1

STRIP

Spreader Shield

2шт.

5

140287A1

STRIP

Spreader Shield

2шт.

6

231-4115

NUT,5/16"-18, GB

8шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

8

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

6шт.

10

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

8шт.
