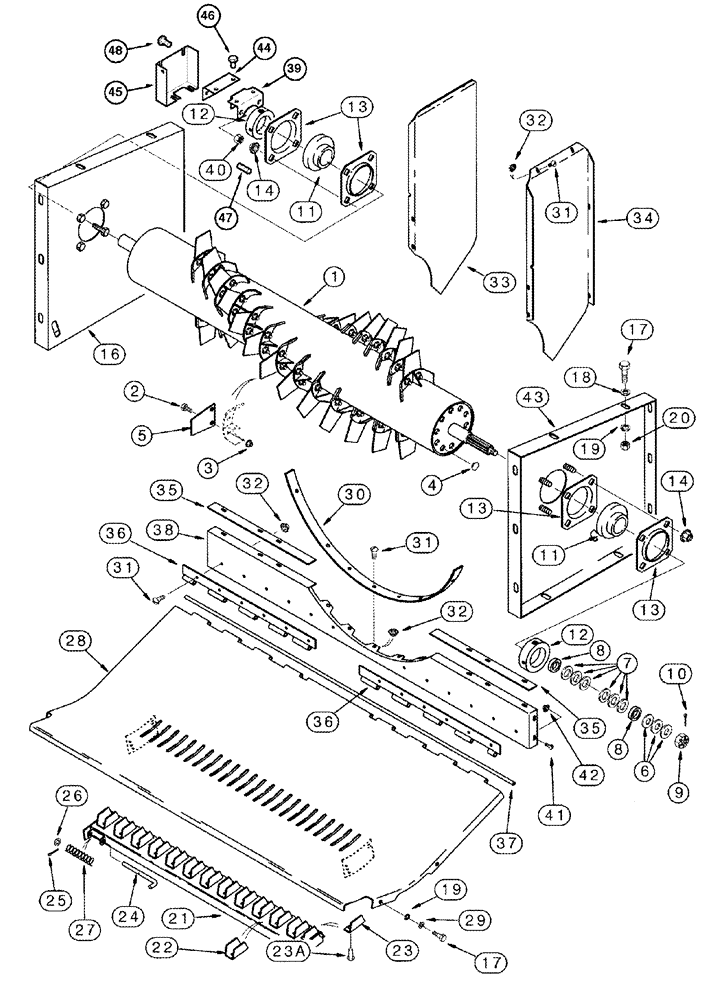

Запчасти Case IH 2388 (09F-06) - STRAW CHOPPER - ROTOR AND CONCAVE BSN JJC0268799 (19) - STRAW SPREADER & CHOPPER

1

185158C91

ROTOR

Includes 2 - 4

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

18шт.

5

197124C1

PACKAGE

Set of 2

14шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

2шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

6шт.

8

294604A1

SPACER

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

2шт.

11

84165643

BEARING HOUSING

Greasable Bearing

2шт.

12

455112R11

COLLAR

2шт.

13

1307583C1

FLANGED BEARING

If Used

4шт.

13

663562R1

FLANGE

If Used

4шт.

13

241577A1

FLANGE

If Used

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

16

144700A1

SUPPORT

LH

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

19шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

185135C91

BAR

Includes 22 - 23A

1шт.

22

1302763C1

KNIFE

12шт.

23

1302764C1

KNIFE

1шт.

23a

104236

RIVET,4.76mm OD x 15.88mm L

26шт.

24

186736C3

ROD

2шт.

25

432-616

COTTER PIN,3/32" x 1"

2шт.

26

495-51041

WASHER,3/8"

1шт.

27

540815R2

SPRING

2шт.

28

181147C3

PLATE

1шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

30

182950C1

SUPPORT

Rear

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

29шт.

32

231-5146

FLANGE NUT,3/8"-16

29шт.

33

182948C2

DEFLECTOR

LH

1шт.

34

182949C2

DEFLECTOR

RH

1шт.

35

182895C1

FILLER

2шт.

36

182893C1

HINGE

2шт.

37

182980C1

ROD,11.11mm OD x 1556mm L

1шт.

38

182931C1

SUPPORT

Rear

1шт.

39

144706A4

SUPPORT

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

10шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

43

144701A1

SIDE PLATE

Rotor, RH

1шт.

44

248583A1

SUPPORT

Sensor, Outer, Australia Only

1шт.

45

181208C3

SUPPORT

Sensor, Australia Only

1шт.

46

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

Australia Only

2шт.

47

425-104

NUT,1/4"-20, Cl 5

Australia Only

2шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

Australia Only

2шт.
