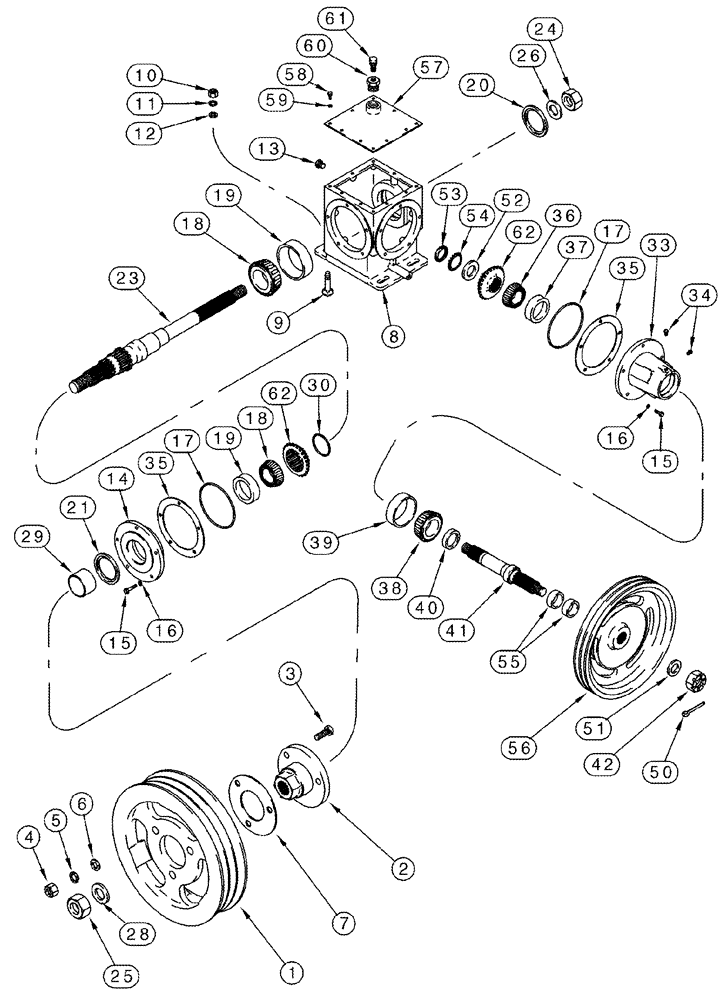

Запчасти Case IH 2388 (09F-05) - STRAW CHOPPER - HOUSING, GEAR (19) - STRAW SPREADER & CHOPPER

419764A1

GEARBOX

Includes 8, 13 - 23, 29 - 41, 52 - 54, 57 - 62

1шт.

419764A1R

REMAN-REDUCTION UNIT

2388 CASE IH AXIAL-FLOW COMBINE (NA) BSN JJC0276540 (1/98-8/04)

1шт.

419764A1C

CORE-REDUCTION UNIT

Return Number

1шт.

1

181271C1

PULLEY

3 Groove Pulley, Shown, Serial Range: -JJC0270499

1шт.

1

364320A2

PULLEY,384.8mm OD

Drive, 15 OD, 5 Groove Pulley, Not Illustrated, Start Serial: JJC0270500

1шт.

2

181211C1

HUB

1шт.

3

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

3шт.

4

429-1110

NUT,5/8"-18, G8

3шт.

5

492-21062

LOCK WASHER,5/8"

3шт.

6

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

3шт.

7

181363C1

SHIM

.06"

1шт.

8

181278C1

BEARING HOUSING

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

12

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

6шт.

13

86568834

PLUG,1/4" - 18 NPT

2шт.

14

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

16

492-11038

LOCK WASHER,3/8"

10шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

18

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

2шт.

19

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

2шт.

20

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Front

1шт.

21

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Rear

1шт.

23

184394C3

SHAFT

Three Splined, Serial Range: -JJC0270499

1шт.

23

411043A1

SHAFT

, Start Serial: JJC0270500

1шт.

24

232-41316

NUT,1"-8, GC

1шт.

25

231-41120

NUT,1 1/4"-7, GB

1шт.

26

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

28

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

1шт.

29

181269C1

SPACER

1шт.

1315284C1

PACKAGE

Includes 30

1шт.

30

181255C1

SNAP RING

Ring Snap, 2.59 mm (.102")

1шт.

30

181256C1

RING, SNAP

RING SNAP 2.67 mm (.105")

1шт.

30

181257C1

RING, SNAP

RING SNAP 2.74 mm (.108")

1шт.

30

181258C1

RING, SNAP

RING SNAP 2.82 mm (.111")

1шт.

30

181259C1

RING, SNAP

RING SNAP 2.89 mm (.114")

1шт.

30

181260C1

RING, SNAP

RING SNAP 2.97 mm (.117")

1шт.

30

181261C1

RING, SNAP

RING SNAP 3.05 mm (.120")

1шт.

30

181262C1

RING, SNAP

RING SNAP 3.12 mm (.123")

1шт.

30

181263C1

RING, SNAP

RING SNAP 3.20 mm (.126")

1шт.

30

181264C1

RING, SNAP

RING SNAP 3.28 mm (.129")

1шт.

30

181265C1

RING, SNAP

RING SNAP 3.35 mm (.132")

1шт.

30

181266C1

RING, SNAP

RING SNAP 3.43 mm (.135")

1шт.

33

191245C2

HUB

1шт.

34

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

195484C2

SHIM KIT

Includes 35

1шт.

35

NSS

NOT SOLD SEPARAT

Shim .005

4шт.

35

NSS

NOT SOLD SEPARAT

Shim .007

4шт.

35

NSS

NOT SOLD SEPARAT

Shim .020

2шт.

36

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

1шт.

37

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

38

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8" ID

1шт.

39

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2" OD

1шт.

40

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

1шт.

41

181195C1

SHAFT

1шт.

42

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

50

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

51

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

52

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

1шт.

53

54-2006

BEARING LOCK NUT,Bearing, 1.1811" Bore

TN-06

1шт.

54

55-2006

BEARING WASHER,Type TW-106

1шт.

55

181156C2

SPACER

Spacer

2шт.

56

1315264C1

PULLEY

Chopper Drive & Driven Dual, 7" OD, 14" OD

1шт.

57

181281C1

COVER

1шт.

58

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

59

492-11031

LOCK WASHER,5/16"

10шт.

60

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

1шт.

61

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

188814C1

BEVEL GEAR

Set, Cut Bevel, If Used, Includes 62

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

243333A1

BEVEL GEAR

Forged Bevel, If Used, Includes 62

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.

62

NSS

NOT SOLD SEPARAT

Gear

1шт.
