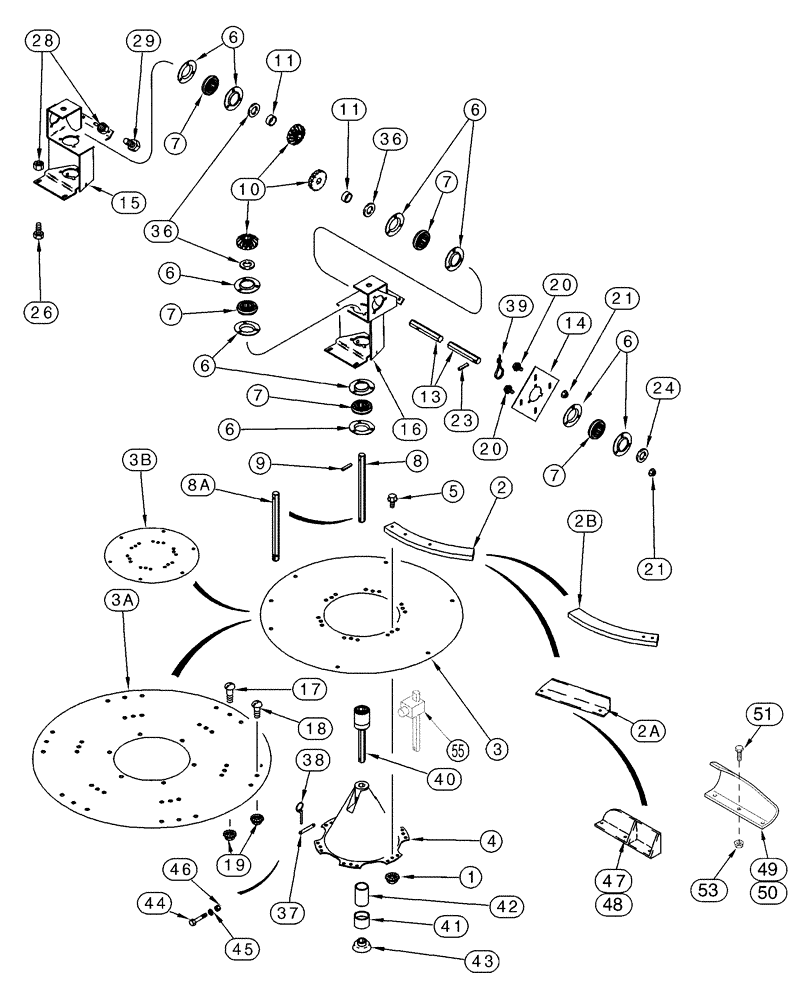

Запчасти Case IH 2388 (09F-01) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

Used with 2, 2B, 3, 3B

24шт.

2

194197C2

STRIP,50mm W x 363mm L

, Serial Range: -JJC0270499

12шт.

With Straw Spreader

1шт.

2a

103170A2

BAT

12шт.

With Straw and Chaff Spreader

1шт.

2b

1302790C1

STRIP

Rice

12шт.

With Straw Spreader

1шт.

3

192254C1

DISC

Grain, Serial Range: -JJC0270499

2шт.

With Straw Spreader

1шт.

3a

140189A1

DISC

2шт.

With Straw and Chaff Spreader

1шт.

3b

1302791C1

RETAINER

Rice

2шт.

With Straw Spreader

1шт.

4

188218C6

CONE,Spreader Support

2шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

Used with 2, 2B, 3, 3B

1шт.

5

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

Used with 2B, 3B

12шт.

6

462360R1

FLANGED BEARING

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

7шт.

8

128440A1

SHAFT

12", Grain, Rice

2шт.

With Straw Spreader

1шт.

8a

109485A1

SHAFT

12"

2шт.

With Straw and Chaff Spreader

1шт.

9

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

10

194194C1

GEAR

14T

4шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

1-1/4 x 5/8

2шт.

13

192241C4

SHAFT

, Serial Range: -JJC0270499

1шт.

13

427270A1

SHAFT

, Start Serial: JJC0270500

1шт.

14

186506C1

SUPPORT

1шт.

15

109487A1

SUPPORT

LH, Serial Range: -JJC0268799

1шт.

15

109487A2

SUPPORT

LH, Start Serial: JJC0268800

1шт.

16

109488A1

SUPPORT

RH, Serial Range: -JJC0268799

1шт.

16

109488A2

SUPPORT

RH, Start Serial: JJC0268800

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

Used with 2A, 3A

6шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Used with 2A, 3A

18шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with 2A, 3A

24шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

23

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

29

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

2шт.

With Straw Spreader

1шт.

38

A33497

LINCH PIN,4.76mm OD Pin

4шт.

With Straw Spreader

1шт.

39

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

40

108000A1

COUPLING

, Serial Range: -JJC0270499

2шт.

With Straw and Chaff Spreader

1шт.

41

140430A1

COUPLING

, Serial Range: -JJC0270499

2шт.

With Straw and Chaff Spreader

1шт.

42

140431A1

TUBE,48.26 mm OD, 75 mm Length

75 mm (3"), Serial Range: -JJC0270499

2шт.

With Straw and Chaff Spreader

1шт.

42

432330A1

TUBE

110 mm (4.33 in), Start Serial: JJC0270500

2шт.

43

140432A1

BOOT

2шт.

With Straw and Chaff Spreader

1шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

With Straw and Chaff Spreader

1шт.

46

231-1446

NUT,3/8" - 16, Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

47

321372A1

BAT

RH, Tall

3шт.

With Straw and Chaff Spreader

1шт.

48

321373A1

BAT

LH, Tall, Not Illustrated

3шт.

With Straw and Chaff Spreader

1шт.

49

371055A1

BAT

RH, Curved, Service Option Only, Shown

3шт.

50

371056A1

BAT

LH, Curved, Service Option Only, Not Illustrated

3шт.

51

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

18шт.

52

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

53

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

55

429194A1

COUPLING

, Start Serial: JJC0270500

2шт.

400505A1

KIT

Includes 49 - 54, Service Option Only

1шт.
