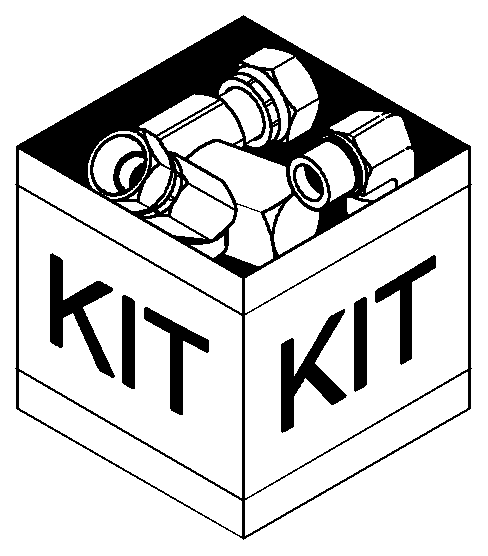

Запчасти Case IH 2388 (09E-25) - KIT SPILL SAVER (17) - GRAIN TANK & UNLOADER

1

B92872

PACKAGE

Incl 2 - 14

1шт.

2

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

3

113488A1

SPOUT, DISCHARGE

1шт.

4

115867A1

DOOR

1шт.

5

1338869C2

SPRING,162mm Free Length

2шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

8шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

9

280736

NUT,5/16"-18, GC

4шт.

10

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

12

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

4шт.

13

86625239

WASHER,0.34" ID x 1.5" OD x 0.06" Thk

18шт.

14

87327194

SERRATED SCREW,Sl Truss Head, 1/4" - 20 x 1", Gr 8

10шт.
