(09E-15) - UNLOADER - UPPER GEAR HOUSING

Запчасти Case IH 2388 (09E-15) - UNLOADER - UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER

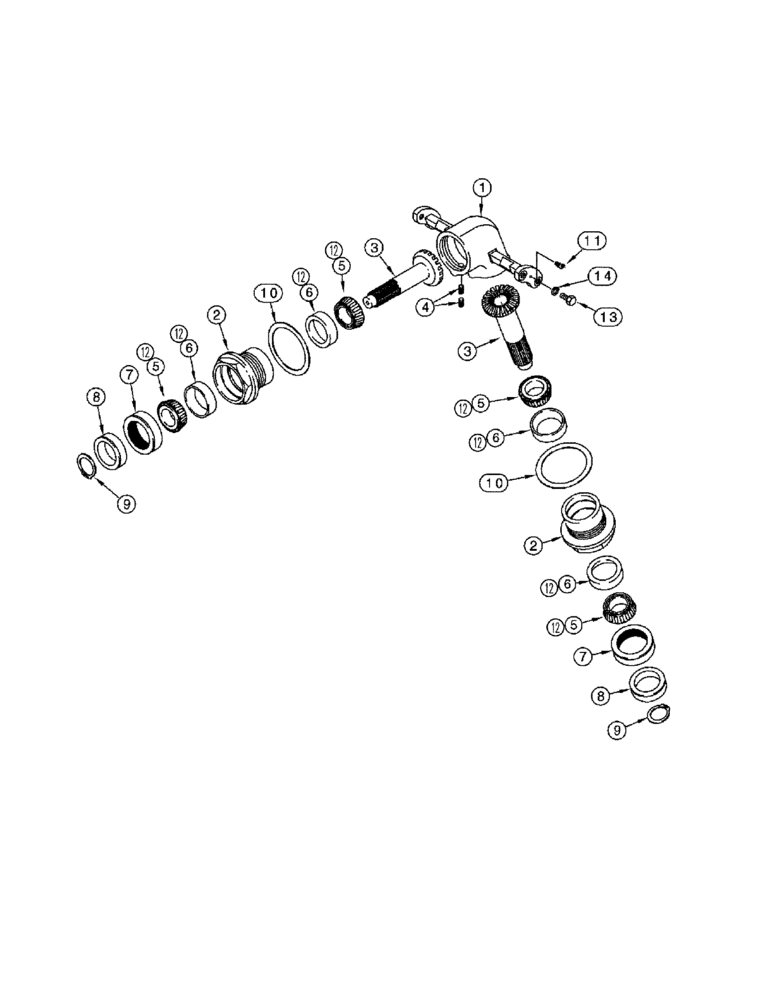

Схема запчастей Case IH 2388 - (09E-15) - UNLOADER - UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER
9
12
10
12
12
2
5
5
4
12
7
6
12
5
9
7
12
5
3
2
14
10
1
12
3
6
6
13
8
11
6
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1347351C1

HOUSING

Includes 1 - 11, Serial Range: -JJC0270499

1шт.

1347351C2R

REMAN-GEARBOX

2388 BSN JJC0276540, Serial Range: -JJC0270499 (1/98-8/04), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1347351C2

GEARBOX,Bearing, Upper Unloading Assembly

Includes 1 - 4, 7 - 10, 12, Start Serial: JJC0270500

1шт.

1347351C2R

REMAN-GEARBOX

2388 BSN JJC0276540 Start Serial: JJC0270500 (1/98-8/04)

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Upper Gears

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Gear Bearing

2шт.

3

1347260C1

PINION

18T

2шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

4шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

4шт.

6

651817R1

BEARING CUP

4шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

7

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

2шт.

8

1347312C1

RETAINER

2шт.

9

100-16125

SNAP RING,#125, Ext

2шт.

10

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

12

1347431C1

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

4шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.
