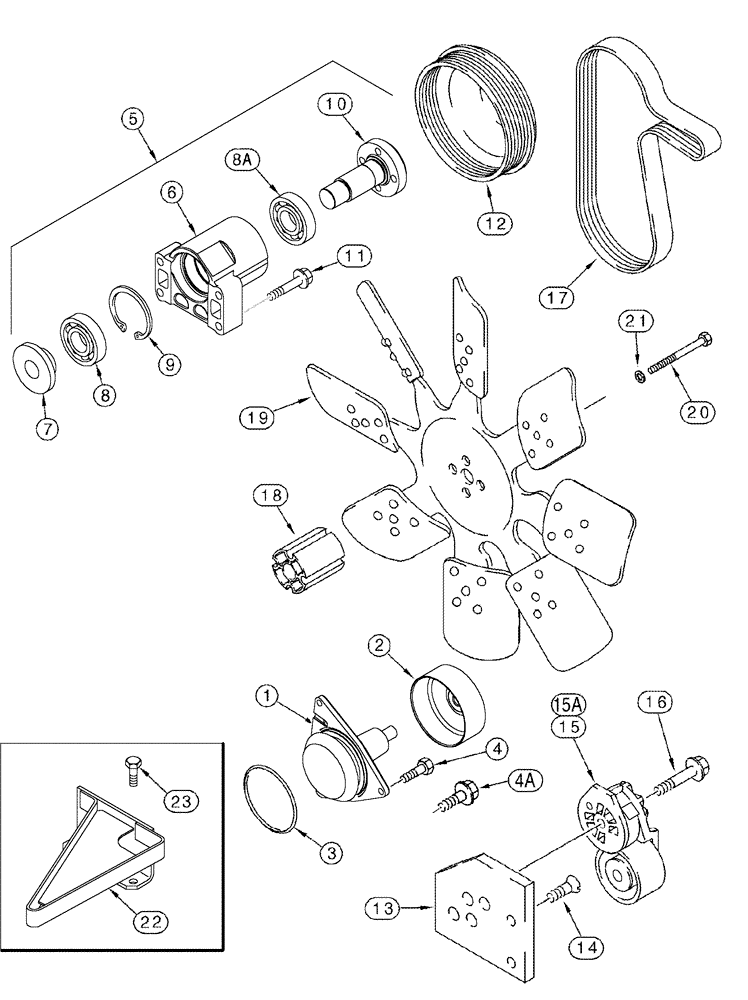

Запчасти Case IH 2388 (02-27) - WATER PUMP SYSTEM - ASN JJC0273000 (01) - ENGINE

J804927

WATER PUMP

Includes 1 - 3

1шт.

87308650R

REMAN-WATER PUMP

2388 BSN JJC0276540, WATER PUMP SYSTEM - ASN JJC0273000 (1/98-8/04) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

5

87408931

SUPPORT

Fan, Includes 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Hub

1шт.

7

NSS

NOT SOLD SEPARAT

Retainer

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

8a

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

9

NSS

NOT SOLD SEPARAT

Snap Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

84244661

PULLEY,235.65mm OD

1шт.

13

J925211

BRACKET

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

15

J945849

BELT TENSIONER

Replaced by 87436755

1шт.

15a

87436755

BELT TENSIONER

Shown

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

17

A78022

V-BELT,3.56 mm W x 2005.00 mm L, 8 Ribs

1шт.

18

A184751

SPACER,Fan, 74/75mm Thk

75 mm

1шт.

19

446926A1

FAN

Corn and Grain

1шт.

19

444610A1

FAN

Rice

1шт.

20

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

4шт.

21

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

87411538

GUIDE

Engine Fan Belt

1шт.

23

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.
