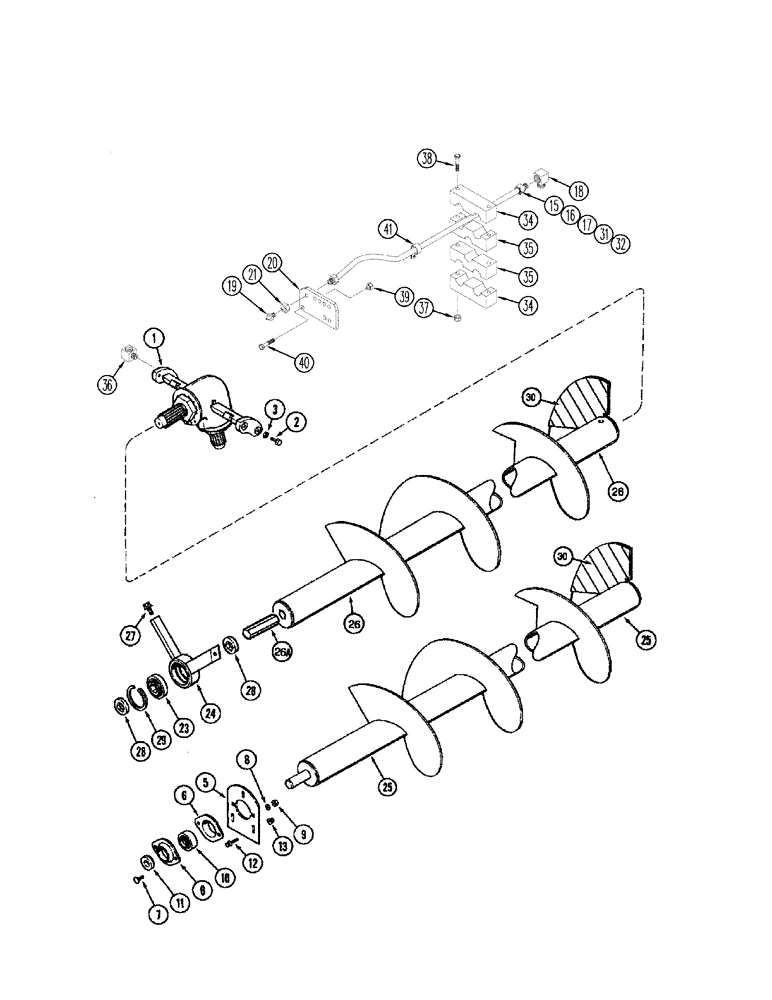

Запчасти Case IH 2388 (09E-11[02]) - UNLOADER - AUGER, UPPER, ASN JJC0270500 (17) - GRAIN TANK & UNLOADER

1

1347351C2

GEARBOX,Bearing, Upper Unloading Assembly

See Figure 09E-15

1шт.

1347351C2R

REMAN-GEARBOX

2388 BSN JJC0276540, AUGER, UPPER, ASN JJC0270500 (1/98-8/04)

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

i

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

5

182838C1

SUPPORT

1шт.

6

50591

FLANGE,52mm

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

1шт.

11

564853R11

COLLAR

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

1339004C1

HOSE,3.17mm ID x 1778mm L

Grease, 1778 mm (70")

2шт.

16

430376A1

HOSE

Grease, 1935 mm (76")

1шт.

17

428284A1

HOSE

Grease, 1720 mm (68")

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 tpr x 13/16

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

5шт.

20

418495A1

BRACKET

Lube Bank

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

1/8" PT

5шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

1шт.

24

1317859C1

SUPPORT

1шт.

25

199018A2

AUGER

172", Rear Split, Start Serial: JJC0267150

1шт.

25

199023A2

AUGER

208", Rear Split, Start Serial: JJC0267150

1шт.

26

198987A2

AUGER

172/208", Front Split; Standard Equipment BSN JJC0274396, Start Serial: JJC0267150

1шт.

26

282176A2

AUGER

208", Front Split; Optional Equipment BTW JJC0270500 & JJC0274396, Standard Equipment ASN JJC0274500, Start Serial: JJC0270500

1шт.

Extended Wear Rice Machine

1шт.

26a

220040A2

SHAFT

152 mm (6")

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

28

1277949C1

SPACER

4шт.

29

360936R1

RING

1шт.

30

182587A1

KIT

Unloader Auger Reinforcements

1шт.

31

428294A1

HOSE

Grease, 1925 mm (76")

1шт.

32

1345098C1

HOSE

Grease, 1524 mm (60")

1шт.

34

429629A1

CLAMP

2шт.

35

419590A1

CLAMP

2шт.

36

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

3шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

38

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

39

231-5146

FLANGE NUT,3/8"-16

12шт.

40

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

41

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.
