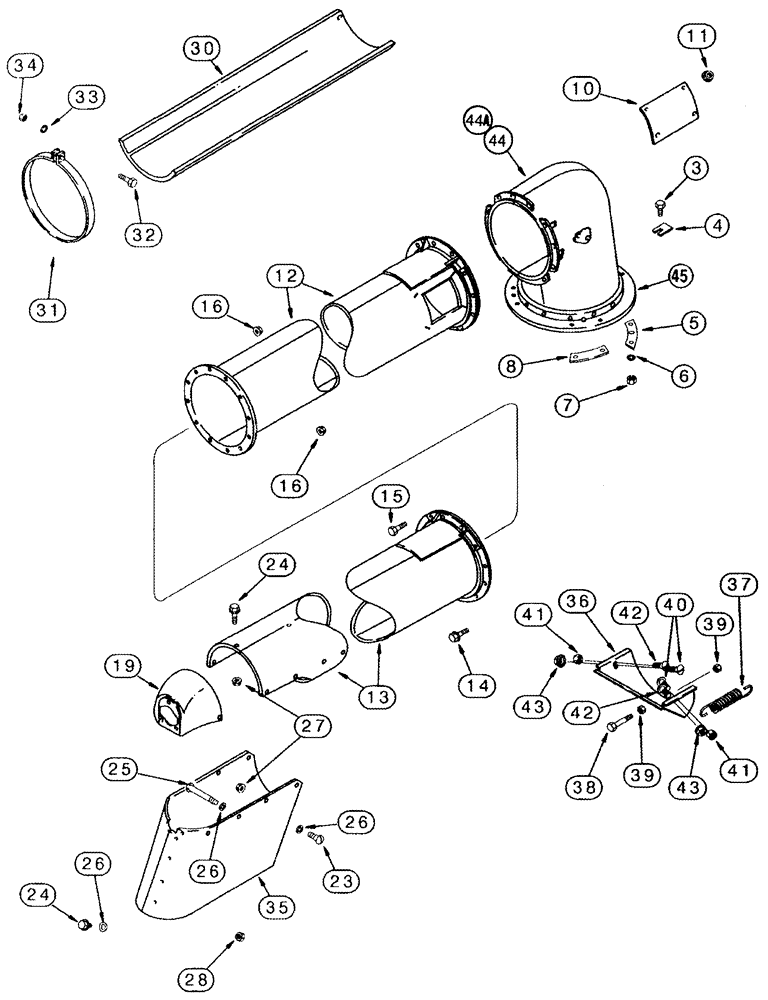

Запчасти Case IH 2388 (09E-10) - UNLOADER - TUBE, UPPER (17) - GRAIN TANK & UNLOADER

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

.036"

1шт.

5

186657C3

SUPPORT

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

1шт.

10

178158C1

PLATE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1317738C1

TUBE,2285 mm Length

Plain, Front, 89.96" Auger

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

Perforated, Front, 89.96" Auger

1шт.

13

1317783C5

TUBE,2084.01 mm Length

82.47" Auger, Rear

1шт.

13

1317899C4

TUBE,2998 mm Length

118.031" Auger, Rear

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

18шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

Support

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-6шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

22шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

17шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

Perforated

1шт.

31

178166C1

CLAMP

Perforated

4шт.

32

185856C1

ADJUSTMENT SCREW

5/16" x 2"

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT Down

1шт.

36

115867A1

DOOR

Grain Saver

1шт.

37

1338869C2

SPRING,162mm Free Length

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

44

248308A1

ELBOW

Includes 45 - 47, Serial Range: -JJC0270499

1шт.

44

248308A2

ELBOW

Includes 45 - 47; Standard Equipment BSN JJC0274396, Start Serial: JJC0270500

1шт.

44a

291131A1

ELBOW

Includes 45 - 47, Serial Range: -JJC0270499

1шт.

Extended Wear Rice Machine

1шт.

44a

291131A2

ELBOW

Includes 45 - 47; Optional Equipment BTW JJC0270500 & JJC0274396, Standard Equipment ASN JJC0274450, Start Serial: JJC0270500

1шт.

Extended Wear Rice Machine

1шт.

45

237007A1

RING

, Serial Range: -JJC0270499

1шт.

45

237007A2

RING

, Start Serial: JJC0270500

1шт.

46

49-516

RIVET,Tr Hd, 5/16" x 1"

Not Illustrated

20шт.

47

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

Not Illustrated

3шт.
