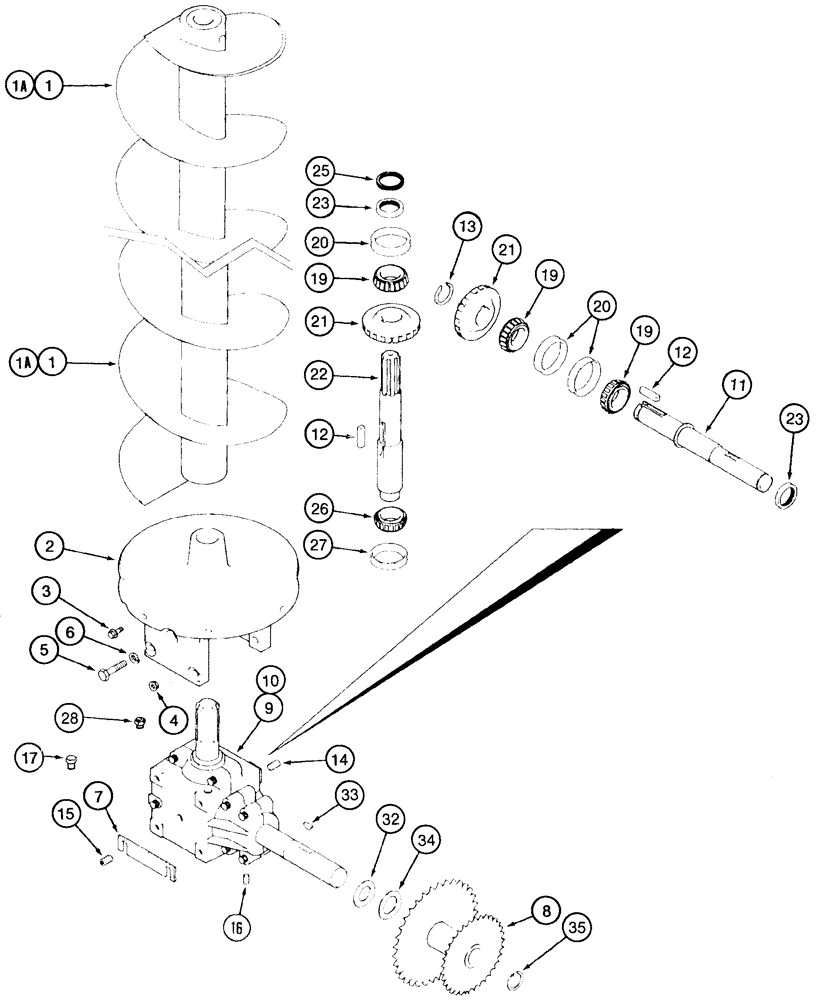

Запчасти Case IH 2388 (09E-08) - AUGER, UNLOADER - GRAIN TANK, LOWER (17) - GRAIN TANK & UNLOADER
№
Артикул
Название
Примечание
Количество
1
1347389C1
AUGER
Vertical, Unloader, Serial Range: -JJC0267149
1шт.
1
1347389C2
AUGER
Vertical, Unloader; Standard Equipment BSN JJC0274396, Start Serial: JJC0267150
1шт.
1a
249277A1
AUGER
Vertical, Unloader; Optional Equipment BTW JJC0267150 & JJC0274396, Standard Equipment ASN JJC0274450
1шт.
Extended Wear Rice Machine
1шт.
2
1347177C1
SUPPORT
1шт.
3
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
7шт.
3
409-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl
2шт.
4
231-5146
FLANGE NUT,3/8"-16
9шт.
5
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
6шт.
6
80679
LOCK WASHER,1/20.507 CST ZND
6шт.
7
1347337C1
SHIM
1шт.
8
1347402C1
SPROCKET
33T, 57T, Driven
1шт.
9
1347336C2
GEARBOX
Includes 10 - 28
1шт.
1347336C2R
REMAN-HOUSING
2388 BSN JJC0276540 (1/98-8/04)
1шт.
1347336C2C
CORE-TRANSMISSION
Return Number
1шт.
10
NSS
NOT SOLD SEPARAT
Housing
1шт.
11
1989462C1
SHAFT
1-1/2" OD
1шт.
13
1989563C1
SNAP RING
Ring, Retaining
1шт.
14
217-439
PLUG,Hex Soc, 1/2" - 14 NPTF
1шт.
15
221-667
DRAIN PLUG,Hex Soc, 1/2" NPT
1шт.
16
221-671
DRAIN PLUG,Hex Soc, 1/4" NPT
1шт.
17
436993A1
CAP
Rubber
1шт.
23
1989581C1
SEAL,38.08mm ID x 50.08mm OD x 7.95mm Thk
2шт.
24
61-33836
HEX SOC SCREW,3/8 - 16 x 2-1/4"
Not Illustrated
1шт.
25
1347432C2
SEAL,38.08mm ID x 42mm OD x 7.5mm Thk
1шт.
26
20879D
ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"
1шт.
27
ST991
BEARING CUP
1шт.
28
219-431
LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief
7-1/2 to 15 psi
1шт.
32
1327731C1
THRUST WASHER
1-13/32" x 2-1/4" x 1/8"
7шт.
33
126-133
WOODRUFF KEY,#D, 5/16" x 1 1/4", HT
1шт.
34
188354C1
WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk
1-13/32" x 2-1/4" x 1/8"
3шт.
35
A21619
CIRCLIP
1шт.
