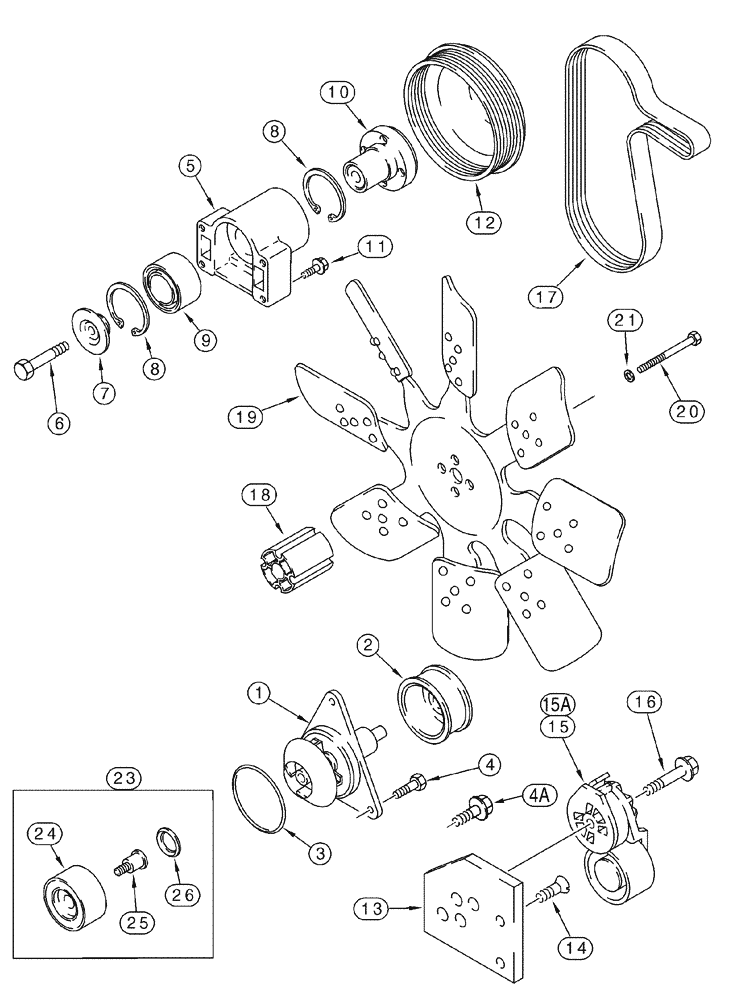

Запчасти Case IH 2388 (02-26) - WATER PUMP SYSTEM - BSN JJC0273000 (01) - ENGINE

J802479

PUMP, WATER

Order J800976

1шт.

J800976R

REMAN-WATER PUMP

2388 (NA) BSN JJC0276540, BSN JJC0273000 (1/98-8/04), Reman for New P/N J802479

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

J802975

PUMP, WATER

Order J800976

1шт.

J800976R

REMAN-WATER PUMP

2388 (NA) BSN JJC0276540, BSN JJC0273000 (1/98-8/04), Reman for New P/N J802975

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

J800974

PUMP, WATER

Order J800976

1шт.

J800976R

REMAN-WATER PUMP

2388 (NA) BSN JJC0276540, BSN JJC0273000 (1/98-8/04), Reman for New P/N J800974

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

J800976

WATER PUMP

Includes 1 - 3, Replaces J802479, J802975, J800974

1шт.

J800976R

REMAN-WATER PUMP

2388 (NA) BSN JJC0276540, BSN JJC0273000 (1/98-8/04)

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

1шт.

4

J926125

BOLT,Hex, M8 x 28mm, Cl 8.8

M8 x 28, No Longer Used, Order J934054

3шт.

4a

J934054

FLANGE BOLT

M8 x 28, Replaces J926125

3шт.

5

J942896

SUPPORT

Includes 6 - 10, Replaces J929458

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

J925211

BRACKET

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

15

J934817

BELT TENSIONER

No Longer Used, Order J936209

1шт.

15a

J936209

TENSIONER

1шт.

16

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

17

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

No Longer Used, Order A77938

1шт.

17a

A77938

V-BELT,3.56 mm W x 1549.40 mm L, 8 Ribs

1шт.

18

A184548

SPACER,Fan, 89/90mm Thk

90 mm

1шт.

19

237157A1

FAN

1шт.

20

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

4шт.

21

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

22

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

Not Illustrated

4шт.

23

A77817

KIT

Tensioner, Used with J934817, Ref. 15, Includes 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Pulley

1шт.

25

NSS

NOT SOLD SEPARAT

Bolt

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.
