Запчасти Case IH 2388 (09E-05) - GRAIN TANK - STEPS AND SAMPLE TROUGH (17) - GRAIN TANK & UNLOADER

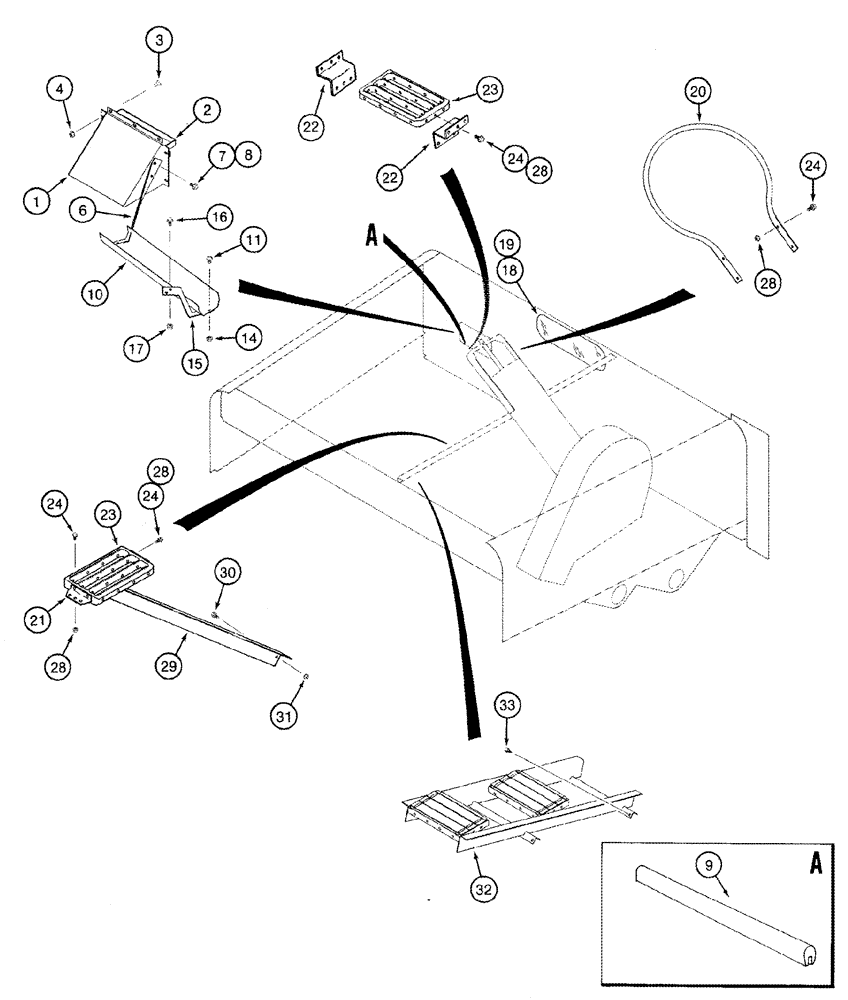

Схема запчастей Case IH 2388 - (09E-05) - GRAIN TANK - STEPS AND SAMPLE TROUGH (17) - GRAIN TANK & UNLOADER
24
28
29
4
24
24
31
28
32
17
10
19
23
20
1
21
9
3
7
2
16
22
18
15
24
30
8
6
28
11
23
28
33
14
22

Артикул

Название

Примечание

Количество

1

115730A1

SHEET

1шт.

2

185668A1

SUPPORT

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

6

124001A1

SUPPORT

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

126046A1

GASKET,287.02mm L

292 mm (11-1/2"), Cut from 1330108CX

1шт.

10

123977A2

BOTTOM

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

124000A1

SUPPORT

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

120550A1

GLASS

1шт.

19

123579A1

STRIP

1524 mm (60"), Cut from 198131C2

1шт.

20

129073A1

HANDLE

1шт.

21

129077A3

SUPPORT

2шт.

22

141410A1

SUPPORT

2шт.

23

1531337C1

STEP

2шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

16шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

29

129079A2

SUPPORT

1шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

32

129080A3

LADDER

1шт.

32a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25") x 51 mm (2"), Not Illustrated

5шт.

33

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

4шт.

Выбрано товаров: 28
