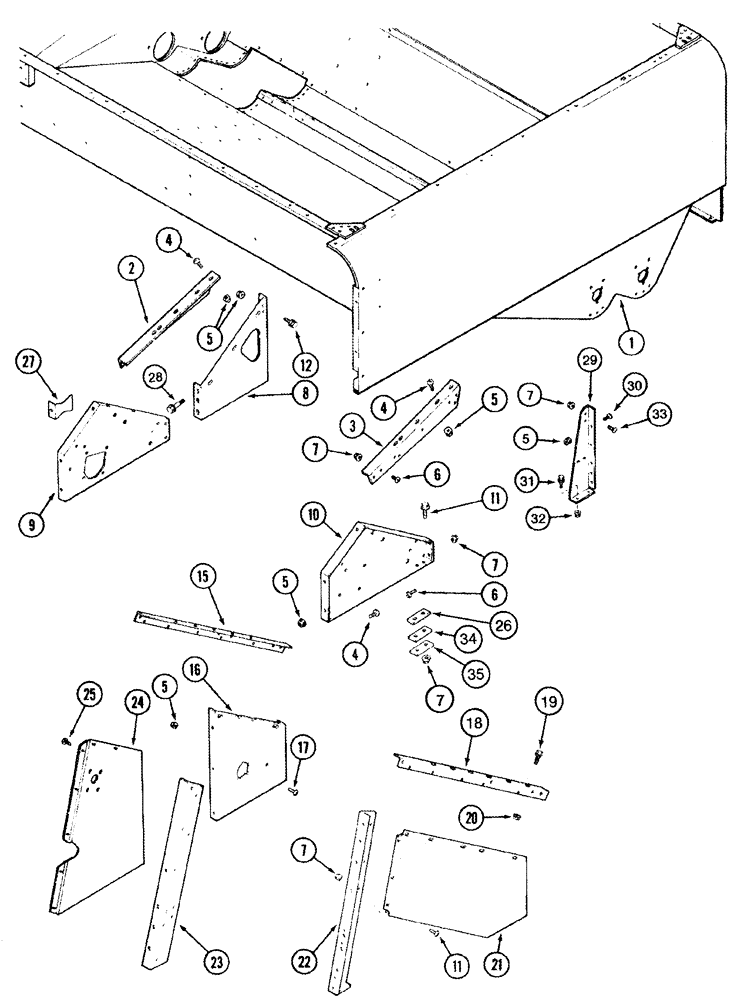

Запчасти Case IH 2388 (09E-02) - GRAIN TANK - SUPPORTS, LOWER (17) - GRAIN TANK & UNLOADER

1

189455A5

HOPPER

See Figure 09E-01(01), Serial Range: -JJC0270499

1шт.

1

429977A3

GRAIN TANK

, Start Serial: JJC0270500

1шт.

2

192768C3

SUPPORT

Diagonal LH

1шт.

3

192769C3

SUPPORT

Diagonal RH

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

176194A4

SUPPORT

LH Front

1шт.

9

192771C3

SUPPORT

Center LH

1шт.

10

192772C3

SUPPORT

Center RH

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

17шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

15

193469C1

SUPPORT

LH Rear, Bottom

1шт.

16

1347380C2

SUPPORT

LH Rear

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

193470C1

SUPPORT

RH Rear, Bottom

1шт.

19

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

21

193465C2

COVER

RH Rear

1шт.

22

181394C2

SUPPORT

Vertical, RH Rear

1шт.

23

193462C4

SUPPORT

Vertical, LH Rear

1шт.

24

193464C3

SUPPORT

LH Rear

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

17шт.

26

1302549C2

PLATE

LH Front

1шт.

27

193531C1

SUPPORT

4шт.

28

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

29

193430C4

SUPPORT

RH Front

1шт.

30

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5шт.

31

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

6шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

7шт.

34

302454A1

PLATE

1шт.

35

302455A1

PLATE

1шт.

36

1301560C2

STIFFENER

Under Rear Tank Wall, Not Illustrated

1шт.
