Запчасти Case IH 2388 (09E-01[02]) - GRAIN TANK - SUPPORTS, UPPER, ASN JJC0270500 (17) - GRAIN TANK & UNLOADER

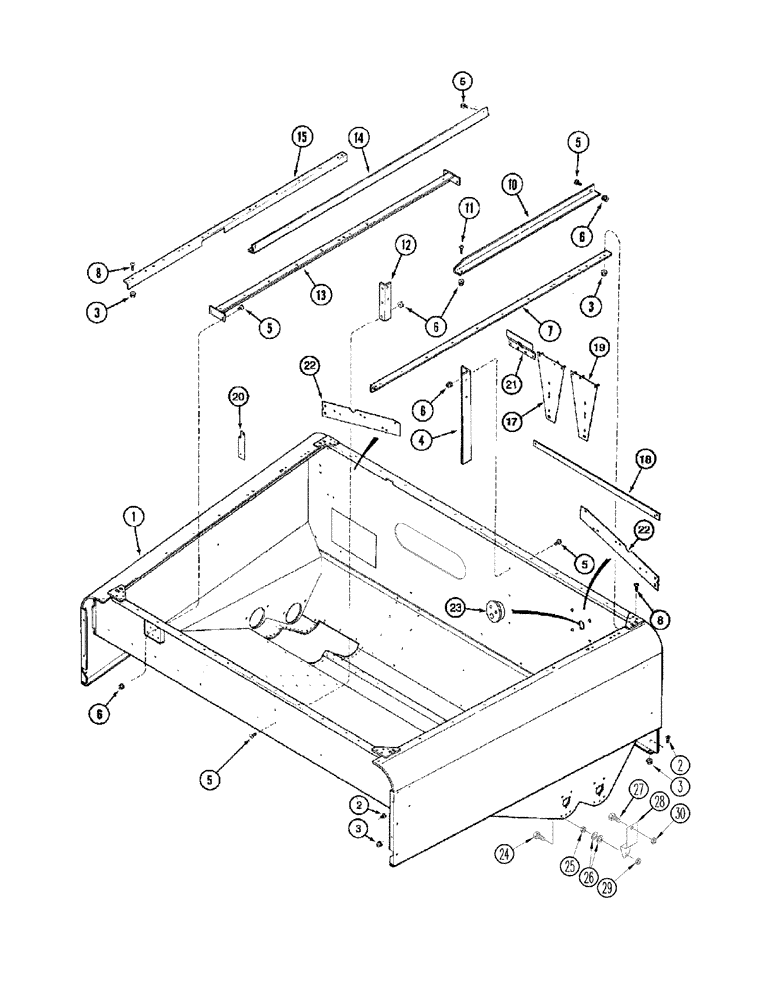

Схема запчастей Case IH 2388 - (09E-01[02]) - GRAIN TANK - SUPPORTS, UPPER, ASN JJC0270500 (17) - GRAIN TANK & UNLOADER
2
21
12
19
5
30
10
20
8
5
15
22
24
4
11
3
29
23
6
6
2
8
22
17
27
25
13
6
3
1
5
6
3
5
26
3
14
7
18
3
28

Артикул

Название

Примечание

Количество

1

429977A3

GRAIN TANK

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

192765C1

SUPPORT

Front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

195398C3

SUPPORT

Upper RH

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

10

188414C6

ANGLE

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

12

181682C2

SUPPORT

Rear

1шт.

13

192855C1

SUPPORT

1шт.

14

192767C8

SUPPORT

1шт.

15

195397C4

SUPPORT

Upper LH

1шт.

17

255265A3

PLATE

LH Front

1шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

18

255684A1

STRAP

RH Front

1шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

19

255269A3

PLATE

RH

1шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

20

255724A1

SUPPORT

Tool

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

21

255448A1

PLATE

Front

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

22

259235A3

SUPPORT

2шт.

23

258336A1

GROMMET

1шт.

24

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

495-11034

WASHER,5/16", SAE

4шт.

27

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

2шт.

28

431114A1

BRACKET

2шт.

29

231-4145

NUT,5/16"-18, GB

2шт.

30

86625057

NUT,#10-24, GB

2шт.

31

129-419

WING NUT,5/16"-18

Not Illustrated

2шт.

32

492-11031

LOCK WASHER,5/16"

Not Illustrated

2шт.

Выбрано товаров: 39
