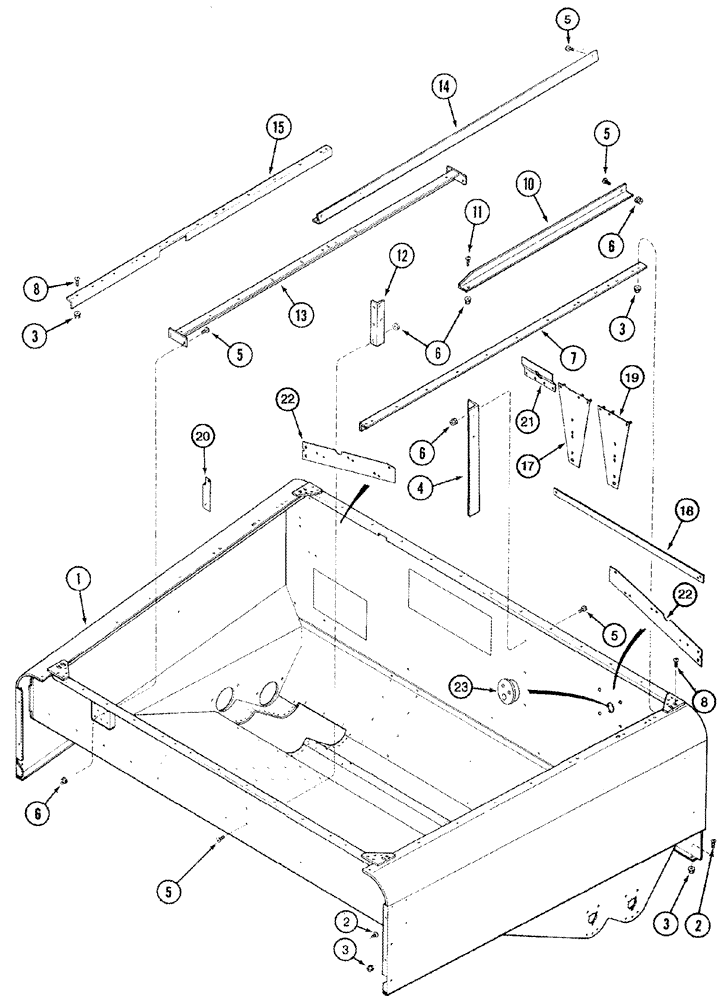

Запчасти Case IH 2388 (09E-01[01]) - GRAIN TANK - SUPPORTS, UPPER, BSN JJC0270499 (17) - GRAIN TANK & UNLOADER

1

189455A5

HOPPER

Includes Decal, See Figure 09H-23

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

192765C1

SUPPORT

Front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

195398C3

SUPPORT

Upper RH

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

10

188414C6

ANGLE

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

12

181682C2

SUPPORT

Rear

1шт.

13

192855C1

SUPPORT

1шт.

14

192767C8

SUPPORT

1шт.

15

195397C4

SUPPORT

Upper LH

1шт.

17

255265A3

PLATE

LH Front

1шт.

18

255684A1

STRAP

RH Front

1шт.

19

255269A3

PLATE

RH

1шт.

20

255724A1

SUPPORT

Tool

1шт.

21

255448A1

PLATE

Front

1шт.

22

259235A3

SUPPORT

2шт.

23

258336A1

GROMMET

1шт.

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.
