Запчасти Case IH 2388 (09D-12) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

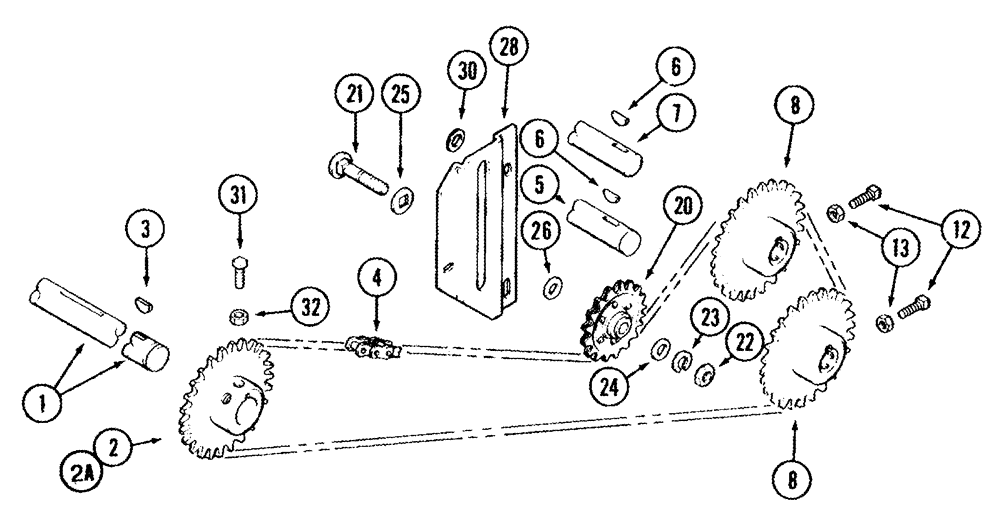

Схема запчастей Case IH 2388 - (09D-12) - TAILINGS - ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
13
12
20
24
32
28
6
8
2a
3
4
25
30
7
31
22
2
23
5
26
6
21
8
1

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

1шт.

2

192139C2

SPROCKET

25T, Drive, Serial Range: -JJC0198067

1шт.

Note: To reduce the cleaning system speed on models prior to P.I.N. JJC0198068, order 303188A1 kit.

1шт.

2a

296022A1

SPROCKET

27T, Drive, Start Serial: JJC0198068

1шт.

3

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

4

1302671C92

CHAIN,#50, 156 Links x 15.88mm = 2476.5mm

Order 1791D (155), 241-1315 (1), Tailings Drive

1шт.

5

192563C1

AUGER

Delivery, See Figure(s) 09D-05

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

1шт.

8

1345472C1

SPROCKET

27T

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

20

631905R91

SPROCKET

17T

1шт.

21

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

4шт.

25

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

2шт.

26

495-81182

WASHER,21/32" x 1 1/4" x .060"

2шт.

28

1302069C2

SUPPORT

1шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

1шт.

32

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

303188A1

KIT

Includes 296022A1 (Ref. 2A), 1327534C92, 1302671C92, 301146A1, 317904A1, 295918A1, 301141A1, 296023A1, 186283C2, See Figure(s) 9A-01, 9C-07, 9D-04, 9D-13

1шт.

Выбрано товаров: 24
