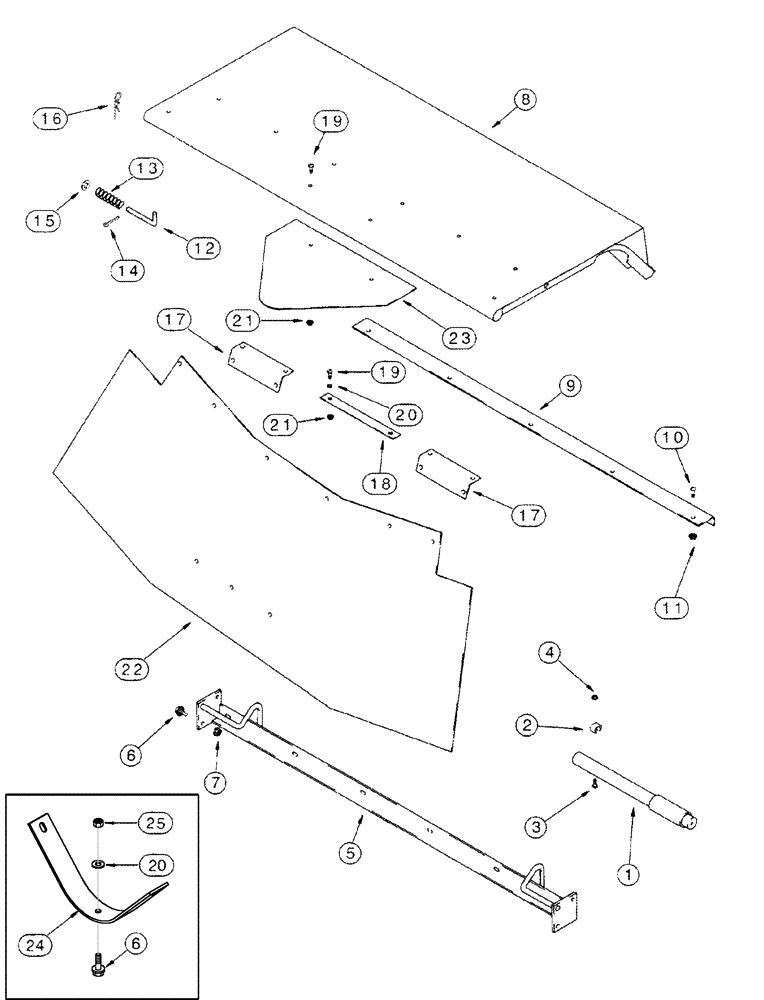

Запчасти Case IH 2388 (09D-09) - CLEANING SHOE DOOR - SHIELD - MODELS WITH STRAW AND CHAFF SPREADER (16) - GRAIN ELEVATORS & AUGERS

1

106743A1

HANDLE

1шт.

Note: Item 1 is used to adjust shoe sieves on Figure 09B-18

1шт.

2

106744A1

CLIP

2шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

126091A1

SUPPORT

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4-7шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

122152A2

DOOR

, Serial Range: -JJC0270499

1шт.

8

87485973

DOOR

, Start Serial: JJC0270500

1шт.

9

126094A2

SUPPORT

1шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

12

186736C3

ROD

2шт.

13

540815R2

SPRING

2шт.

14

432-612

COTTER PIN,3/32" x 3/4"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

16

586591R1

COTTER PIN

1/8"

2шт.

17

137480A1

SUPPORT

2шт.

18

137527A2

SUPPORT

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

20

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

8-11шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

122625A2

GUARD

, Serial Range: -JJC0270499

1шт.

22

447680A2

SHIELD

, Serial Range: JJC0270500-JJC0274396

1шт.

22

87301089

SHIELD,571mm W x 1680.1mm L

Rubber, Start Serial: JJC0274450

1шт.

23

190692A1

DEFLECTOR

, Serial Range: -JJC0270499

1шт.

23

190692A2

DEFLECTOR

, Start Serial: JJC0270500

2шт.

24

87300945

STRAP

, Start Serial: JJC0274450

1шт.

25

231-5345

FLANGE NUT,Flg, 5/16"-18

, Start Serial: JJC0274450

3шт.
