Запчасти Case IH 2388 (09D-07) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

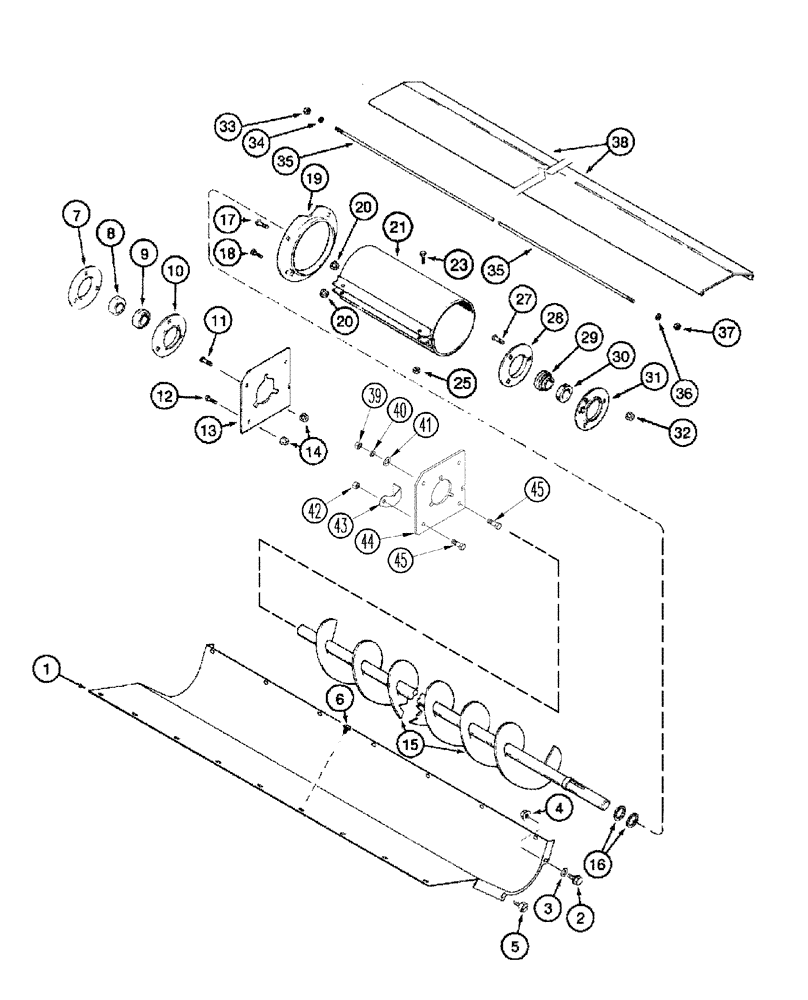

Схема запчастей Case IH 2388 - (09D-07) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
43
12
6
31
30
40
3
41
2
23
42
25
34
18
8
45
10
14
20
35
15
38
17
16
35
36
4
32
29
1
28
5
37
11
7
19
44
9
27
21
13
33
45
20
39

Артикул

Название

Примечание

Количество

1

1346938C2

TROUGH

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

3

495-11034

WASHER,5/16", SAE

2шт.

4

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

5

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

8шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

7

939460R91

FLANGE

1шт.

8

557995R11

COLLAR

With set screw

1шт.

9

156011C92

BALL BEARING

1шт.

10

939461R1

FLANGE

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

13

183158C1

COVER

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

144028A2

AUGER

1шт.

16

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

19

199665A2

FLANGE

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

199700A3

TUBE

Non-perforated

1шт.

21

240811A2

TUBE

Perforated, Not Illustrated

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

25

231-4115

NUT,5/16"-18, GB

3шт.

25

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

27

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

1шт.

27

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

28

939461R1

FLANGE

Grooved, RH

2шт.

29

156011C92

BALL BEARING

2шт.

30

557995R11

COLLAR

With set screw

2шт.

31

939460R91

FLANGE

2шт.

32

231-5146

FLANGE NUT,3/8"-16

9шт.

33

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

185197C1

ROD

1шт.

36

495-11034

WASHER,5/16", SAE

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

185196C1

DOOR

1шт.

39

129-409

WING NUT,1/4"-20

1шт.

40

492-11025

LOCK WASHER,1/4"

1шт.

41

495-11028

WASHER,1/4", SAE

1шт.

42

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

43

429985A2

COVER

Plate, Grain Cleanout, Start Serial: JJC0270500

1шт.

44

430002A1

PLATE

Cover, Grain Cleanout, Start Serial: JJC0270500

1шт.

45

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

46

446246A1

STRAP

Not Illustrated

2шт.

Выбрано товаров: 48
