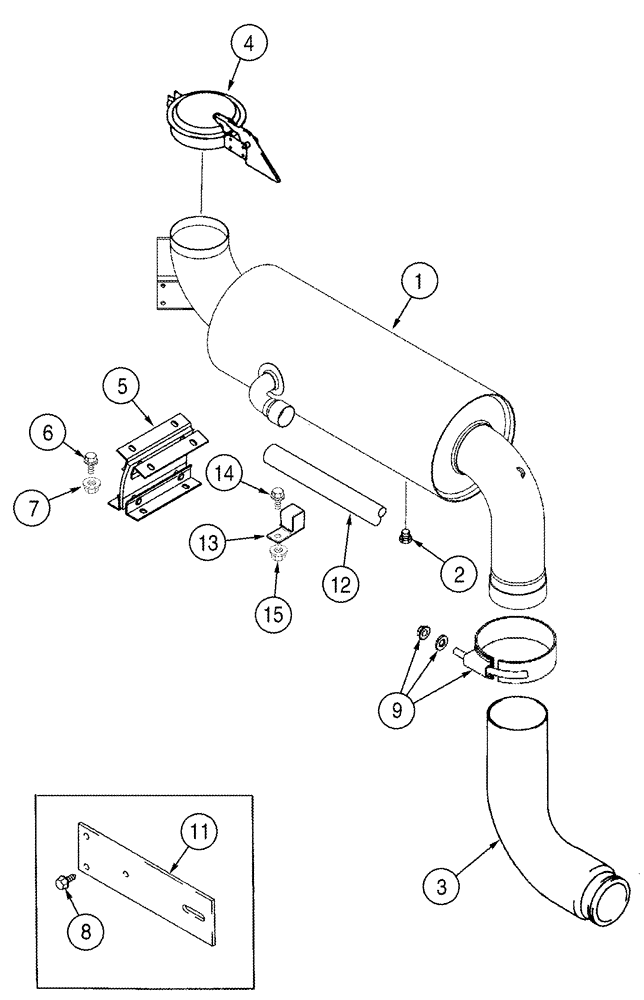

Запчасти Case IH 2388 (02-24) - EXHAUST SYSTEM - SPARK ARRESTER - BTW JJC0267150 & JJC0272999 (01) - ENGINE

1

364151A1

MUFFLER

1шт.

2

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

3

182503A1

EXHAUST SYSTEM PIPE,114.3 mm OD

1шт.

4

182770A1

CAP

1шт.

5

375519A1

SUPPORT

Isomount

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

9

A173381

CLAMP,117.7mm ID

Includes Hardware

1шт.

11

292137A1

SUPPORT

1шт.

12

255057A1

HOSE

1100 mm (43-5/16")

1шт.

13

1301387C2

CLIP

2" ID, Square

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
