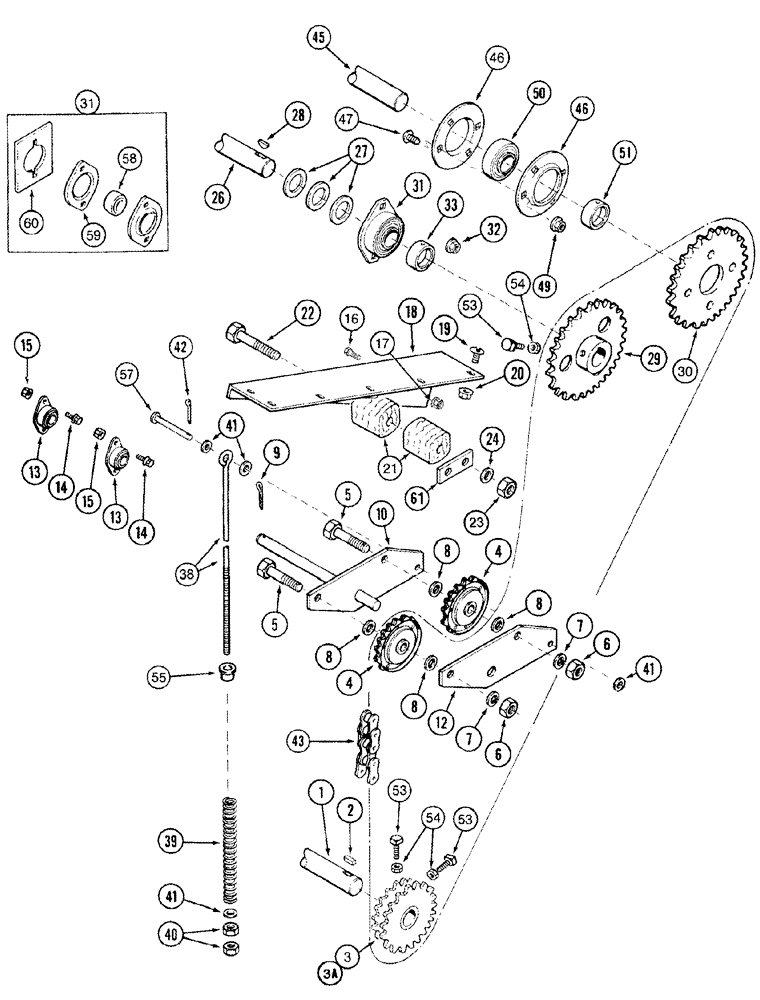

Запчасти Case IH 2388 (09D-04) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1319247C1

SHAFT

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

182945A1

SPROCKET

25T, 30T, Drive, Serial Range: -JJC0198067

1шт.

Note: To reduce the cleaning system speed on models prior to P.I.N. JJC0198068, order 303188A1 kit.

1шт.

3a

296023A1

SPROCKET

27T, 32T, Drive, Used In Slowdown Kit, Start Serial: JJC0198068

1шт.

3a

348324A1

SPROCKET

20T, 27T, Drive, Edible Bean

1шт.

4

631905R91

SPROCKET

Idler, 17T

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

10

1345065C1

SUPPORT

1шт.

12

1345066C1

PLATE

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

18

1317476C4

SUPPORT

Replaces 1317476C3

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

21

582018R1

BLOCK

2шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

232-41110

NUT,5/8"-11, GC

2шт.

24

495-81030

WASHER,21/32" x 2" x .179"

4шт.

26

1317470C1

SHAFT

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

32T, Driven

1шт.

30

1321039C1

SPROCKET

29T, Driven

1шт.

31

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

1шт.

38

1345005C1

BOLT,3/8" - 16 x 815mm

BOLT, EYE

1шт.

39

523677R1

SPRING

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-81143

WASHER,13/32" x 1 1/2" x .120"

4шт.

42

432-612

COTTER PIN,3/32" x 3/4"

1шт.

43

1327534C92

CHAIN

Order 1791D (255), 241-1315 (3), 241-1115 (2), Inclined Delivery Auger Elevator, 162.5in OAL, Used With Slowdown Kit

1шт.

43

1321308C91

CHAIN (AG)

Order 1791D (259), 241-1315 (3), 241-1115 (2), Inclined Delivery Auger Elevator, 165in OAL

1шт.

45

249275A2

AUGER

Inclined Delivery Auger Elevator, See Figure 09D-06, Ref. 35

1шт.

46

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

2шт.

47

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

49

231-5146

FLANGE NUT,3/8"-16

4шт.

50

611583R91

BALL BEARING

1шт.

51

517645R11

COLLAR

1шт.

53

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

2шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

55

S113843

BUSHING,9.65mm ID x 15.75mm OD x 15.75mm L

1шт.

57

427-6240

CLEVIS PIN,9.53mm OD x 61.11mm L

1шт.

58

156010C92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

59

581469R1

FLANGE,Bearing

2шт.

60

1979642C1

SPACER

1шт.

61

87422237

PLATE

Strap, Elevator Idler

1шт.

303188A1

KIT

Includes 296023A1 (Ref. 3A), 1327534C92, 1302671C92, 301146A1, 317904A1, 295918A1, 301141A1, 296022A1, 186283C2, See Figure(s) 9A-01, 9C-07, 9D-12, 9D-13

1шт.
