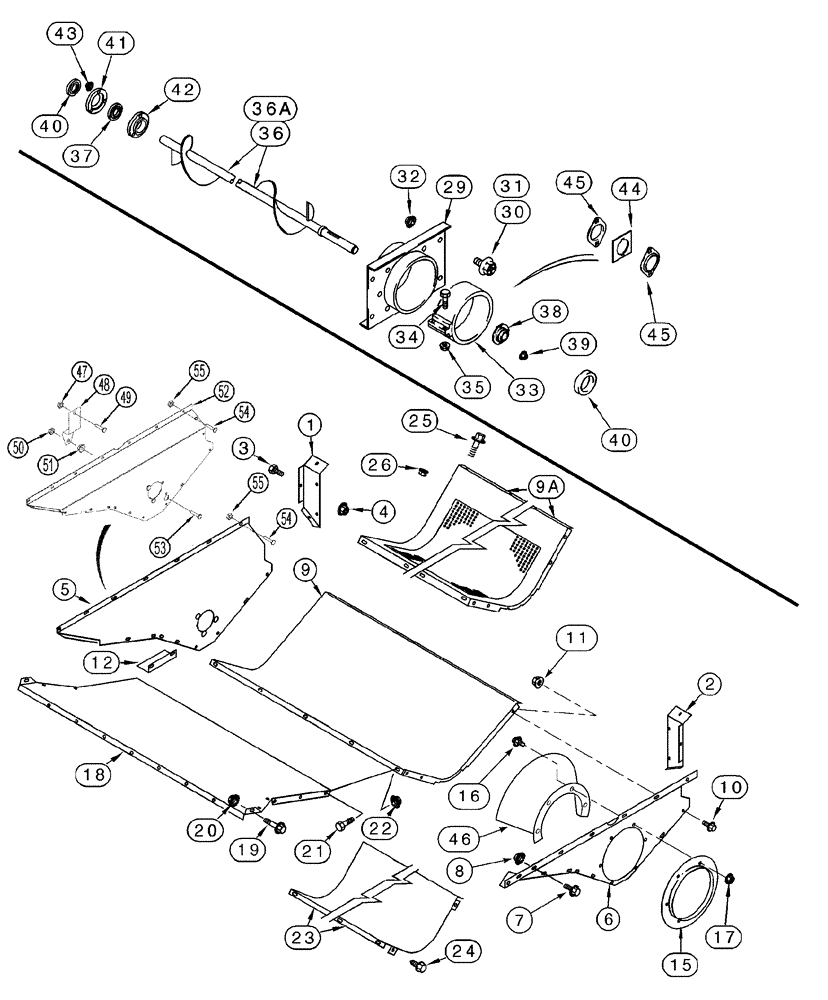

Запчасти Case IH 2388 (09D-01) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1541928C1

SUPPORT

LH

1шт.

2

1541929C1

SUPPORT

RH

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

143955A1

SUPPORT

LH, Serial Range: -JJC0268799

1шт.

5

143955A2

SUPPORT

LH, Start Serial: JJC0268800

1шт.

6

1541541C1

SUPPORT

RH, Serial Range: -JJC0268799

1шт.

6

1541541C2

SUPPORT

RH, Start Serial: JJC0268800

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

9

1989374C1

TROUGH

Non-perforated, Clean Grain

1шт.

9a

1541800C1

TROUGH

Perforated, Clean Grain

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

11

231-5345

FLANGE NUT,Flg, 5/16"-18

12шт.

12

1317407C1

BRACKET

, Serial Range: -JJC0270499

1шт.

12

1317407C3

BRACKET

Bracket, Start Serial: JJC0270500

1шт.

15

1317401C1

RETAINER

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

18

191984C2

PLATE

Extension, Serial Range: -JJC0268799

1шт.

18

191984C3

SUPPORT

Extension, Start Serial: JJC0268800

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

19шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

23

1541802C1

COVER

1шт.

24

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

4шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

14шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

29

1317398C1

SUPPORT

1шт.

30

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1/2" x 1"

9шт.

31

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

1/2" x 1-1/4"

1шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

33

1317442C1

CLAMP

1шт.

34

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

2шт.

35

231-4115

NUT,5/16"-18, GB

2шт.

36

143959A2

AUGER

Clean Grain, Serial Range: -JJC0267149

1шт.

36

143959A3

AUGER

Clean Grain; Standard Equipment BSN JJC0274396, Start Serial: JJC0267150

1шт.

36a

249279A1

AUGER

Clean Grain; Optional Equipment BSN JJC0274396, Standard Equipment ASN JJC0274450

1шт.

Extended Wear Rice Machine

1шт.

37

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

LH

1шт.

38

473093R92

BEARING ASSY,34.92mm ID x 72mm OD x 19mm W

RH

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

517645R11

COLLAR

Locking, with Set Screw

2шт.

41

939462R91

FLANGE

LH, Includes Grease Fitting

1шт.

42

473092R1

FLANGED BEARING

Grooved, LH

1шт.

43

231-5146

FLANGE NUT,3/8"-16

3шт.

44

176111A1

SPACER

1шт.

45

599382R1

FLANGED BEARING

RH

2шт.

46

197620A1

CONE

1шт.

47

86625057

NUT,#10-24, GB

1шт.

47

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

48

431114A1

BRACKET

, Start Serial: JJC0270500

1шт.

49

440-11024

SCREW,Cross Pan Hd, #10-24 x 1 1/2"

1шт.

50

231-4145

NUT,5/16"-18, GB

1шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

52

430035A1

SUPPORT

, Start Serial: JJC0270500

1шт.

53

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

54

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.
