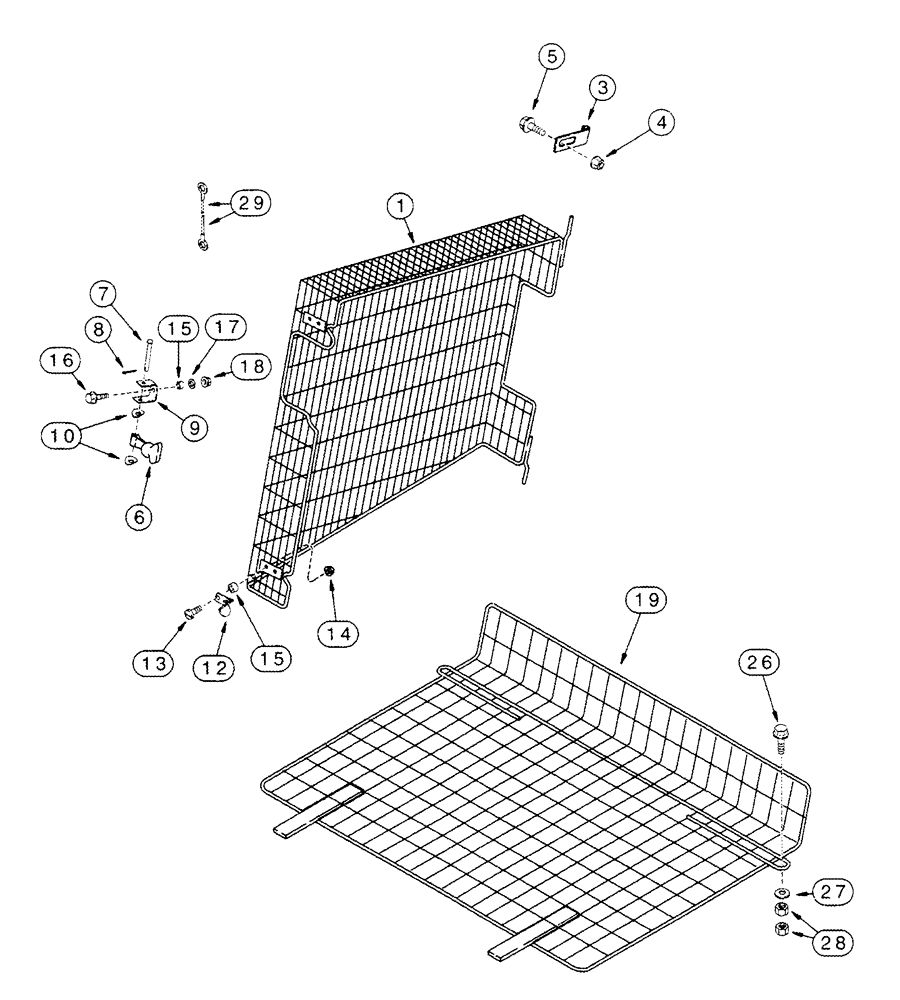

Запчасти Case IH 2388 (09C-09) - CLEANING FAN - SHIELDS (15) - BEATER & CLEANING FANS

1

239930A2

SHIELD

LH

1шт.

3

1541763C3

HINGE

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

6

494307C1

LATCH

2шт.

7

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

2шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

9

188103C2

BRACKET

2шт.

10

1324377C1

SPRING WASHER

5/16"

2шт.

12

L105124

LATCH HOOK

2шт.

13

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

13

470-11020

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

4шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

15

1277909C1

SPACER

6шт.

16

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

2шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

1541759C2

GUARD

Lower

1шт.

26

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

27

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

132657A2

CABLE

1шт.
