Запчасти Case IH 2388 (09C-08) - SHIELD, FAN INLET - DOOR - RIGHT-HAND (15) - BEATER & CLEANING FANS

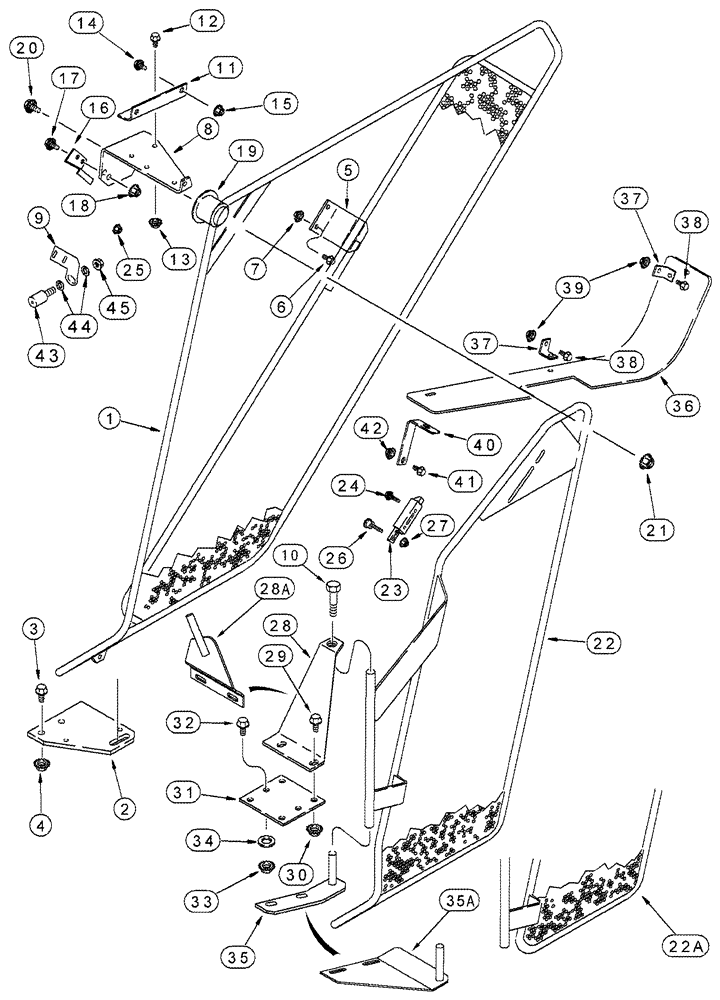

Схема запчастей Case IH 2388 - (09C-08) - SHIELD, FAN INLET - DOOR - RIGHT-HAND (15) - BEATER & CLEANING FANS
28
9
43
10
34
16
19
37
22a
38
39
40
32
27
3
15
13
6
8
42
12
35a
5
41
29
23
30
31
28a
7
45
4
33
14
17
36
22
35
38
26
21
25
18
44
20
37
11
24
2
1

Артикул

Название

Примечание

Количество

1

142443A2

SHIELD

1шт.

Models with Wheels

1шт.

1a

226463A1

SHIELD

Not Illustrated

1шт.

Models with Track Attachment

1шт.

2

142450A2

SUPPORT

Lower

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

142451A2

SUPPORT

Side

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

142452A2

SUPPORT

Upper

1шт.

9

182240A2

BRACKET

1шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

142453A1

ANGLE

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

142454A1

BRACKET

1шт.

17

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

142455A1

TUBE,13.5 mm ID

1шт.

20

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

22

189361A1

GUARD

Includes Decals, See Figure 09H-23, Ref. 2, Ref. 3, Serial Range: -JJC0267149

1шт.

Models with Wheels

1шт.

22

368361A1

GUARD

Includes Decals, See Figure 09H-23, Ref. 2, Ref. 3, Must also order 356467A1, Ref. 28A; 360482A1, Ref. 35A, Start Serial: JJC0267150

1шт.

Models with Wheels

1шт.

22a

229811A1

SHIELD

Includes Decals, See Figure 09H-23, Ref. 2, Ref. 3, Serial Range: -JJC0267149

1шт.

Models with Track Attachment

1шт.

22a

368376A1

GUARD

Includes Decals, See Figure 09H-23, Ref. 2, Ref. 3, Must also order 356467A1, Ref. 28A; 360482A1, Ref. 35A, Start Serial: JJC0267150

1шт.

Models with Track Attachment

1шт.

23

142588A1

LOCK

1шт.

24

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

96860C1

KNOB

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

142471A2

SUPPORT

Upper, Serial Range: -JJC0267149

1шт.

28a

356467A1

SUPPORT

RH Upper, Door, Start Serial: JJC0267150

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30a

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

Not Illustrated

2шт.

31

142473A1

PLATE

, Serial Range: -JJC0267149

1шт.

Used with 142471A2, Ref. 28

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

495-21044

WASHER,3/8"

2шт.

35

142474A2

SUPPORT

Lower, Serial Range: -JJC0267149

1шт.

35a

360482A1

SUPPORT

Lower RH, Start Serial: JJC0267150

1шт.

36

142477A2

SHEET

1шт.

37

142478A2

BRACKET

2шт.

38

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

40

182838A2

PLATE

1шт.

41

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

43

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

44

495-21050

WASHER,7/16"

2шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
