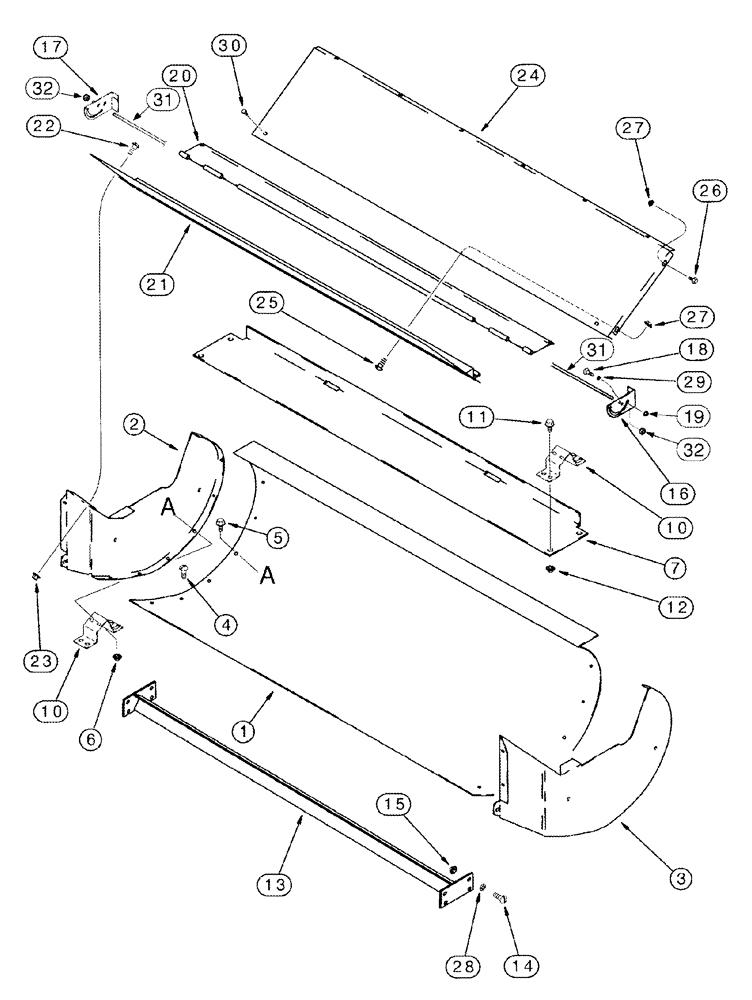

Запчасти Case IH 2388 (09C-04) - CLEANING FAN - HOUSING (15) - BEATER & CLEANING FANS

1

1347466C1

HOUSING

1шт.

2

1347012C2

PLATE

LH

1шт.

3

1347013C2

PLATE

RH

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

7

1989627C2

SUPPORT

Front

1шт.

10

1541543C1

BRACKET

Front

2шт.

11

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191928C1

SUPPORT

Rear

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

15

231-5146

FLANGE NUT,3/8"-16

6шт.

16

1989694C2

PLATE

RH

1шт.

17

1989693C2

PLATE

LH

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

1347030C1

HOOD

1шт.

21

1541547C1

PLATE

Upper

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

1989340C1

PLATE

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

11шт.

28

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

29

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

30

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

2шт.

31

185197C1

ROD

1шт.

32

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.
