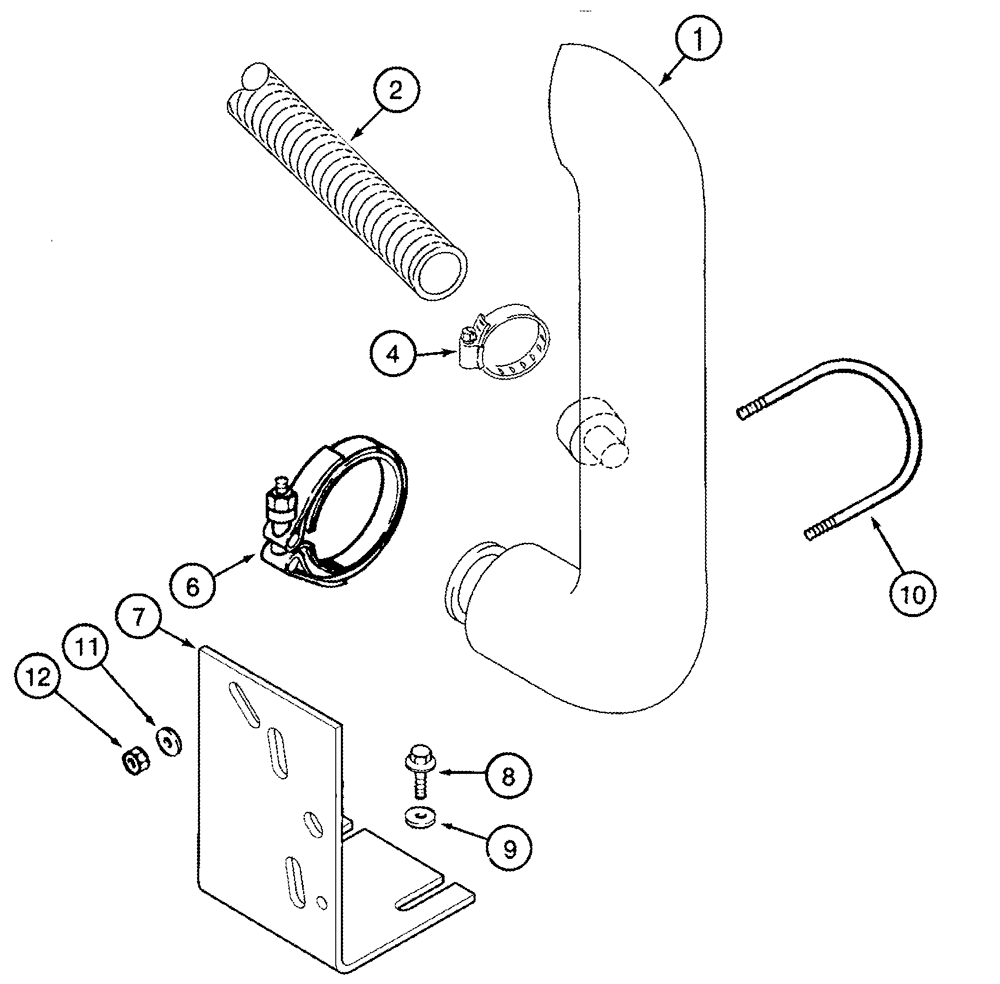

Запчасти Case IH 2388 (02-22) - EXHAUST SYSTEM - PIPE - BTW JJC0267150 & JJC0272999 (01) - ENGINE

1

364150A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

254672A1

HOSE

560 mm (22"), Air Cleaner Aspirator

1шт.

4

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

3шт.

6

A170807

CLAMP,102mm ID

Includes Hardware

1шт.

7

84569C8

SUPPORT TUBE

1шт.

8

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

9

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

10

117410A2

U-BOLT

3/8"

1шт.

11

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

12

231-4116

NUT,3/8"-16, GB

2шт.
