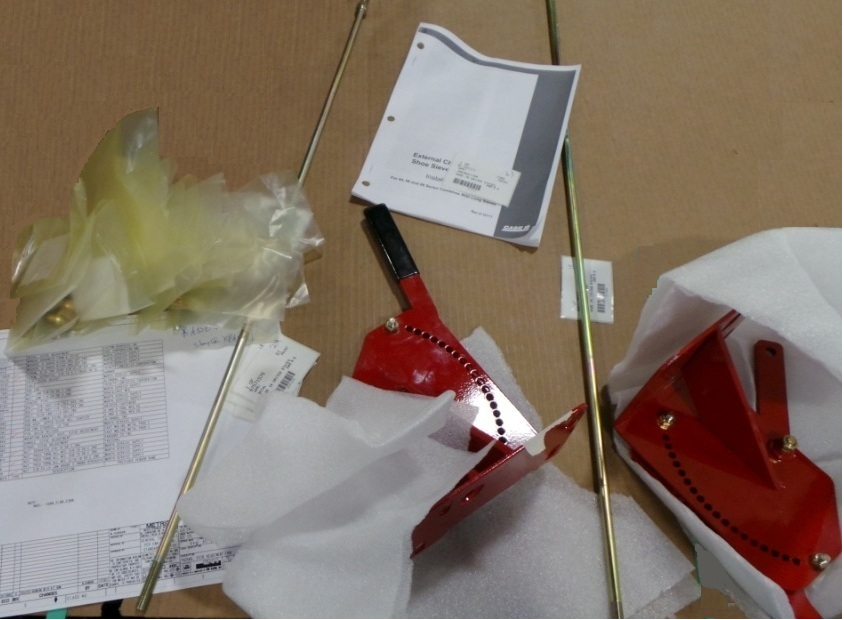

Запчасти Case IH 2388 (09B-47) - KIT SIEVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

427332A1

PACKAGE

Incl 2 - 25

1шт.

2

6-12111

INSTRUCTION

1шт.

3

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

4

280736

NUT,5/16"-18, GC

4шт.

5

88902

NUT,3/8"-16

6шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

7

399763A2

PLATE

Sieve Adjustment

2шт.

8

399778A2

ADJUSTABLE SIEVE

Handle Sieve Adjustment

2шт.

9

399898A4

BRACKET

2шт.

10

400310A1

PIN

2шт.

11

403123A1

BALL JOINT,3/8" - 24

LH Thread

2шт.

12

407139A2

ADJUSTMENT ROD

Upper Sieve Adjustment

1шт.

13

407140A2

ADJUSTMENT ROD

Lower Sieve Adjustment

1шт.

14

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

15

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

416491A2

SPACER

4шт.

17

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

18

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

6шт.

19

427179A1

BALL JOINT HEAD,3/8" - 24

RH Thread

2шт.

20

427336A1

CABLE,457.2mm L

2шт.

21

433741A1

GRIP

2шт.

22

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

6шт.

23

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

24

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

25

87571576

DECAL

2шт.
