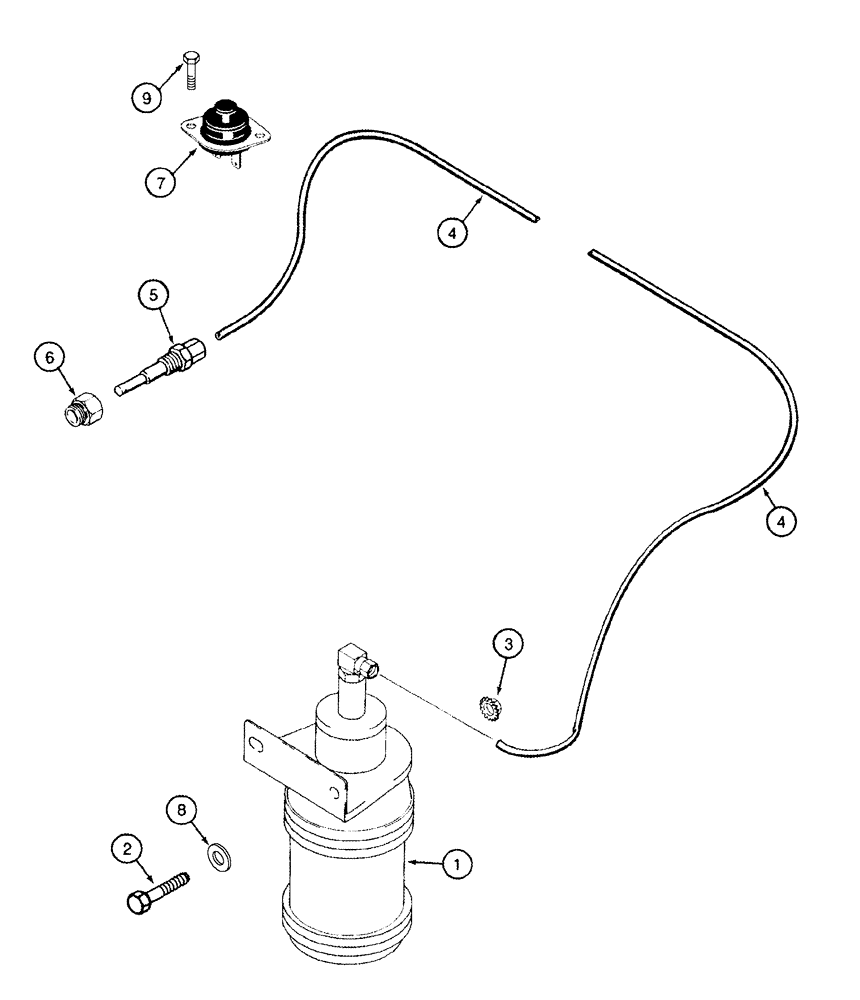

Запчасти Case IH 2388 (02-20) - ETHER START SYSTEM (01) - ENGINE

1

185552A2

SOLENOID

12V, Includes 1A

1шт.

1a

190752A1

HOUSING

Not Illustrated

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

, Serial Range: -JJC0272999

2шт.

2

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

, Start Serial: JJC0273000

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

86829C1

PLASTIC-RUBBER TUBE,0.125" OD x 14" L

356 mm (14"), Cut from 1954063CX, Serial Range: -JJC0272999

1шт.

4

87402718

PLASTIC-RUBBER TUBE,.125" OD

2438 mm (96"), Cut from 1954063CX, Start Serial: JJC0273000

1шт.

5

A172900

NOZZLE CAP

1шт.

6

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

7

D67872

SWITCH

Ether Start

1шт.

8

495-81120

WASHER,.344" x 1 1/4" x .120"

2шт.

9

281-5358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.
