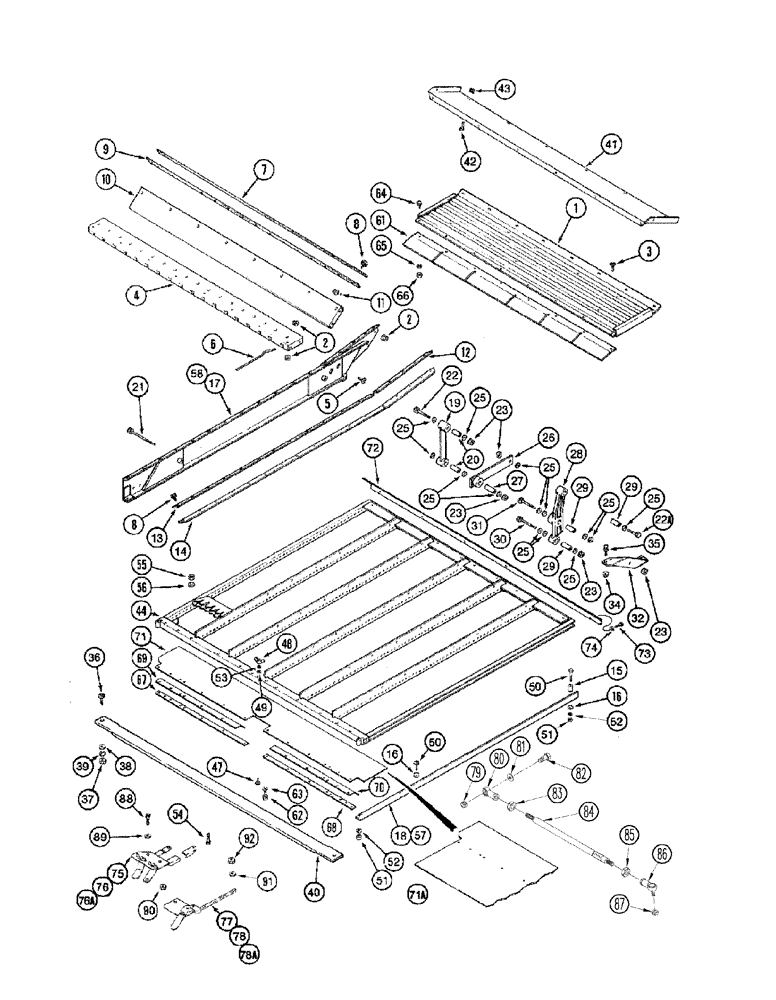

Запчасти Case IH 2388 (09B-19) - CHAFFER - SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192057C1

GRAIN PAN

Grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

4

1312969C1

SUPPORT

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

Short

27шт.

Long and short fingers, Ref. 6, are installed alternately on Ref. 4.

1шт.

Long fingers only are generally used in heavy crop conditions.

1шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

Long

27шт.

Long and short fingers, Ref. 6, are installed alternately on Ref. 4.

1шт.

Long fingers only are generally used in heavy crop conditions.

1шт.

7

192050C2

BAR

RH

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1шт.

9

192049C1

SEALING STRIP

RH

1шт.

10

192045C1

SUPPORT

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

192052C3

BAR

Short, RH

2шт.

13

1325332C2

BAR

Long

2шт.

14

1325331C1

SEALING STRIP

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8" ID x 1"

4шт.

16

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

17

1322452C2

RAIL

Chaffer, LH

1шт.

18

1325333C3

SUPPORT

LH

1шт.

19

1957455C1

ARM

Includes 20

2шт.

20

1330324C1

BUSHING

2шт.

21

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

2шт.

22

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

22a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

23

232-41110

NUT,5/8"-11, GC

10шт.

23

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

25

495-11066

WASHER,5/8", SAE

28шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

2шт.

26

1330357C1

ARM

Includes 27

2шт.

27

1330324C1

BUSHING

1шт.

28

1957460C2

LEVER

Includes 29

2шт.

29

1330323C2

BUSHING

5/8" x 1-1/2" x 2-57/64"

3шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

2шт.

32

1968827C1

SUPPORT

LH

1шт.

33

1968828C1

SUPPORT

RH, Not Illustrated

1шт.

34

231-5146

FLANGE NUT,3/8"-16

8шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

39

492-11031

LOCK WASHER,5/16"

1шт.

40

1322458C3

SUPPORT

1шт.

41

192065C1

SUPPORT

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

14шт.

42

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

44

1322673C5

GRAIN SIEVE

1-5/8", Closz Slat Chaffer, Serial Range: -JJC0268799

1шт.

44

1322673C6

GRAIN SIEVE

1-5/8", Closz Slat Chaffer, Includes 76, 77, 88 - 93, If Used, Start Serial: JJC0268800

1шт.

44

374476A1

GRAIN SIEVE

1-5/8", Closz Slat Chaffer, Includes 76A, 78A, 88 - 93, If Used, Serial Range: JJC0270500-JJC0274334

1шт.

44

1322659C5

GRAIN SIEVE

1-5/8", Corn Slat Chaffer, Serial Range: -JJC0268799

1шт.

44

1322659C6

GRAIN SIEVE

1-5/8", Corn Slat Chaffer, Includes 76, 77, 88 - 93, Start Serial: JJC0268800

1шт.

44

1347372C6

GRAIN SIEVE

Petersen Chaffer, Serial Range: -JJC0268799

1шт.

44

1347372C7

GRAIN SIEVE

Petersen Chaffer, Includes 75, 77, 88 - 93, Start Serial: JJC0268800

1шт.

44

1322467C5

GRAIN SIEVE

1-1/8", Closz Slat Adjustable Chaffer, Serial Range: -JJC0268799

1шт.

44

1322467C6

GRAIN SIEVE

1-1/8", Closz Slat Adjustable Chaffer, Includes 75, 77, 88 - 93, Start Serial: JJC0268800

1шт.

44

387443A1

GRAIN SIEVE

1-1/8", Closz Slat Adjustable Chaffer, Includes 76A, 78A, 88 - 93, Serial Range: JJC0270500-JJC0274307

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

2шт.

48

129-409

WING NUT,1/4"-20

3шт.

48

231-4144

NUT,1/4"-20, GB

3шт.

48a

495-11028

WASHER,1/4", SAE

Not Illustrated

2шт.

49

495-21031

WASHER,1/4"

3шт.

50

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

4шт.

51

429-106

NUT,3/8"-16, G8

4шт.

52

392-21038

LOCK WASHER,3/8"

4шт.

53

492-11025

LOCK WASHER,1/4"

3шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

7шт.

54

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

55

232-4115

LOCK NUT,5/16"-18, GC

11шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

14шт.

57

1325334C3

SUPPORT

RH

1шт.

58

1322453C2

RAIL

RH

1шт.

61

1994858C1

COVER

1шт.

62

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

2шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

65

492-11025

LOCK WASHER,1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

8шт.

67

1338345C2

RETAINER

LH

1шт.

68

1338346C1

RETAINER

RH

1шт.

69

1322698C3

ANGLE

LH Rear

1шт.

70

1322699C3

ANGLE

RH Rear

1шт.

71

1979332C4

SEAL,3.05mm Thk

1шт.

With Straw Spreader

1шт.

71a

124004A2

SEAL

1шт.

With Straw and Chaff Spreader

1шт.

72

120001A1

DEFLECTOR

1шт.

73

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

6шт.

74

495-31022

WASHER,#10

6шт.

75

280367A1

LEVER

Rear, Used with 1322467C5, 1347372C6, Ref. 44, Serial Range: -JJC0268799

1шт.

75

280367A2

LEVER

Rear, Used with 1322467C6 & 1347372C7, Ref. 44, Includes 78C, (2 ea) 48, 49, 53, 78B, Start Serial: JJC0268800

1шт.

76

280369A1

LEVER

Rear, Used with 1322673C5, 1322659C5, Ref. 44, Serial Range: -JJC0268799

1шт.

76

280369A2

LEVER

Rear, Used with 1322673C6, 1322659C6, Ref. 44, Includes (2 ea) 48, 49, 53, 78B, Start Serial: JJC0268800

1шт.

76a

418798A1

LEVER

Rear, Used with 387443A1 & 374476A1, Ref. 44, Includes (2 ea) 48, 49, 53, 78B, Serial Range: JJC0270500-JJC0274307

1шт.

77

280365A2

LEVER

Front, Used with 1322467C5, 1322467C6, 1322673C5, 1322673C6, 1322659C5, or 1322659C6, 1347372C7, Ref. 44, Replaces 280365A1, Includes (1 ea) 48, 49, 53, 78B

1шт.

78

280375A1

LEVER

Front, Used with 1347372C6 & 1347372C6, Ref. 44, Includes (1 ea) 48, 49, 53, 78B

1шт.

78a

418799A1

LEVER

Front, Used with 387443A1, Ref. 44, Includes (1 ea) 48, 49, 53, 78B

1шт.

78b

418797A1

BUSHING,10.5mm ID x 16mm OD x 7mm L

3шт.

78c

120667A1

PLATE

Indicator, Double Adjustment Lever, Not Illustrated

1шт.

79

231-4146

NUT,3/8"-16, GB

1шт.

80

427179A1

BALL JOINT HEAD,3/8" - 24

End

1шт.

81

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

82

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

83

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

84

407139A2

ADJUSTMENT ROD

Adjustment, Upper Chaffer Sieve

1шт.

85

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

86

403123A1

BALL JOINT,3/8" - 24

End

1шт.

87

232-4646

LOCK NUT,3/8"-24, GC

1шт.

88

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

88

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

88

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

89

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

90

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

91

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

92

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

93

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

3шт.
