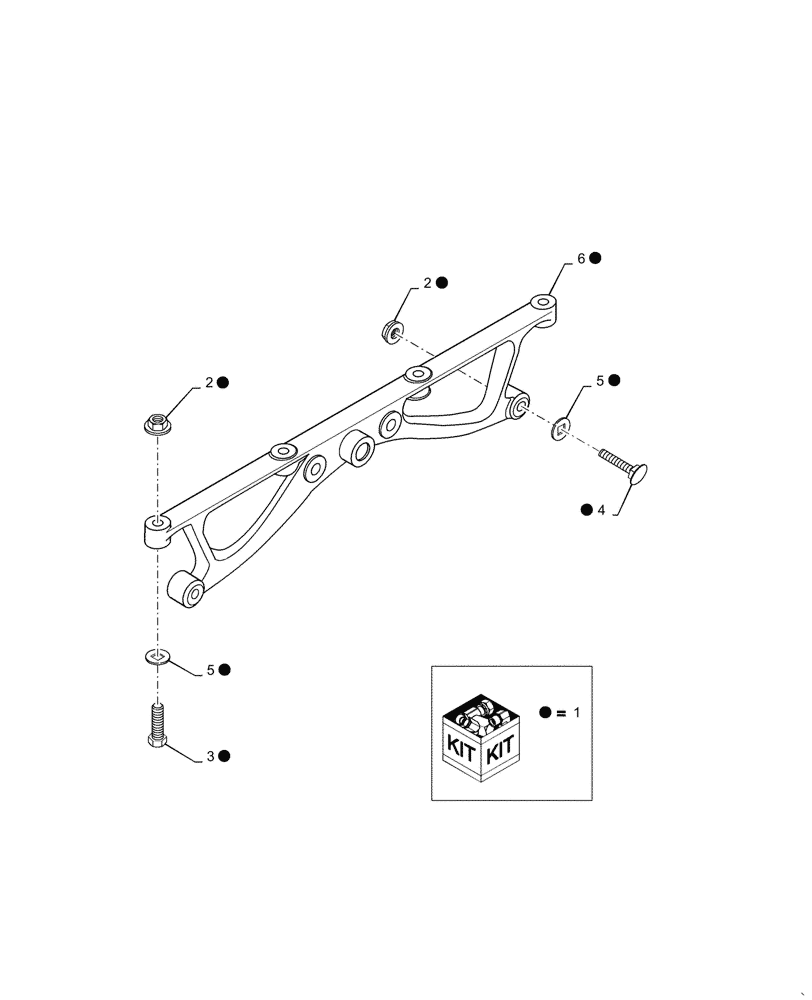

Запчасти Case IH 2388 (09B-17[01]) - KIT SHAKER DRIVE PIVOT SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

B95354

KIT

Includes 2 - 6

1шт.

2

86512371

SERRATED NUT,Flg, USR, 1/2"-13

8шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

12шт.

4

280435

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

4шт.

5

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

4шт.

6

87741801

SUPPORT ASSY.

2шт.
