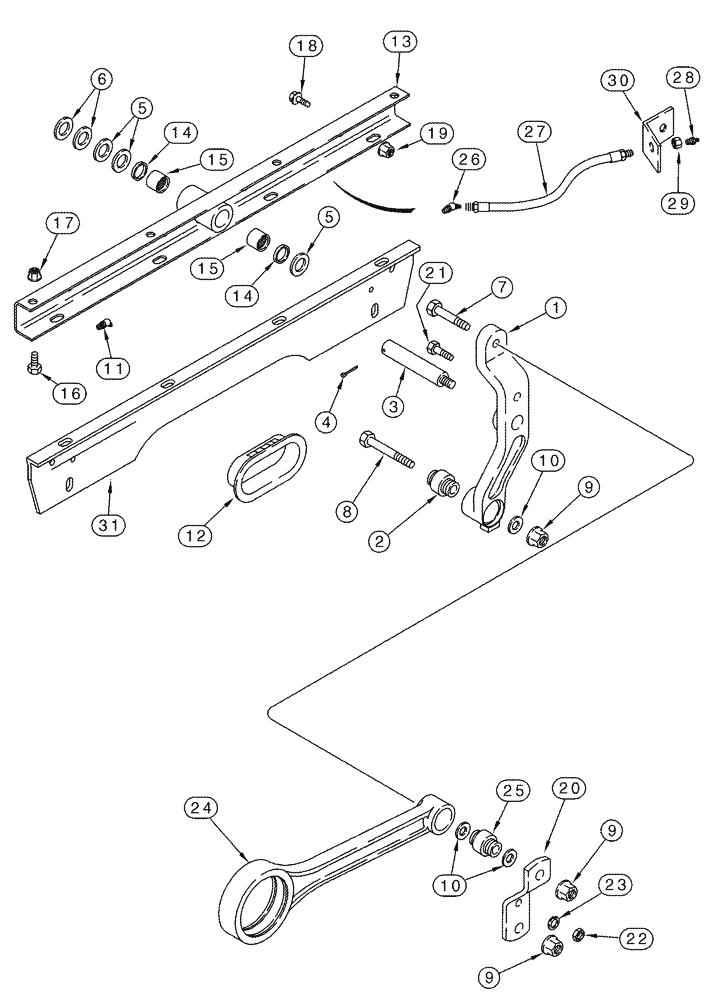

Запчасти Case IH 2388 (09B-16) - CHAFFER - DRIVE HANGER BSN JJC0267149 (14) - ROTOR, CONCANVES & SIEVE

1

1957467C3

LEVER

Includes 2, 3

2шт.

2

1330323C2

BUSHING

5/8" x 1-1/2" x 2-57/64"

1шт.

3

1979251C1

SHAFT

1шт.

4

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

5

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

6шт.

6

495-81056

WASHER,29/32" x 1 1/2" x 3/64

4шт.

7

326-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

2шт.

8

426-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

2шт.

9

232-41110

NUT,5/8"-11, GC

6шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

41/64" x 1-1/4" x 1/8"

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

1302644C2

SEAL

2шт.

13

186651C95

SUPPORT

Includes 14, 15

2шт.

14

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

2шт.

15

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

2шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16a

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

Not Illustrated

4шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

131198A1

BRACKET

2шт.

21

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

22

429-108

NUT,1/2"-13, G8

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

24

1989251C1

ARM

Includes 25

2шт.

25

1979383C1

BUSHING

1шт.

26

219-418

ADAPTER,1/4"-1/8 NPTF

RH Front

1шт.

27

937773R91

HOSE,3.56 mm ID x 304.80 mm,

3.56 mm ID x 304.80 mm

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

1/8" PT

1шт.

30

178960C1

BRACKET

1шт.

31

328053A1

SUPPORT

2шт.
