Запчасти Case IH 2388 (02-19) - AIR CLEANER - AIR INDUCTION SYSTEM - ASN JJC0273000 (01) - ENGINE

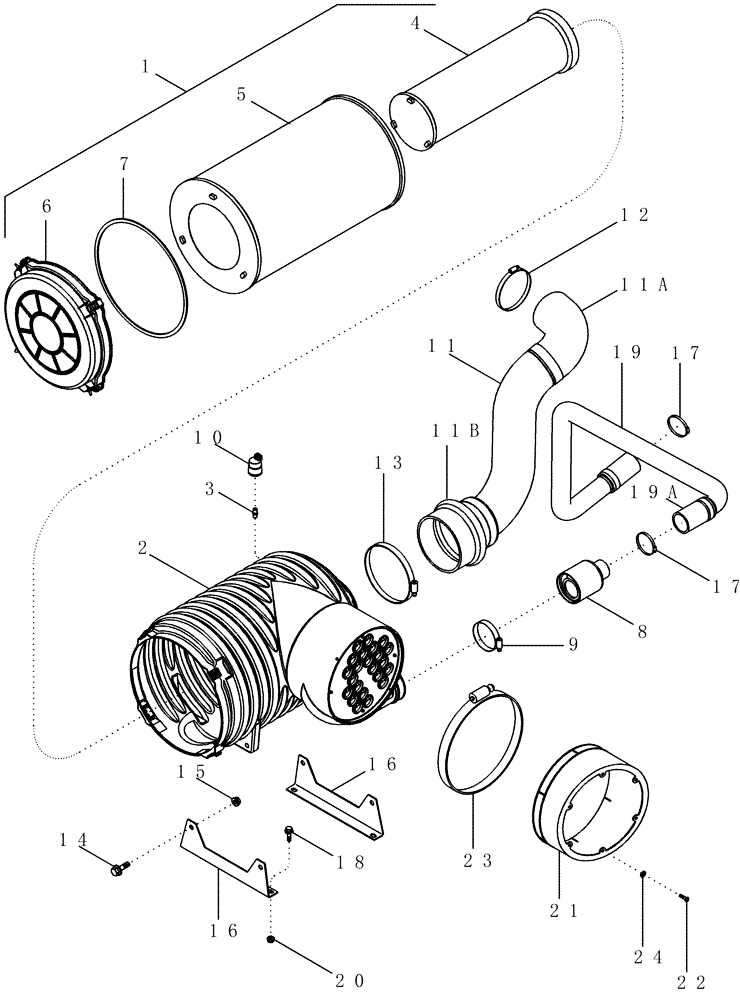

Схема запчастей Case IH 2388 - (02-19) - AIR CLEANER - AIR INDUCTION SYSTEM - ASN JJC0273000 (01) - ENGINE
1
19a
2
11a
21
24
22
19
11
12
6
14
11b
17
23
5
18
16
3
16
7
20
15
4
13
8
9
10
17

Артикул

Название

Примечание

Количество

1

414188A3

AIR CLEANER

Includes 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

D36264

FITTING

1шт.

4

243969A1

ELEMENT

Secondary

1шт.

5

243968A1

ELEMENT

Primary

1шт.

6

87414982

COVER

Includes 7

1шт.

7

87414805

GASKET,336.8mm ID x 347.4mm OD x 11mm Thk

1шт.

8

86983468

CHECK VALVE

Check Valve

1шт.

9

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

10

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

446432A2

AIR INTAKE TUBE

Air Inlet

1шт.

11a

86984234

ELBOW,101.6mm ID x 282.439mm L

1шт.

11b

446434A1

TUBE

1шт.

12

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

13

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

14

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

4шт.

15

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

16

87414123

SUPPORT

2шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

19

87408778

TUBE

1шт.

19a

87402766

HOSE

1шт.

20

131-137

SPRING NUT,Ret, 5/16"-18

4шт.

21

451775A1

DUCT

1шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

6шт.

23

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

24

495-11028

WASHER,1/4", SAE

6шт.

25

231-1444

NUT,1/4"-20, GB

Not Illustrated

6шт.

Выбрано товаров: 28
