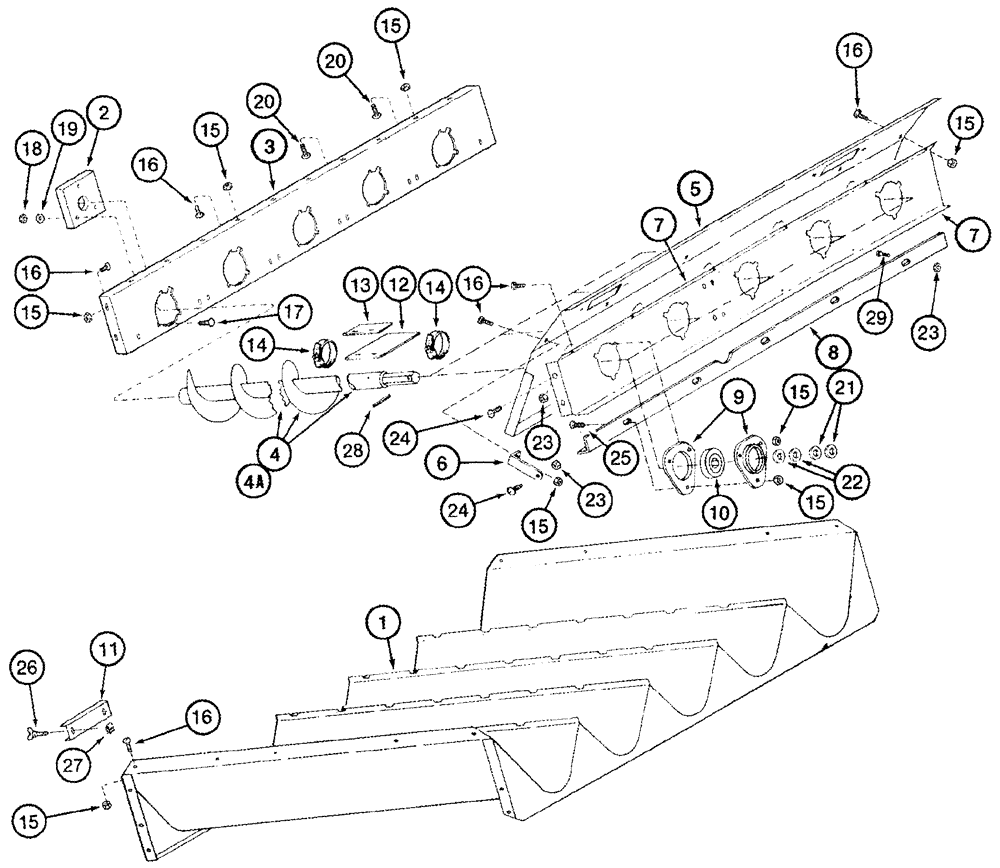

Запчасти Case IH 2388 (09B-14) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

191645C6

TROUGH

1шт.

2

193414C2

BOARD

5шт.

3

1345014C3

SUPPORT

Front

1шт.

4

1308541C1

AUGER

RH Rotation; Standard Equipment BSN JJC0274396

4-5шт.

4

249278A1

AUGER

RH Rotation; Optional Equipment BSN JJC0274396, Standard Equipment ASN JJC0274450

3-4шт.

Extended Wear Rice Machine

1шт.

4a

1309229C1

AUGER

LH Rotation, Mounted in Left Most Position on the Auger Bed, Replaces One 1308541C1, REF 4, Right Hand Rotation Auger; Standard Equipment BSN JJC0274396

1шт.

Corn and Grain Combine

1шт.

4a

282955A1

AUGER

LH Rotation, Mounted in Left Most Position on the Auger Bed, Replaces One 1308541C1, REF 4, Right Hand Rotation Auger; Optional Equipment BSN JJC0274396, Standard Equipment ASN JJC0274450

1шт.

Extended Wear Rice Machine

1шт.

5

1321372C2

SHEET

1шт.

6

193554C1

SUPPORT

2шт.

7

1309226C1

SUPPORT

1шт.

8

188360C1

STIFFENER

1шт.

9

571424R1

FLANGE

10шт.

10

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

5шт.

11

185068C1

COVER

5шт.

12

1302112C1

STRIP

1шт.

13

1302113C1

BAR

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

16

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

17

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

15шт.

18

231-4116

NUT,3/8"-16, GB

15шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

15шт.

20

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

21

495-81191

WASHER,1 5/32" x 2" x .060"

Standard Equipment BSN JJC0274396

10шт.

21

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

Standard Equipment ASN JJC0274450

10шт.

Extended Wear Rice Machine

1шт.

22

495-11106

WASHER,1", SAE

10шт.

23

231-5146

FLANGE NUT,3/8"-16

1шт.

24

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

25

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

19шт.

26

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

10шт.

27

564791R1

SPRING NUT

1/4"

10шт.

28

38-12032

LOCK PIN,5/16" x 2", Slotted

5шт.

29

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.
