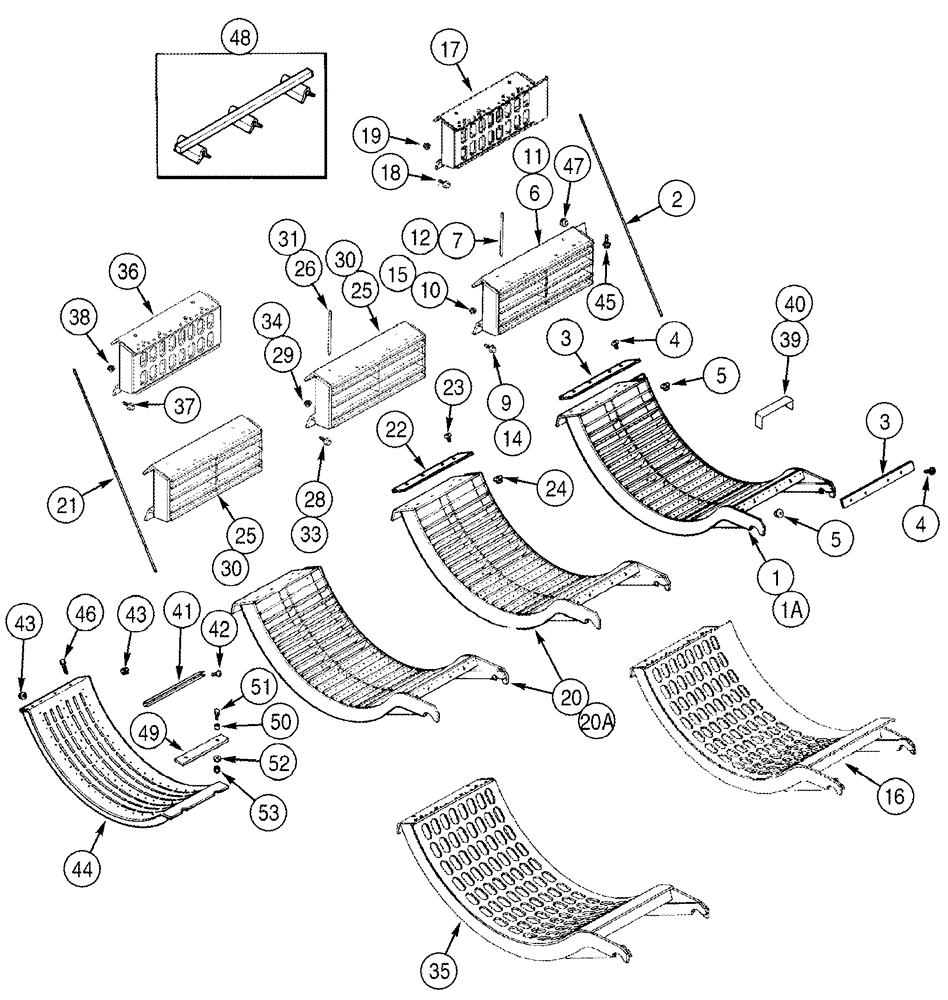

Запчасти Case IH 2388 (09B-11[01]) - CONCAVES - GRATES AND CONCAVES, BSN JJC0270499 (14) - ROTOR, CONCANVES & SIEVE

1

1309204C3

CONCAVE

Front, Small Wire, Includes 2 - 5

1шт.

1

193782C6

CONCAVE

Front, Large Wire, Includes 2 - 5

1шт.

1a

282096A1

CONCAVE

Front, Large Wire, Extended Wear Rice Machines, Includes 2 - 5

1шт.

With Heat Treatment

1шт.

2

188193C2

ROD

30шт.

Use with 1309204C3

1шт.

2

191485C2

ROD

14шт.

Use with 193782C6, 282096A1

1шт.

3

193859C1

PLATE

2шт.

4

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

307988A1

CONCAVE

Small Wire Extension, Front, Includes 7 - 10, Replaces 1318557C1

1шт.

7

1318563C1

SMALL PIN,4.76mm OD x 145mm L

30шт.

8

193859C1

PLATE

Not Illustrated

2шт.

9

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

307986A1

CONCAVE

Large Wire Extension, Front, Includes 12 - 15, Replaces 1318555A1

1шт.

12

1318562C1

PIN

14шт.

13

193859C1

PLATE

Not Illustrated

2шт.

14

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

352729A1

CONCAVE

Front, Smooth Slotted, Includes 16 - 19

1шт.

16

316772A1

CONCAVE

Front, Smooth Slotted

1шт.

17

316773A1

EXTENSION

Extension, Front, Smooth Slotted

1шт.

18

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

4шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1309207C3

CONCAVE

No. 2 and 3 Small Wire, Includes 21 - 24

2шт.

With Heat Treatment

1шт.

20

193783C5

CONCAVE

No. 2 and 3 Large Wire, Includes 21 - 24

2шт.

20a

282097A1

CONCAVE

No. 2 and 3 Large Wire, Extended Wear Rice Machines, Includes 21 - 24

1шт.

With Heat Treatment

1шт.

21

188193C2

ROD

30шт.

Used with 1309207C3

1шт.

21

191485C2

ROD

14шт.

Used with 193783C5, 282097A1

1шт.

22

193859C1

PLATE

2шт.

23

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

8шт.

24

231-5146

FLANGE NUT,3/8"-16

8шт.

25

307989A1

CONCAVE

No. 2 and 3 Small Wire Extension, Includes 26 - 29, Replaces 1318558C1

2шт.

26

1318563C1

SMALL PIN,4.76mm OD x 145mm L

14шт.

27

193859C1

PLATE

Not Illustrated

2шт.

28

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

307987A1

CONCAVE

No. 2 and 3 Large Wire Extension, Includes 31 - 33, Replaces 1318556C1

2шт.

31

1318562C1

PIN

14шт.

32

193859C1

PLATE

Not Illustrated

2шт.

33

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

4шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

352730A1

CONCAVE

No. 2 and 3 Smooth Slotted, Includes 35 - 38

2шт.

35

316778A1

CONCAVE

No. 2 and 3 Smooth Slotted

1шт.

36

316774A1

EXTENSION

No. 2 and 3 Smooth Slotted Extension

1шт.

37

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

1309425C1

CHANNEL

Small Wire

6шт.

40

1309424C1

CHANNEL

Large Wire

6шт.

41

191536C1

CHANNEL

Grate Adjusting, Corn

1шт.

Used with 191535C2

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

44

191535C2

GRATE

Slotted, Grain

3шт.

44

1302563C1

CONCAVE

Keystock, Corn and Rice

3шт.

44

1319405C1

GRATE

Smooth

1шт.

45

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

1шт.

46

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

1шт.

47

231-5146

FLANGE NUT,3/8"-16

1шт.

48

1324046C3

BAR

Small Wire

1шт.

49

186784C2

BAR

1шт.

50

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

51

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

52

495-11053

WASHER,1/2", SAE

6шт.

53

232-4118

NUT,1/2"-13, GC

6шт.
