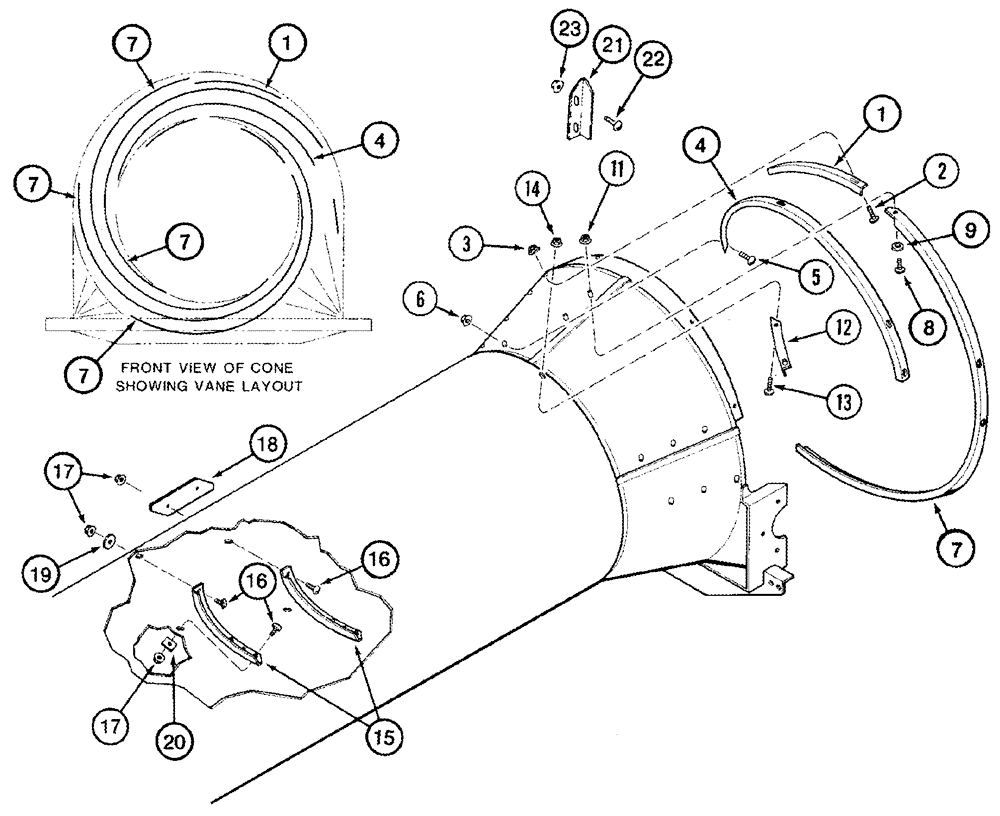

Запчасти Case IH 2388 (09B-10A[02]) - VANE - EXTENDED WEAR - OPTIONAL BTW JJC0270500 & JJC0274396, STANDARD ASN JJC0274450 (14) - ROTOR, CONCANVES & SIEVE

1

347913A1

VANE

Vane, Cone Extension

1шт.

2

433734A1

BOLT

T-Type

2шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

4

418655A2

STIFFENER

Vane, Cone Short

1шт.

5

433734A1

BOLT

T-Type

5шт.

6

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

7

418654A2

VANE

Vane, Cone Front

4шт.

8

433734A1

BOLT

T-Type, Non Rice Machines

24шт.

8

433734A1

BOLT

T-Type, Rice Machines

56шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

Non Rice Machines

24шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

Rice Machines

56шт.

12

411518A2

VANE

Vane, Transport Short Extension

3шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8" x 1"

6шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

347917A1

VANE

Vane, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

Tee

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32" x 2-1/2" x 5/32"

11шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32" x 1-1/2" x 3/16"

2шт.

21

347918A1

STIFFENER

Vane, Cone Pocket

1шт.

22

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

2шт.

23

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

428875A2

KIT

AFX Cone Vanes, Stainless Steel, Includes 1, 4, 7, 8 (56), 11 (56), 12 (2), 21

1шт.
