(09B-10A[01]) - VANE - EXTENDED WEAR - OPTIONAL, BSN JJC0270499

Запчасти Case IH 2388 (09B-10A[01]) - VANE - EXTENDED WEAR - OPTIONAL, BSN JJC0270499 (14) - ROTOR, CONCANVES & SIEVE

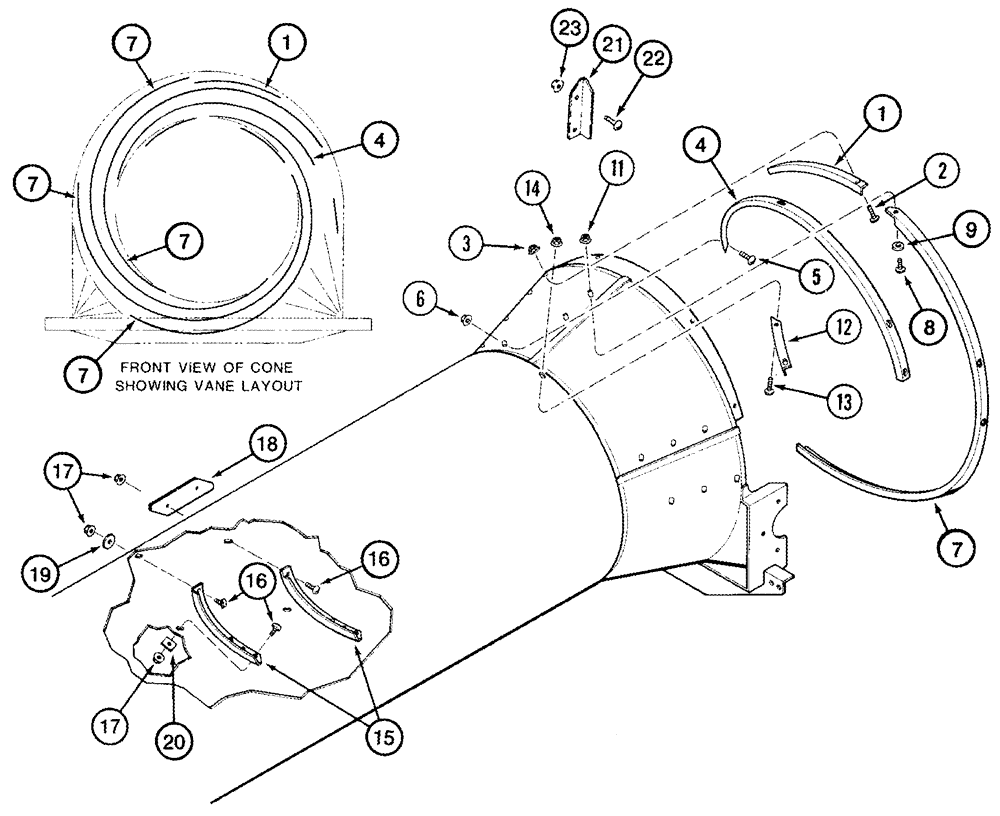

Схема запчастей Case IH 2388 - (09B-10A[01]) - VANE - EXTENDED WEAR - OPTIONAL, BSN JJC0270499 (14) - ROTOR, CONCANVES & SIEVE
17
7
15
21
4
14
7
16
5
2
8
18
9
20
12
11
7
17
16
4
23
1
6
19
22
7
7
13
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

347913A1

VANE

Vane, Cone Extension, Heavy Duty

1шт.

2

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

2шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

4

347914A1

VANE

Vane, Cone, Short, Heavy Duty

1шт.

5

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

5шт.

6

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

7

347915A1

VANE

Vane, Cone, Front, Heavy Duty

4шт.

8

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

24шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

11

231-5346

FLANGE NUT,Flg, 3/8"-16

24шт.

12

347916A1

STIFFENER

Vane, Transport Extension, Heavy Duty

3шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8 x 1

6шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

347917A1

VANE

Vane, Transport, Heavy Duty

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32" x 2-1/2" x 5/32"

10шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32" x 1-1/2" x 3/16"

2шт.

21

347918A1

STIFFENER

Vane, Cone Pocket, Heavy Duty

1шт.

22

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

2шт.

23

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

356370A1

HOUSING

Extended Wear, Includes 347913A1, 347914A1, 347915A1, 347918A1, Also Includes 348510A1, Ref. 6A, See Figure 09B-10, Also Includes Hardware

1шт.

301857A1

HOUSING

Extended Wear Rice Machines, Includes 249251A1, 249253A1, 249255A1, 255503A1, Also Includes 249249A1, REF 6B, See Figure 09B-10, Also Includes Hardware, No Longer Used, Order 301857A2

1шт.

301857A2

CONE

Extended Wear Rice Machines, Includes 347913A1, 347914A1, 347915A1, 347918A1, Also Includes 249249A1, Ref. 6B, See Figure 09B-10, Also Includes Hardware

1шт.

348502A1

KIT

Cone and Vanes, Heavy Duty, Includes 347918A1, 347913A1, 347914A1, 347915A1 and Hardware

1шт.

348503A1

KIT

Stainless Steel Cage Vanes, Includes 347917A1, 347916A1 and Hardware

1шт.
