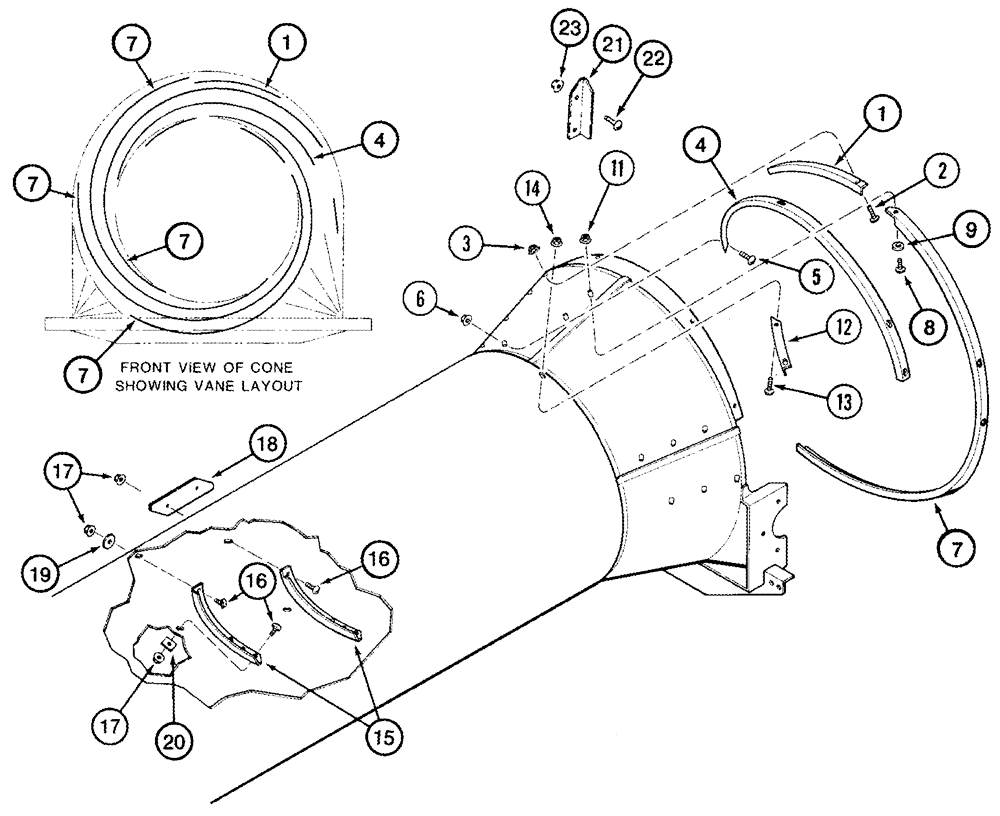

Запчасти Case IH 2388 (09B-10[01]) - VANE - STANDARD, BSN JJC0270499 (14) - ROTOR, CONCANVES & SIEVE

1

193395C1

BLADE

Vane, Cone Extension

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

186777C4

BLADE

Vane, Cone, Short

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4-5шт.

7

188192C3

STIFFENER

Vane, Cone, Front

4шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

23шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

11

231-1445

NUT,5/16"-18, GB

1шт.

12

193383C1

SUPPORT

Vane, Transport Extension

3шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

6шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

186075C2

SUPPORT TUBE

Vane, Transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

13/32" x 2-1/2" x 5/32"

10шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

13/32" x 1-1/2" x 3/16"

2шт.

21

186778C1

BLADE

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
