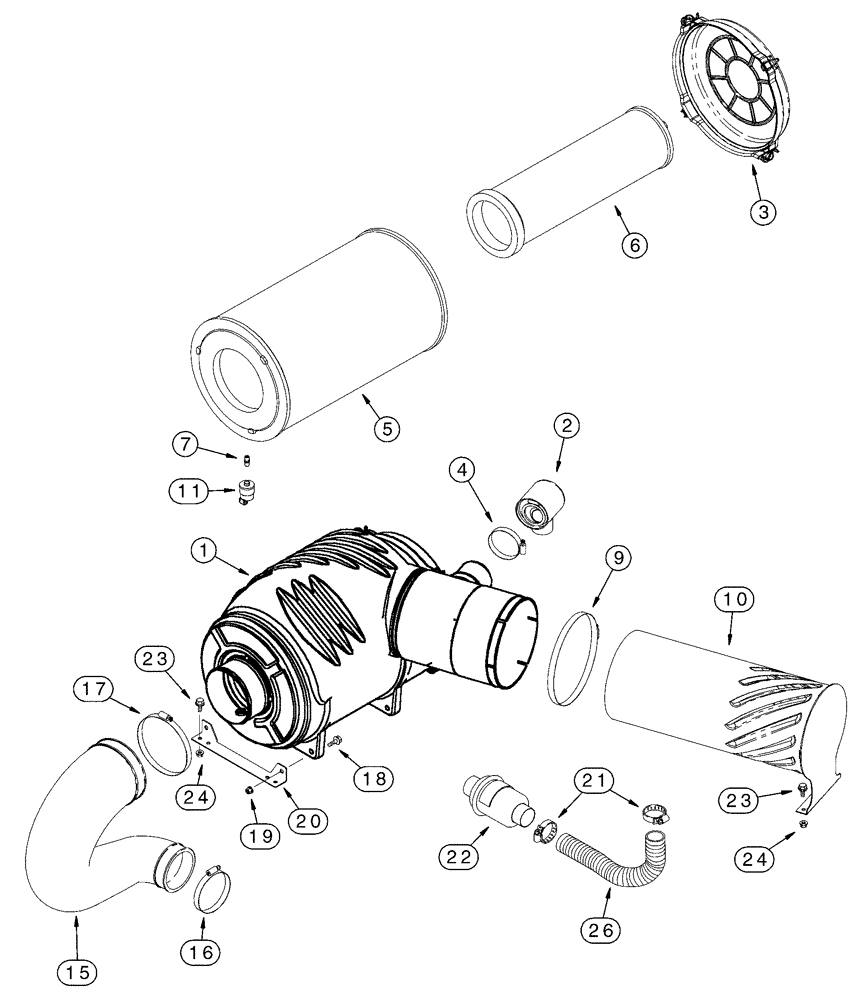

Запчасти Case IH 2388 (02-17) - AIR CLEANER - AIR INDUCTION SYSTEM - BSN JJC0267149 (01) - ENGINE

275283A3

AIR CLEANER

Includes 1A - 11

1шт.

1

243998A4

BODY

Includes 2 - 7, Component of 275283A3

1шт.

2

249788A1

VALVE

Check

1шт.

3

259988A1

FILTER COVER

1шт.

4

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

1шт.

5

243968A1

ELEMENT

Primary

1шт.

6

243969A1

ELEMENT

Secondary

1шт.

7

D36264

FITTING

1шт.

9

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

10

275332A1

PRECLEANER

1шт.

11

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

15

259350A2

INTAKE AIR HOSE,101.60 mm ID, 152.40 mm ID x 379.50 mm

1шт.

16

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

17

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

4шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

20

258967A1

SUPPORT

2шт.

21

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

22

245976A1

VENT

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

26

254670A1

HOSE

375 mm (14-3/4"), Precleaner to Check Valve

1шт.
