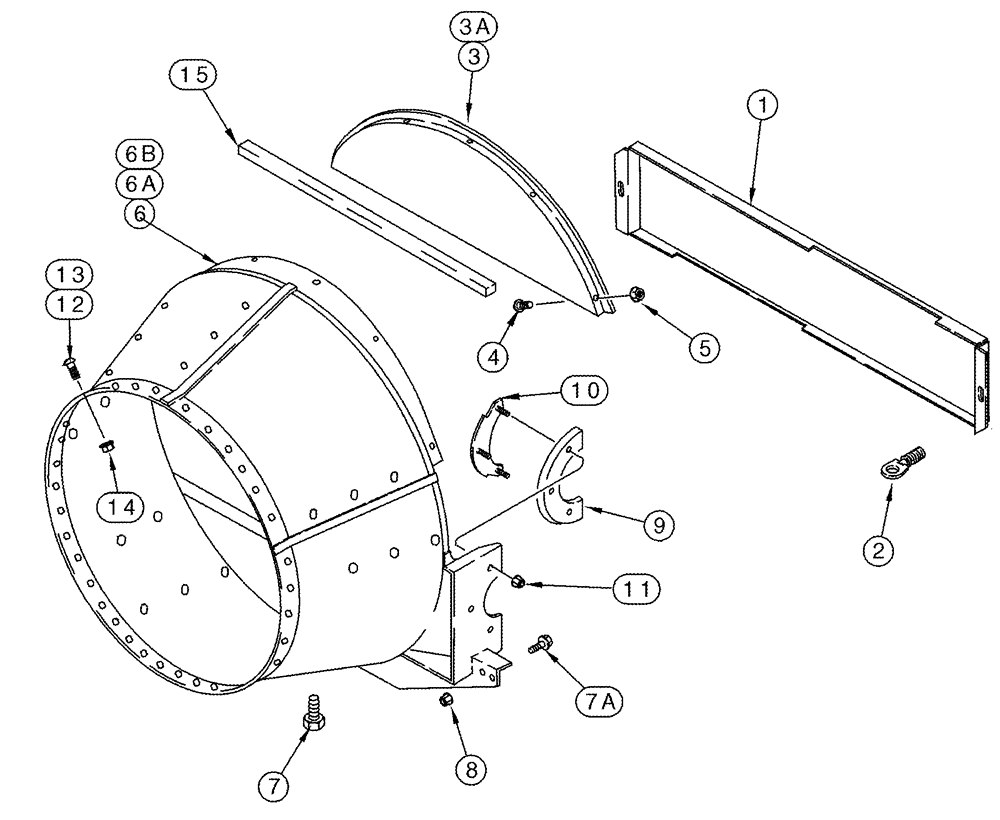

Запчасти Case IH 2388 (09B-07) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

193608C6

SHEET

1шт.

2

188029C1

LATCH

2шт.

3

193607C3

SUPPORT

1шт.

3a

291127A1

GUARD

Extended Wear Rice Machines

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

194049A2

CONE

Standard, Includes 7, Serial Range: -JJC0270499

1шт.

6

428242A1

CONE

Standard, Includes 7, Start Serial: JJC0270500

1шт.

6a

198102A2

CONE

Extended Wear, Includes 7, Serial Range: -JJC0270499

1шт.

6a

428873A1

CONE

Extended Wear, Includes 7, Start Serial: JJC0270500

1шт.

6b

249249A1

HOUSING

Extended Wear Rice Machines, Serial Range: -JJC0270499

1шт.

With Heat Treatment

1шт.

6b

428872A1

CONE

Extended Wear Rice Machines, Includes 7, Start Serial: JJC0270500

1шт.

With Heat Treatment

1шт.

7

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1шт.

7a

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

195202C1

SEAL

2шт.

10

195409C1

PLATE

Three Stud

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

12

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8" x 1-1/4"

2шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

3/8" x 1"

23шт.

14

231-5146

FLANGE NUT,3/8"-16

25шт.

15

233482A1

DOOR SEAL,380mm L

2шт.

16

419957A1

SEAL

Seal, Rear Service Deck Connection, Cut 1260 mm from 195917C2, Not Illustrated

1шт.

428878A1

PACKAGE

Extended Wear, Cone with Vanes, Includes 428873A1, Ref. 6A, See Figure 09B-10, Also Includes 347913A1, 418655A2, 418654A2, 347918A1 and Hardware.

1шт.

428877A1

CONE

Rice, Cone with Vanes, Includes 428872A1, Ref. 6B, See Figure 09B-10 Includes 347913A1, 418655A2, 418654A2, 347918A1 and Hardware.

1шт.

443123A1

KIT

Cone with Vanes, Extended Wear Cone / Standard 3/16" Vanes, Includes 428873A1, Ref. 6A, See Figure 09B-10 (02), 428282A1, 428280A2, 428279A2, 428281A1 and Hardware.

1шт.

437318A1

PACKAGE

Standard Cone / Standard 3/16" Vanes, Includes 428242A1, Ref. 6, See Figure 09B-10 (02) 428282A1, 428280A2, 428279A2, 428281A1 and Hardware.

1шт.
