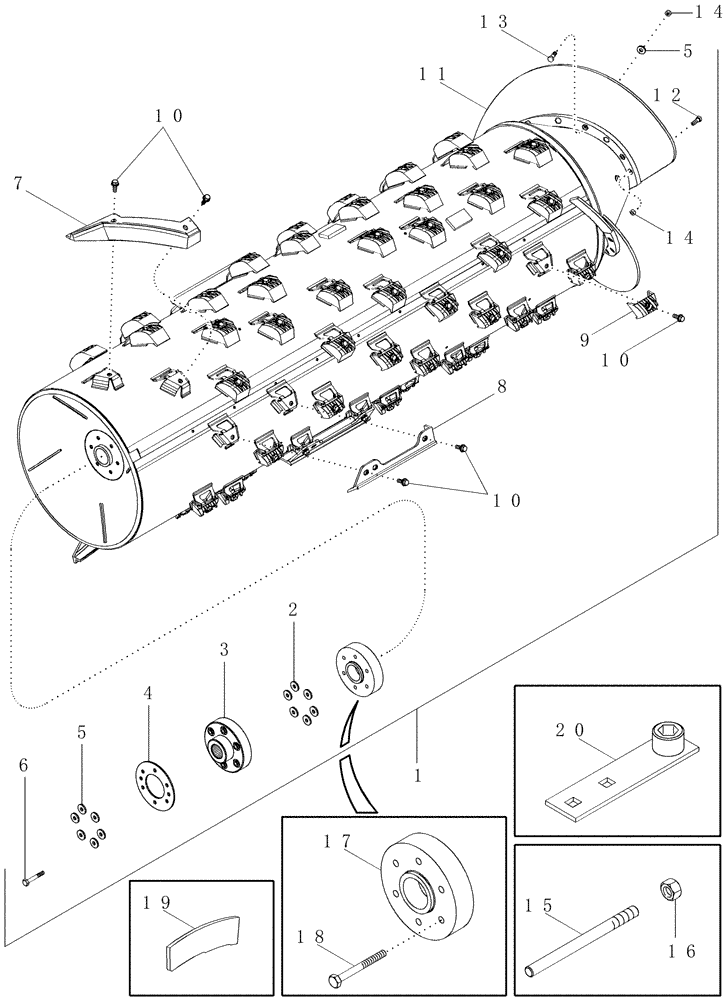

Запчасти Case IH 2388 (09B-06[03]) - ROTOR ASSY - SPECIALTY AFX, ASN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE

446448A2

ROTOR

Assy, AFX Speciality Grain, Standard Wear, Includes 1 - 14 (Shown), Start Serial: JJC0273000

1шт.

For Model Year 2003 and After Also Supply Kit 86990684

1шт.

446447A2

ROTOR

Assy, AFX Speciality Grain, Extended Wear, Includes 1 - 14, Start Serial: JJC0273000

1шт.

For Model Year 2003 and After Also Supply Kit 86990684

1шт.

446493A2

ROTOR

Assy, AFX Speciality Corn, Standard Wear, Includes 1 - 14, Start Serial: JJC0273000

1шт.

For Model Year 2003 and After Also Supply Kit 86990684

1шт.

446449A2

ROTOR

Assy, AFX Speciality Rice, Extended Wear, Includes 1 - 14, Start Serial: JJC0273000

1шт.

For Model Year 2003 and After Also Supply Kit 86990684

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR ASSY, with Supports and Nuts

1шт.

2

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

Flat Hardened, Serial Range: -JJC0272999

6шт.

2

195-81030

WASHER

17/32" x 1-1/2" x 3/16", Start Serial: JJC0273000

6шт.

3

1345307C1

COUPLING

17 Internal Teeth

1шт.

4

221189A1

SPACER

Rotor Load Ring

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

18-20шт.

6

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

7

1327676C1

BAR

Kicker, Standard Wear

2шт.

Used with 409922A2, 446448A2, 446493A2

1шт.

7

1968968C2

BAR

Kicker, Extended Wear

2шт.

Used with 412060A2, 443533A1, 446447A2, 446449A2

1шт.

8

1318976C2

BAR,Straight Seperator

Straight Separator, Standard Wear

4шт.

Used with 409922A2, 446448A2, 446493A2

1шт.

8

1968969C3

BAR

Straight Separator, Extended Wear

4шт.

Used with 412060A2, 446447A2

1шт.

9

1309336C2

RASP BAR

Without Rear Spike, Standard Wear

1шт.

Used with 409922A2 (32), 446448A2 (70), 446493A2 (62)

1шт.

9

278821A2

RASP BAR

Without Spike, Extended Wear, Grain

1шт.

Used with 412060A2 (32), 446447A2 (70)

1шт.

9

278820A4

RASP BAR

With Spike, Extended Wear, Rice

1шт.

Used with 443553A1 (40), 446449A2 (78)

1шт.

9

111709A1

RASP BAR

Rasp, Smooth

1шт.

Used with 409922A2, 446448A2, 446493A2

1шт.

10

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

11

434525A3

KIT

AFX Rotor Inlet Flight with Extensions, Includes 11(2), 12 (16), 13 (12), 14 - 16, 19, 5 (12)

1шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

13

61-45016

SCREW,1/2" - 13 x 1"

, Serial Range: -JJC0270500

2шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

, Start Serial: JJC0273000

12шт.

14

199528A1

NUT

16шт.

15

86989978

ROD

Installation Guide, AFX Inlet Flight

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

1шт.

86990684

KIT

Kit, Rotor Drive Spacer, Includes 17, 18

1шт.

17

443256A1

SPACER

1шт.

18

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.

19

446451A2

PLATE

Inlet Flight Extension

2шт.

20

87417745

SPECIAL WRENCH

Rasp Bar

1шт.
