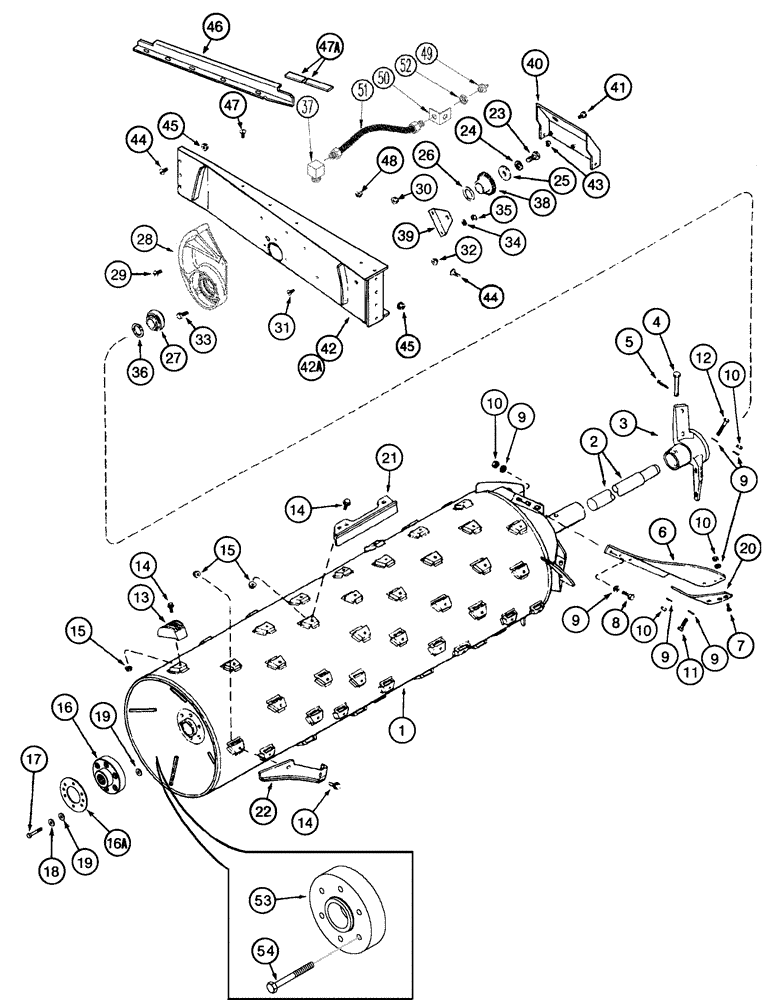

Запчасти Case IH 2388 (09B-06[02]) - ROTOR ASSY - SPECIALTY, ASN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE

256611A3

ROTOR

Assy, Grain, Includes 1 - 22

1шт.

256620A3

ROTOR

Assy, Corn, with Front Separator Bars, Includes 1 - 22

1шт.

256616A3

ROTOR

Assy, Grain with Chrome Bars, Includes 1 - 22

1шт.

352424A2

ROTOR

Rice, Extended Wear Chrome Bars, Includes 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Rotor

1шт.

2

191545C2

SHAFT

1шт.

3

184460C1

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

Rotor Blade, Includes 6 - 12

1шт.

6

1309114C2

BLADE

Impeller, Rotor, 30"

2шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

6шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

26шт.

10

199528A1

NUT

1/2"; 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1309336C2

RASP BAR

Without Rear Spike, Grain & Corn

1шт.

Used with 256611A3 (66), 256620A3 (58)

1шт.

13

278821A2

RASP BAR

Without Spike, Grain with Chrome Bars

66шт.

Used with 256616A3

1шт.

13

278820A4

RASP BAR

Rice with Chrome Bars

74шт.

Used with 352424A2

1шт.

13

111709A1

RASP BAR

Rasp, Smooth, Optional

1шт.

14

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

78шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8, If Used, No Longer Required

1шт.

16

1345307C1

COUPLING

17 Internal Teeth

1шт.

16a

221189A1

SPACER

1шт.

17

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

18

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

6шт.

19

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32" x 1-1/2" x 1/8"

6шт.

20

1309186C3

SUPPORT

Wear, Impeller Blade, Chrome

2шт.

21

1318976C2

BAR,Straight Seperator

Straight Separator, Grain & Corn with Front Separator Bars

1шт.

Used with 256611A3 (4), 256620A3 (8)

1шт.

21

1968969C3

BAR

Straight Separator, Grain with Chrome Coating

4шт.

Used with 256616A3

1шт.

22

1327676C1

BAR

Helical Kicker, Grain & Corn with Front Separator Bars

2шт.

Used with 256611A3, 256620A3

1шт.

22

1968968C2

BAR

Helical Kicker, Rice and Corn with Chrome

2шт.

Used with 256616A3, 352424A2

1шт.

23

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

24

492-11075

LOCK WASHER,3/4"

1шт.

25

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

26

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32" x 2-1/2" x 1/4"

1шт.

27

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

28

253439A3

BEARING HOUSING

Rotor, Extended Wear Rice Machines

1шт.

29

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

35

425-108

NUT,1/2" - 13, Gr 5

3шт.

36

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

1шт.

37

219-418

ADAPTER,1/4"-1/8 NPTF

Hose

1шт.

38

1979965C1

ROTOR

1шт.

39

1301239C1

BRACKET

1шт.

40

182845C5

SHIELD

RPM Sensor

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

42

193384C8

SUPPORT

Front Bearing, Standard Equipment BSN JJC0274396

1шт.

42a

249247A1

SUPPORT

Extended Wear Rice Machines, Optional Equipment BSN JJC0274396, Standard Equipment JJC0274450

1шт.

43

131-872

SPRING NUT,Ret, 3/8"-16

3шт.

44

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

8шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

46

231848A1

RETAINER

1шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

47a

231849A2

DOOR SEAL,995mm L

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

49

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

50

419744A1

BRACKET

1шт.

51

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

52

F53473

LOCK NUT,1/8-27 NPSM

1/8"

1шт.

53

443256A1

SPACER

1шт.

54

326-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

6шт.
