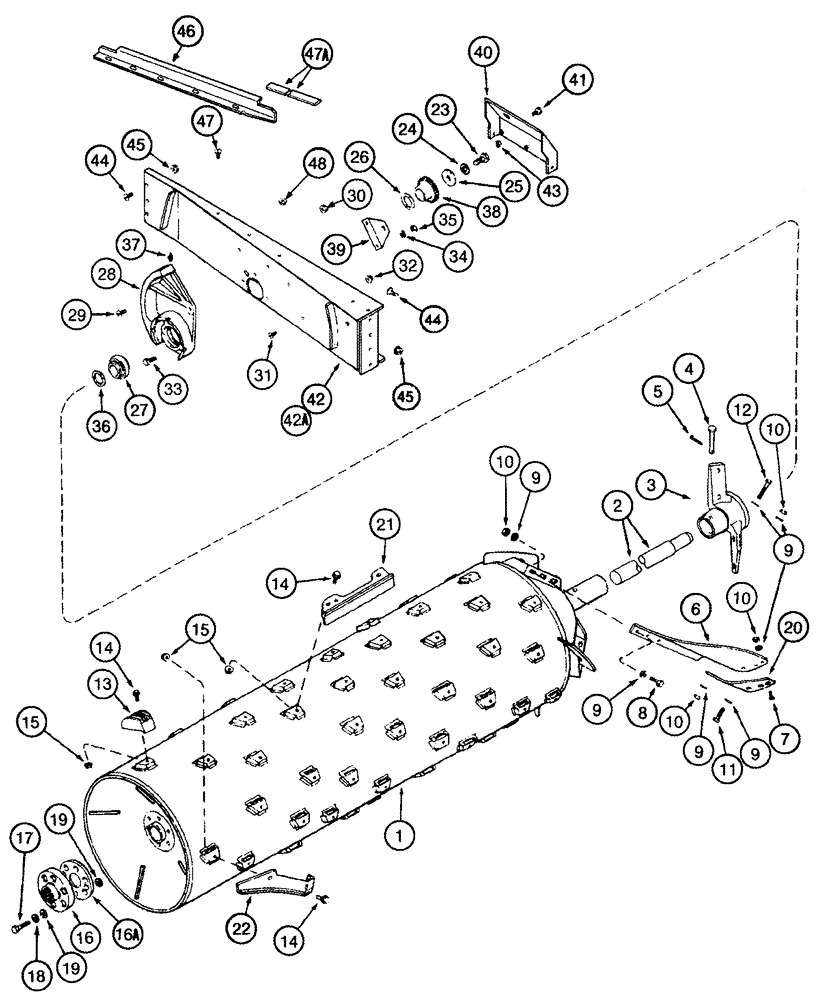

Запчасти Case IH 2388 (09B-06[01]) - ROTOR ASSY - SPECIALTY, BSN JJC0272999 (14) - ROTOR, CONCANVES & SIEVE

256611A1

ROTOR

Grain, Includes 1 - 22

1шт.

256612A1

ROTOR

Rice, Includes 1 - 22

1шт.

256610A1

ROTOR

Corn, Includes 1 - 22

1шт.

256616A2

ROTOR

Grain, Includes 1 - 22

1шт.

256620A1

ROTOR

Corn, Front Separator Bars, Includes 1 - 22

1шт.

352424A1

ROTOR

Extended Wear Rice Machines, Includes 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Rotor

1шт.

2

191545C2

SHAFT

1шт.

3

184460C1

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

Rotor Blade, Includes 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

Blade, Rotor

2шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

6шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

26шт.

10

199528A1

NUT

1/2"; 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1309175C1

BAR

74шт.

Use with 256612A1

1шт.

13

1309336C1

BAR

66шт.

Use with 256610A1, 256611A1, 256620A1

1шт.

13

1968743C2

BAR

Chrome

1шт.

Use with 256616A1

1шт.

13

278820A2

BAR

Chrome

74шт.

Use with 352424A1

1шт.

13

111709A1

RASP BAR

Smooth, Optional

1шт.

14

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2", 8

1шт.

16

1345307C1

COUPLING

17 Internal Teeth

1шт.

16a

221189A1

SPACER

1шт.

17

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

18

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

6шт.

19

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32" x 1-1/2" x 1/8"

6шт.

20

1309186C3

SUPPORT

Chrome

1шт.

21

1968969C3

BAR

Chrome

4шт.

Use with 256616A1

1шт.

21

1318976C2

BAR,Straight Seperator

1шт.

Use with 256610A1, 256611A1, 256620A1

1шт.

22

1327676C1

BAR

2шт.

Use with 256610A1, 256611A1, 256612A1, 352424A1

1шт.

22

1968968C2

BAR

Chrome

2шт.

Use with 256616A1

1шт.

23

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

24

492-11075

LOCK WASHER,3/4"

1шт.

25

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

26

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32" x 2-1/2" x 1/4"

1шт.

27

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

28

253439A3

BEARING HOUSING

Replaces 1309076C1

1шт.

29

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

35

425-108

NUT,1/2" - 13, Gr 5

3шт.

36

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

1шт.

37

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

38

1979965C1

ROTOR

1шт.

39

1301239C1

BRACKET

1шт.

40

182845C4

SHIELD

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

42

193384C8

SUPPORT

1шт.

42a

249247A1

SUPPORT

Extended Wear Rice Machines

1шт.

43

131-872

SPRING NUT,Ret, 3/8"-16

3шт.

44

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

8шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

46

231848A1

RETAINER

1шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

47a

231849A2

DOOR SEAL,995mm L

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
