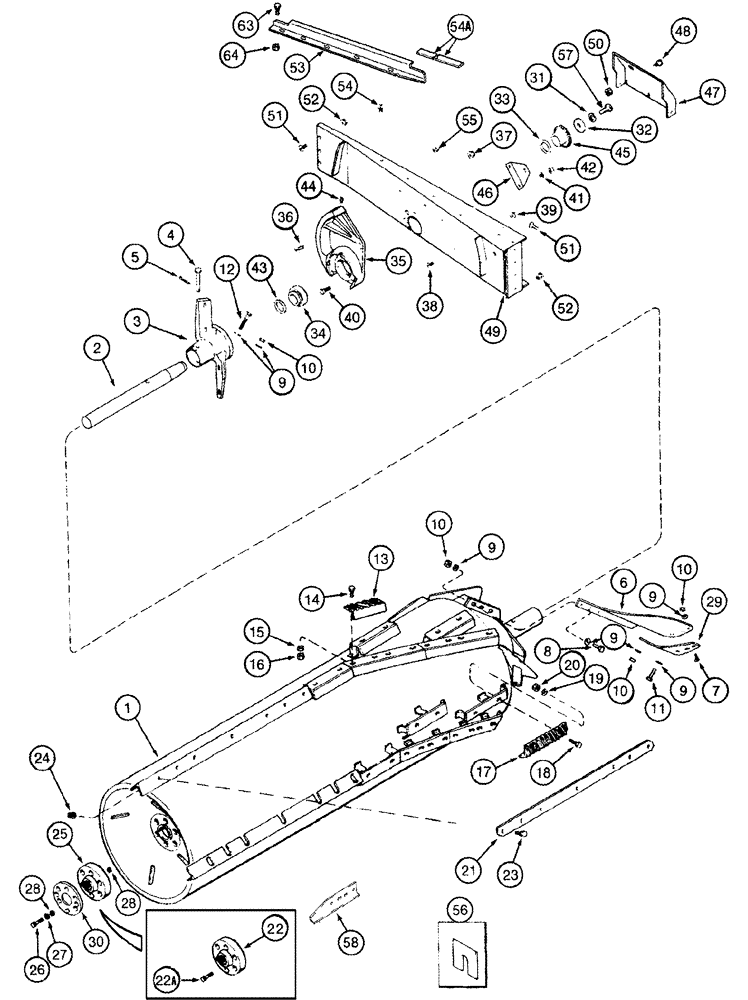

Запчасти Case IH 2388 (09B-05[02]) - ROTOR ASSY - CORN AND GRAIN, ASN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE
![Схема запчастей Case IH 2388 - (09B-05[02]) - ROTOR ASSY - CORN AND GRAIN, ASN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE](https://partsell.ru/storage/images/caseih/390704.png)
№
Артикул
Название
Примечание
Количество
256608A1
ROTOR
Standard Grain, Includes 1 - 21, 23 - 30
1шт.
Without Chrome Bars
1шт.
256614A1
ROTOR
Standard Grain, With Chrome Bars, Includes 1 - 21, 23 - 30
1шт.
With Chrome Bars
1шт.
1
NSS
NOT SOLD SEPARAT
Rotor
1шт.
2
191545C2
SHAFT
1шт.
3
184460C1
IMPELLER
1шт.
4
439-51272
HEADED PIN,3/4" x 4 1/2", G5
1шт.
5
432-1620
COTTER PIN,1/4" x 1 1/4"
1шт.
1957445C3
SET OF BLADES
Rotor Blade, Includes 6 - 12
1шт.
6
NSS
NOT SOLD SEPARAT
Blade, Rotor
2шт.
7
361-45024
HEX SOC SCREW,1/2" - 13 x 1-1/2"
6шт.
8
326-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
6шт.
9
396-41053
WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk
26шт.
10
199528A1
NUT
1/2"; 8
16шт.
11
326-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
2шт.
13
1308830C2
RASP BAR
Rasp
16шт.
Used with 256608A1
1шт.
13
1324581C3
RASP BAR
Rasp, Chrome
16шт.
Used with 256614A1
1шт.
13
1994892C1
RASP BAR
Rasp, Smooth, Helical
16шт.
14
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
32шт.
15
396-41041
WASHER,13/32" x 1 1/8" x .134", HDN
32шт.
16
232-4136
LOCK NUT,3/8"-16, GC
32шт.
17
1308668C1
RASP BAR
Rasp, Straight
12шт.
Used with 256608A1
1шт.
17
1324582C2
RASP BAR
Rasp, Straight, Chrome
12шт.
Used with 256614A1
1шт.
17
1994890C1
RASP BAR
Rasp, Smooth, Straight
4шт.
18
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
24шт.
19
396-41041
WASHER,13/32" x 1 1/8" x .134", HDN
24шт.
20
232-4136
LOCK NUT,3/8"-16, GC
24шт.
Used with 256608A1
1шт.
21
1324580C2
BAR
Rear, Straight, Chrome
4шт.
Used with 256614A1
1шт.
86990684
KIT
Kit, Rotor Drive Spacer, Includes 22, 22A, Start Serial: JJC0273000
1шт.
22
NSS
NOT SOLD SEPARAT
Spacer
1шт.
22a
326-880
BOLT,Hex, 1/2" - 13 x 5", Gr 8
6шт.
23
409-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl
28шт.
24
231-5146
FLANGE NUT,3/8"-16
28шт.
25
1345307C1
COUPLING
17 Internal Teeth
1шт.
26
326-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8
6шт.
27
396-41053
WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk
6шт.
28
195-81030
WASHER
17/32" x 1-1/2" x 3/16"
6шт.
29
1309186C3
SUPPORT
Wear
2шт.
30
221189A1
SPACER
1шт.
31
492-11075
LOCK WASHER,3/4"
1шт.
32
70330C1
WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk
25/32" x 2-1/2" x 1/4"
1шт.
33
495-81097
WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk
1шт.
34
193282C91
BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm
1шт.
35
253439A3
BEARING HOUSING
1шт.
36
477-73820
SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"
2шт.
37
231-5146
FLANGE NUT,3/8"-16
2шт.
39
231-5146
FLANGE NUT,3/8"-16
2шт.
40
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
3шт.
41
80679
LOCK WASHER,1/20.507 CST ZND
3шт.
42
425-108
NUT,1/2" - 13, Gr 5
3шт.
43
183449C1
WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk
1шт.
44
219-418
ADAPTER,1/4"-1/8 NPTF
Hose
1шт.
45
1979965C1
ROTOR
1шт.
46
1301239C1
BRACKET
1шт.
47
182845C5
SHIELD
1шт.
48
409-7612
BOLT,3/8"-16 x 1.09" OAL
3шт.
49
193384C8
SUPPORT
1шт.
50
131-872
SPRING NUT,Ret, 3/8"-16
3шт.
51
360-820
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8
8шт.
52
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
8шт.
53
231848A1
RETAINER
1шт.
54
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
1шт.
54a
231849A2
DOOR SEAL,995mm L
1шт.
55
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
1324208C1
SHIM KIT
Includes 56
1шт.
56
NSS
NOT SOLD SEPARAT
Shim, 0.254 mm (0.010 in)
28шт.
56
NSS
NOT SOLD SEPARAT
Shim, 0.762 mm (0.030 in)
28шт.
56
NSS
NOT SOLD SEPARAT
Shim, 1.346 mm (0.053 in)
28шт.
56
NSS
NOT SOLD SEPARAT
Shim, 2.362 mm (0.093 in)
28шт.
57
424-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2
1шт.
58
183335C3
SUPPORT
Extension, Rotor Rear Bar
4шт.
59
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
60
419744A1
BRACKET
1шт.
61
937781R92
HOSE,3.02mm ID x 686mm L
1шт.
62
F53473
LOCK NUT,1/8-27 NPSM
1/8"
1шт.
63
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
5шт.
64
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
5шт.
Выбрано товаров: 87
