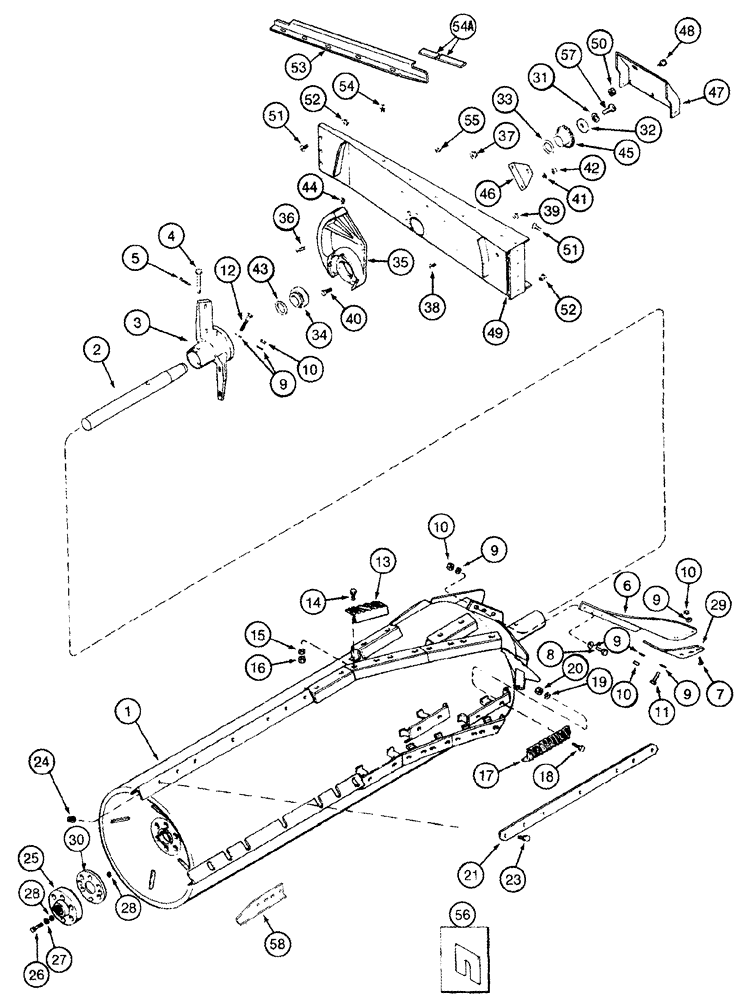

Запчасти Case IH 2388 (09B-05[01]) - ROTOR ASSY - CORN AND GRAIN, BSN JJC0272999 (14) - ROTOR, CONCANVES & SIEVE

256608A1

ROTOR

Standard Grain, Includes 1 - 30

1шт.

256614A1

ROTOR

Standard Grain, Includes 1 - 30

1шт.

With Chrome Bars

1шт.

1

NSS

NOT SOLD SEPARAT

Rotor

1шт.

2

191545C2

SHAFT

1шт.

3

184460C1

IMPELLER

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

Rotor Blade, Includes 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

Blade, Rotor

2шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

6шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

26шт.

10

199528A1

NUT

1/2; 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1308830C2

RASP BAR

16шт.

13

1324581C3

RASP BAR

Chrome

16шт.

13

1994892C1

RASP BAR

Smooth, Helical

16шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

32шт.

16

232-4136

LOCK NUT,3/8"-16, GC

32шт.

17

1308668C1

RASP BAR

12шт.

17

1324582C2

RASP BAR

Chrome

12шт.

17

1994890C1

RASP BAR

Smooth, Straight

4шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

19

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

24шт.

20

232-4136

LOCK NUT,3/8"-16, GC

24шт.

21

1303038C2

BAR

4шт.

Used with 256608A1

1шт.

21

1324580C2

BAR

Chrome

4шт.

Used with 256614A1

1шт.

23

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

28шт.

24

231-5146

FLANGE NUT,3/8"-16

28шт.

25

1345307C1

COUPLING

17 Internal Teeth

1шт.

26

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

27

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

6шт.

28

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32" x 1-1/2" x 1/8"

6шт.

29

1309186C3

SUPPORT

2шт.

30

221189A1

SPACER

1шт.

31

492-11075

LOCK WASHER,3/4"

1шт.

32

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

25/32" x 2-1/2" x 1/4"

1шт.

33

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

34

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

35

253439A3

BEARING HOUSING

Replaces 1309076C1

1шт.

36

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

42

425-108

NUT,1/2" - 13, Gr 5

3шт.

43

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

1шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

45

1979965C1

ROTOR

1шт.

46

1301239C1

BRACKET

1шт.

47

182845C4

SHIELD

1шт.

48

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

49

193384C8

SUPPORT

1шт.

50

131-872

SPRING NUT,Ret, 3/8"-16

3шт.

51

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

8шт.

52

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

53

231848A1

RETAINER

1шт.

54

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

54a

231849A2

DOOR SEAL,995mm L

1шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

1324208C1

SHIM KIT

Includes 56

1шт.

56

NSS

NOT SOLD SEPARAT

Shim

28шт.

56

NSS

NOT SOLD SEPARAT

Shim

28шт.

56

NSS

NOT SOLD SEPARAT

Shim

28шт.

56

NSS

NOT SOLD SEPARAT

Shim

28шт.

57

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

58

183335C3

SUPPORT

Rotor Rear Bar

3шт.
