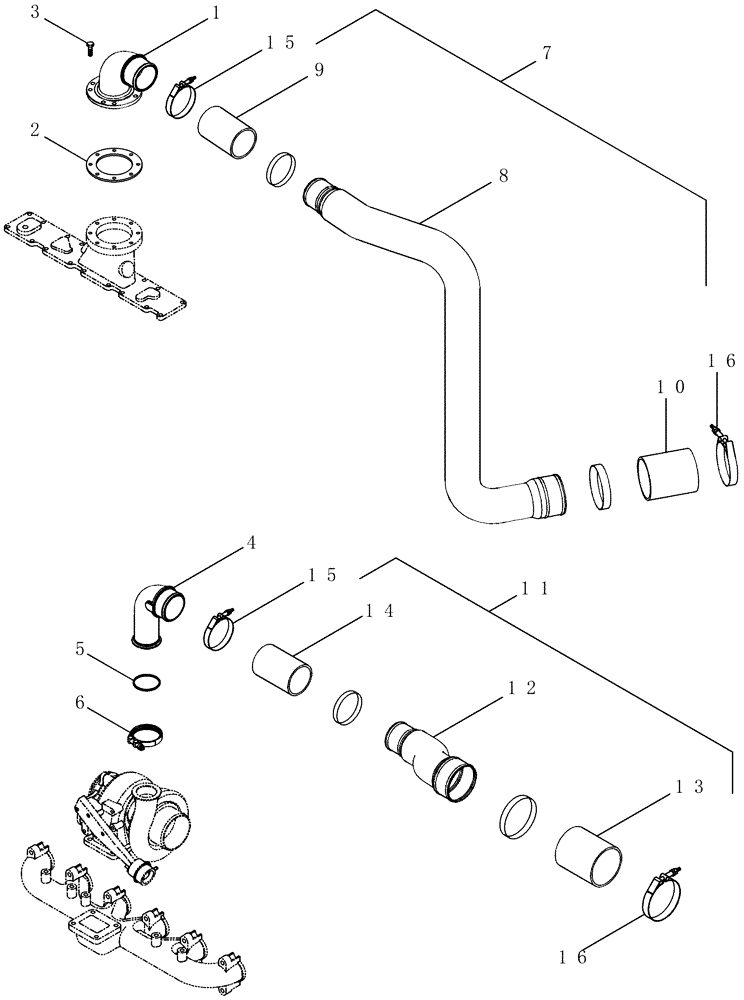

Запчасти Case IH 2388 (02-16) - INTAKE SYSTEM, CHARGE AIR COOLER - ASN JJC0273000 (01) - ENGINE

1

87404219

ELBOW

Engine Intake Manifold

1шт.

2

J917892

GASKET,0.79mm Thk

1шт.

3

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

4

254609A2

ELBOW

Turbo Outlet

1шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

6

J069053

CLAMP,66.54mm ID

Turbo Outlet

1шт.

7

87404190

TUBE,710, 538mm L

Charge Air Cooler, Cold Side, Includes 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Tube

1шт.

9

87402764

HOSE

3"

1шт.

10

87402762

HOSE

4"

1шт.

11

87404194

TUBE,595mm L

Charge Air Cooler, Hot Side, Includes 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Tube

1шт.

13

87402761

HOSE

4"

1шт.

14

87402763

HOSE

3"

1шт.

15

87421230

CLAMP,82.55mm - 90.42mm

2шт.

16

87420676

HOSE CLAMP,108mm - 115.8mm

4"

2шт.
