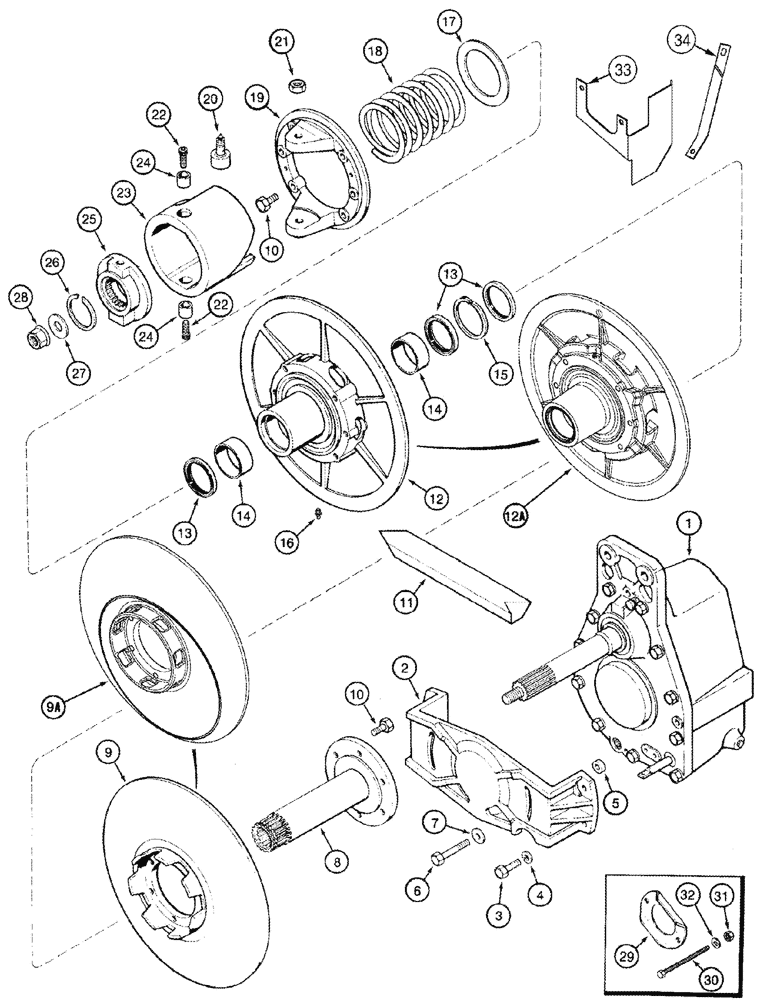

Запчасти Case IH 2388 (09B-02[01]) - ROTOR DRIVE - PULLEY AND CAM - BSN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE

1

237155A5

CASE

Gear, See Figure 09B-04

1шт.

2

194058C1

SUPPORT

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

194077C1

SPACER

Gear Case

2шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

7

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 396-41053

2шт.

8

1315291C2

HUB

Welded

1шт.

8

184489C1

HUB

Machine Forged

1шт.

9

280508A2

PULLEY

Fixed

1шт.

Used with 1315294C7, Ref. 12

1шт.

9a

310884A1

PULLEY

Fixed, Grooved

1шт.

Used with 310886A1, Ref. 12A

1шт.

10

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

11

244423A1

BELT,2615.48 mm L

Rotor Drive, If Used

1шт.

11

244423A3

V-BELT,2615.67 mm L

Rotor Drive, Seamless, If Used

1шт.

12

310886A1

PULLEY

Adjustable, Includes 13 - 16, Replaces 1315294C6

1шт.

Used with 280508A1, Ref. 9

1шт.

12a

310886A1

PULLEY

Adjustable, Grooved, Includes 13 - 16

1шт.

Used with 310884A1, Ref. 9A

1шт.

13

193965C92

SEAL

3шт.

14

NSS

NOT SOLD SEPARAT

Bushing

2шт.

15

537602R1

RING

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

Kit, Includes 13, 14

1шт.

17

1315521C1

THRUST BEARING

Replaces 188210C91

1шт.

18

184486C2

SPRING

400#

1шт.

18a

110844A2

SPRING

500#, Not Illustrated

1шт.

19

1315344C2

HUB

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

2шт.

21

425-1110

NUT,5/8"-18, G5

2шт.

22

194167C1

SCREW,5/8 - 11" x 1"

2шт.

246817A2

CAM

Includes 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Cam

1шт.

24

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

2шт.

25

1315297C2

HUB,20T

1шт.

26

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

57/64" x 1-7/8" x 7/32"

1шт.

28

1315288C1

FLANGE NUT

7/8"

1шт.

29

1315304C3

PLATE

1шт.

30

1319996C3

ROD,Hex, 3/8" -16 x 318mm, Gr 5, W/ Hex Nut

3/8" x 11-1/2"

2шт.

31

429-106

NUT,3/8"-16, G8

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

33

239748A1

DEFLECTOR

Air

1шт.

Note: Directs the air flow from the engine to the bottom of the torque sensing unit.

1шт.

34

338380A1

SUPPORT

Air Deflector

1шт.
