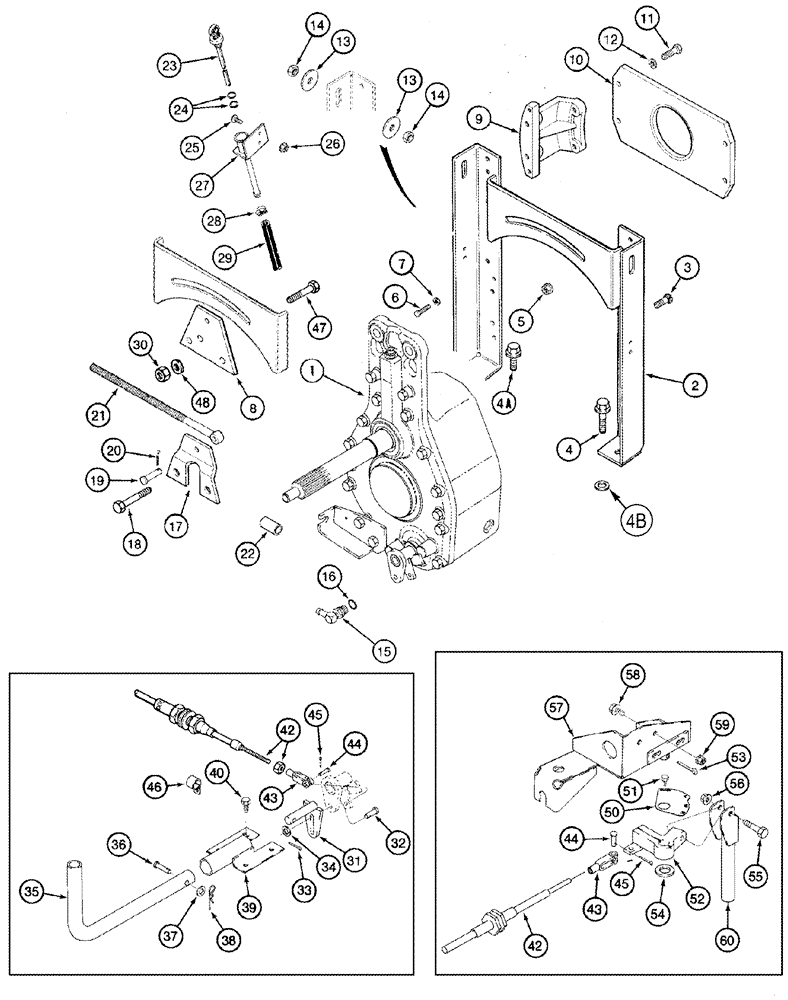

Запчасти Case IH 2388 (09B-01[01]) - ROTOR DRIVE - MOUNTING - BSN JJC0273000 (14) - ROTOR, CONCANVES & SIEVE

1

237155A5

CASE

Gear, See Figure 09B-04

1шт.

2

275499A2

SUPPORT

1шт.

3

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

6шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

4a

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1шт.

4b

495-21069

WASHER,5/8"

1шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

276078A2

PLATE

1шт.

9

181314C2

BLOCK

2шт.

10

181315C1

PLATE

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

495-81030

WASHER,21/32" x 2" x .179"

2шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

Replaces 188272C1

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

282906A1

STRAP

1шт.

18

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

2шт.

19

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

188143C1

EYEBOLT

1шт.

22

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

3/4" ID x 1-3/4"

1шт.

194066C91

DIPSTICK

Includes 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Gauge

1шт.

24

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

193946C1

TUBE,12.7 mm OD

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

29

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

Cut from S118466X

1шт.

30

329-1012

NUT,3/4"-10, G8

3шт.

31

295070A1

CAM

1шт.

32

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

33

432-616

COTTER PIN,3/32" x 1"

1шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

35

291694A2

TUBE,22.48 mm ID, 28.58 mm OD, 350, 200 mm Length

1шт.

36

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

38

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

39

294966A1

GUIDE

1шт.

40

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

4шт.

42

236859A2

CABLE,3810mm L

Includes 43

1шт.

43

213-325

CLEVIS,5/16"

5/16"

2шт.

44

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

45

432-616

COTTER PIN,3/32" x 1"

2шт.

46

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

47

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

1шт.

48

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

1шт.

50

255651A5

PLATE

Shift Indicator

1шт.

51

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

52

254982A2

SHAFT

3 Speed Gearbox

1шт.

53

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

54

495-81037

WASHER,25/32" x 1 1/4" x .060"

1шт.

55

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

57

253851A3

SUPPORT

Front Rotor Shift Support

1шт.

58

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

59

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

60

276073A2

HANDLE

3 Speed Rotor Shift

1шт.
