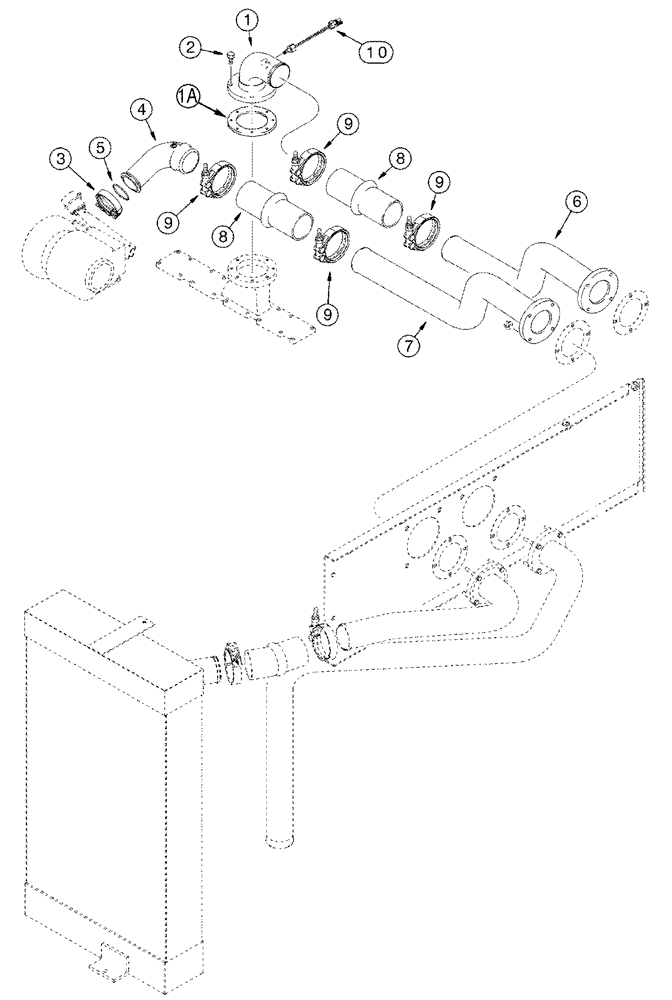

Запчасти Case IH 2388 (02-15) - INTAKE SYSTEM, CHARGE AIR COOLER - BSN JJC0273000 (01) - ENGINE

1

304636A1

ELBOW

Engine Intake Manifold, Replaces 195830A1

1шт.

1a

J917892

GASKET,0.79mm Thk

1шт.

2

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

3

J069053

CLAMP,66.54mm ID

Turbo Outlet

1шт.

4

254609A2

ELBOW

Turbo Outlet

1шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

6

277162A1

TUBE,675.4, 184.8 mm Length

Charge Air Cooler, Cool Side Engine

1шт.

7

277159A1

TUBE,850, 248.5 mm Length

Charge Air Cooler, Hot Side Engine

1шт.

8

197315A1

HOSE

Charge Air Cooler

2шт.

9

292622A1

CLAMP

Replaces J926702

4шт.

10

194346A1

SENSOR

Air to Air Temperature, See Figure 04-05, Serial Range: -JJC0272999

1шт.

10

87300499

SENSOR

Air to Air Temperature, See Figure 04-05, Start Serial: JJC0273000

1шт.
