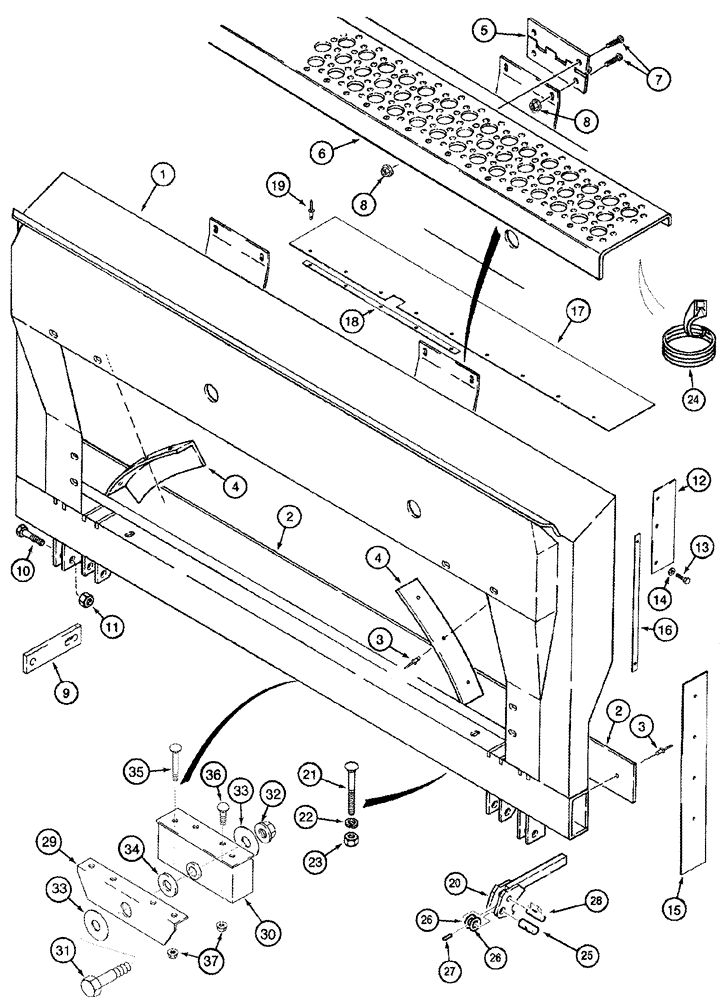

Запчасти Case IH 2388 (09A-31) - FIELD TRACKER® - SUPPORT, HEADER PIVOT BSN JJC0268799 (13) - FEEDER

144255A2

FRAME

Includes 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Support

1шт.

2

100274A1

WEAR PLATE

1шт.

3

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

13шт.

4

100273A1

SUPPORT

2шт.

5

140767A2

HINGE

2шт.

6

140768A4

STEP

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

9

100287A1

STOP

2шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

11

231-4218

LOCK NUT,1/2"-13, GB

4шт.

12

108739A1

RUBBER SEAL,3.17mm Thk

2шт.

13

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

6шт.

14

495-21038

WASHER,5/16"

6шт.

15

108740A1

RUBBER SEAL

2шт.

16

108645A2

STRIP

300 mm (11-13/16")

2шт.

16

226606A2

STRAP

210 mm (8-1/4")

2шт.

16a

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

Not Illustrated

2шт.

17

144934A1

GUARD

2шт.

18

144935A2

STRAP

370 mm (14-9/16")

2шт.

19

390747A1

RIVET

3/16" x 0.78"

26шт.

20

100295A1

HANDLE

2шт.

21

411-572

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 4 1/2", Gr 2

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

2шт.

24

126046A1

GASKET,287.02mm L

292 mm (11-1/2", Cut From 1330108CX

2шт.

25

177141C1

PIN,15.88mm OD x 41mm L

2шт.

26

495-81175

WASHER,21/32" x 1" x .120"

2шт.

27

38-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

28

1338021C1

PIN,7.94mm OD

2шт.

29

240586A2

SUPPORT

1шт.

30

240587A1

SUPPORT

1шт.

31

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

32

232-53116

FLANGE NUT,Flg, 1"-8

1шт.

33

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32" x 2-1/4" x 1/4"

1шт.

34

240613A2

SPACER

2шт.

35

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

36

433-872

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4 1/2", Gr 5

4шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.
