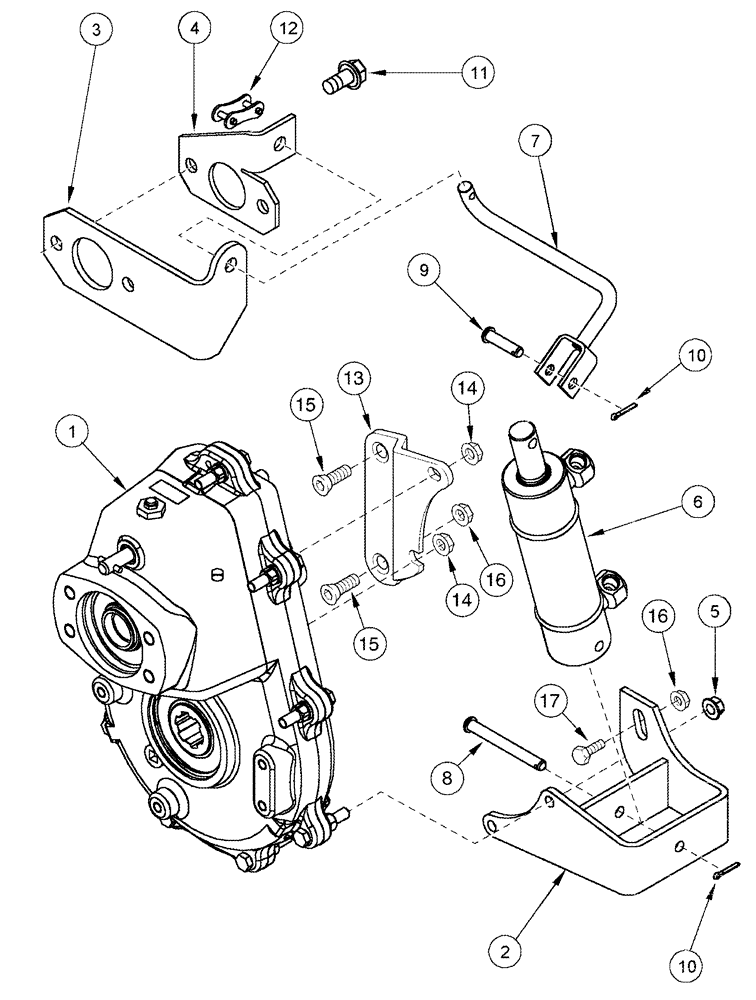

Запчасти Case IH 2388 (09A-28) - GEARBOX ASSY - FEEDER REVERSER ASN JJC0268800 (13) - FEEDER

401134A2

GEARBOX

Includes 1 - 12

1шт.

1

86980131

GEARBOX

See Figure 09A-29

1шт.

1

86980131R

REMAN-GEARBOX

2388 BSN JJC0276540, FEEDER REVERSER ASN JJC0268800 (1/98-8/04)

1шт.

1

86980131C

CORE-GEARBOX

Return Number

1шт.

2

405720A1

SUPPORT

1шт.

3

388772A1

BRACKET

1шт.

4

388773A1

BRACKET

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

382543A1

CYLINDER

Clutch

1шт.

6

87449896R

REMAN-HYD CYLINDER

Remanufactured Clutch Cylinder

1шт.

6

87449896C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH

1шт.

7

391768A1

ROD

1шт.

8

439-1656

HEADED PIN,3/8" x 3 1/2"

1шт.

9

439-5624

HEADED PIN,3/8" x 1 1/2"

1шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

12

242-1410

LINK CHAIN

1шт.

13

405718A1

SUPPORT

1шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

17

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.
