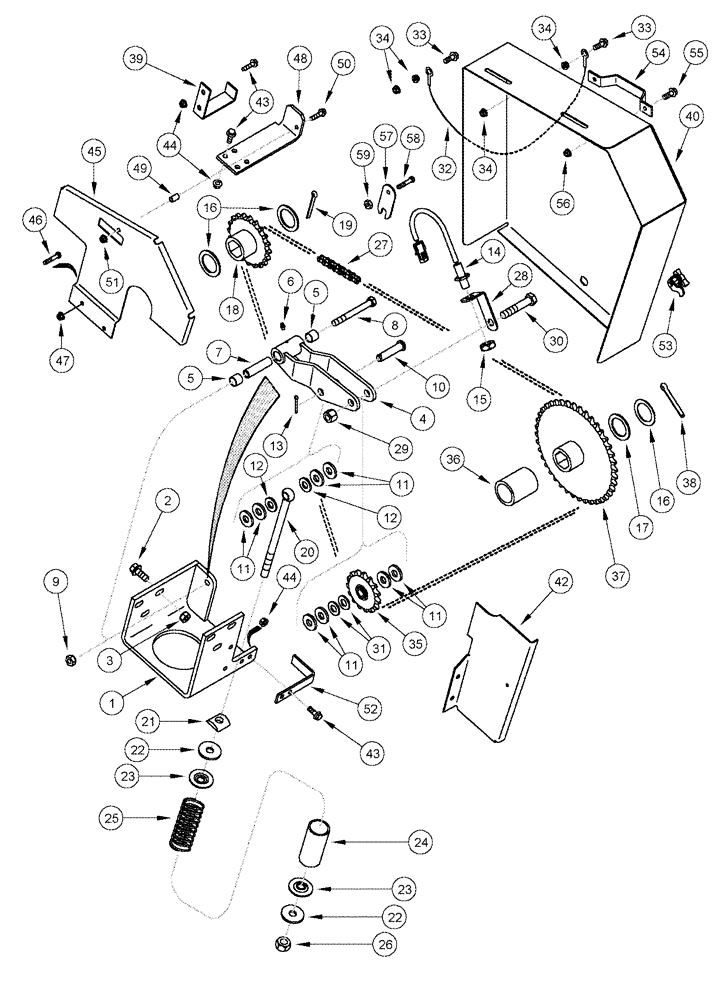

Запчасти Case IH 2388 (09A-26) - ROCK TRAP DRIVE ASN JJC0268800 (13) - FEEDER

1

390744A2

SUPPORT

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

4

390737A1

ARM

Includes 5

1шт.

5

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

19 mm (3/4") dia

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

7

390822A1

BUSHING,12.95mm ID x 18.9mm OD x 71.5mm L

1шт.

8

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

10

439-11044

HEADED PIN,5/8" x 2 3/4", G2

1шт.

11

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

9шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

13

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

14

REF

INSTRUCTION

SENSOR, Feeder Speed, See Figure 04-01

1шт.

15

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

16

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

1шт.

17

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1шт.

18

1329719C2

SPROCKET

20T, Beater Driven

1шт.

18

125407A1

SPROCKET

30T, Beater Driven

1шт.

19

432-2040

COTTER PIN,5/16" x 2 1/2"

2шт.

20

390871A1

EYEBOLT

BOLT, EYE

1шт.

21

390870A1

PIVOT

1шт.

22

495-81030

WASHER,21/32" x 2" x .179"

2шт.

23

394120A1

SPRING WASHER

2шт.

24

390869A1

SPACER,40.96mm ID x 48.3mm OD x 105mm L

1шт.

25

390872A1

SPRING

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

390967A1

CHAIN,60, 66 Links x 19.05mm = 1257.3mm

49-1/2", 66 links

1шт.

111716A1

CHAIN,#60, 3 Links x 19.05mm = 57.15mm

3 Link Extension

1шт.

111714A1

LINK,Connecting

Connecting Link

1шт.

28

394014A1

BRACKET

1шт.

29

232-41110

NUT,5/8"-11, GC

1шт.

30

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

31

495-11066

WASHER,5/8", SAE

4шт.

32

132657A2

CABLE

1шт.

33

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

35

541857R92

SPROCKET,15T

15T, Idler

1шт.

36

584608R1

SPACER

86 mm (3-3/8")

1шт.

37

1329720C2

SPROCKET

40T, Driven

1шт.

38

432-2440

COTTER PIN,3/8" x 2 1/2"

1шт.

39

132685A2

SUPPORT

1шт.

40

391651A1

SHIELD

Feeder Reverser

1шт.

42

391656A1

SHIELD

Lower

1шт.

43

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

43

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

45

405570A1

SHIELD

Upper, Includes Decal, See Figure 09H-23, Ref. 9

1шт.

46

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

48

138185A3

SUPPORT

Upper

1шт.

49

61851V

SPACER,1/4" Pipe x 3/4"

1шт.

50

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

52

391658A1

BRACKET

Lower Front

1шт.

53

138699A1

LOCK

1шт.

53

135476A1

LOCK

Australia Only

1шт.

54

160638C2

HANDLE

1шт.

55

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

57

399382A1

SHIM

1шт.

58

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

59

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
